MQTT Development Guide_Rev1.3
Revision History
Version |
Date |
Author |
Revision Content |
|---|---|---|---|
Rev1.0 |
23-09-11 |
TL |
Initial document creation |
Rev1.1 |
24-03-25 |
sxx |
Changed document name |
Rev1.2 |
24-05-01 |
YMX |
Adjusted document structure, optimized some text descriptions |
Rev1.3 |
26-01-16 |
lxh |
Added new interfaces |
1 Introduction
This document introduces the LTE-EC71x MQTT interface APIs. The API interfaces are declared in the file components/kernel/lierda_api/liot_mqtt/liot_mqtt_client.h.
The latest SDK of LTE-EC71x series modules supports 6 MQTT channels.
2 API Function Overview
Function |
Description |
|---|---|
|
Initialize MQTT client resources and create a new MQTT client handle |
|
Initialize MQTT client resources and create a new MQTT client handle (this is a new interface, can only choose one with liot_mqtt_client_init(), this interface unifies all callback functions into one callback function, only need to register one callback function) |
|
Configure MQTT context and establish connection with server |
|
Publish message to specified topic |
|
Subscribe/unsubscribe topic |
|
Disconnect |
|
Set callback function for receiving messages published by server |
|
Query MQTT connection status |
|
Release MQTT client resources |
|
Send ping message |
|
Get OneNET platform token, only for specific OneNET cloud platform |
|
Get MQTT state |
3 Type Descriptions
3.1 liot_mqtt_error_code_e
MQTT API execution result error codes.
Declaration
typedef enum
{
LIOT_MQTTCLIENT_SUCCESS = 0,
LIOT_MQTTCLIENT_INVALID_PARAM = -1,
LIOT_MQTTCLIENT_WOUNDBLOCK = -2,
LIOT_MQTTCLIENT_OUT_OF_MEM = -3,
LIOT_MQTTCLIENT_ALLOC_FAIL = -4,
LIOT_MQTTCLIENT_TCP_CONNECT_FAIL = -5,
LIOT_MQTTCLIENT_NOT_CONNECT = -6,
LIOT_MQTTCLIENT_SEND_PKT_FAIL = -7,
LIOT_MQTTCLIENT_BAD_REQUEST = -8,
LIOT_MQTTCLIENT_TIMEOUT = -9,
} liot_mqtt_error_code_e;
Parameters
LIOT_MQTTCLIENT_SUCCESS: Function executed successfully.
LIOT_MQTTCLIENT_INVALID_PARAM: Invalid input parameter.
LIOT_MQTTCLIENT_WOUNDBLOCK: Operation is being executed, waiting for result.
LIOT_MQTTCLIENT_OUT_OF_MEM: Insufficient memory.
LIOT_MQTTCLIENT_ALLOC_FAIL: Memory allocation error.
LIOT_MQTTCLIENT_TCP_CONNECT_FAIL: TCP connection establishment failed.
LIOT_MQTTCLIENT_NOT_CONNECT: MQTT session not established.
LIOT_MQTTCLIENT_SEND_PKT_FAIL: Failed to send request.
LIOT_MQTTCLIENT_BAD_REQUEST: Bad request.
LIOT_MQTTCLIENT_TIMEOUT: Timeout error.
3.2 liot_mqtt_event_code_e
Event return values for the new interface liot_mqtt_client_init_ex callback function
Declaration
enum MQTT_EVENT_STATUS
{
LIOT_MQTT_OPEN_EVENT, /*<!open event*/
LIOT_MQTT_CONNECT_EVENT, /*<!connect event*/
LIOT_MQTT_RECONNECT_EVENT, /*<!reconnect event*/
LIOT_MQTT_PUB_EVENT, /*<!publish event*/
LIOT_MQTT_SUB_EVENT, /*<!subscribe event*/
LIOT_MQTT_UNSUB_EVENT, /*<!unsubscribe event*/
LIOT_MQTT_CLOSE_EVENT, /*<!close event*/
LIOT_MQTT_DISCONNECT_EVENT, /*<!disconnect event*/
LIOT_MQTT_PUBLISH_EVENT, /*<!publish message event*/
}liot_mqtt_event_code_e;
Parameters
LIOT_MQTT_OPEN_EVENT: Open event
LIOT_MQTT_CONNECT_EVENT: Connect event
LIOT_MQTT_RECONNECT_EVENT: Reconnect event
LIOT_MQTT_PUB_EVENT: Publish event
LIOT_MQTT_SUB_EVENT: Subscribe event
LIOT_MQTT_UNSUB_EVENT: Unsubscribe event
LIOT_MQTT_CLOSE_EVENT: Close event
LIOT_MQTT_DISCONNECT_EVENT: Disconnect event
LIOT_MQTT_PUBLISH_EVENT: Receive data event
3.3 liot_mqtt_state_code_e
MQTT connection state
Declaration
enum MQTT_STATE { MQTT_CONN_DEFAULT, /*<!default state*/ MQTT_CONN_NOT_OPEN, /*<!not open*/ MQTT_CONN_IS_OPENING, /*<!is opening*/ MQTT_CONN_OPENED, /*<!opened*/ MQTT_CONN_OPEN_FAIL, /*<!open fail*/ MQTT_CONN_IS_CONNECTING, /*<!is connecting*/ MQTT_CONN_CONNECTED, /*<!connected*/ MQTT_CONN_CONNECT_FAIL, /*<!connect fail*/ MQTT_CONN_IS_CLOSING, /*<!is closing*/ MQTT_CONN_CLOSED, /*<!closed*/ MQTT_CONN_CLOSED_FAIL, /*<!closed fail*/ MQTT_CONN_IS_DISCONNECTING, /*<!is disconnecting*/ MQTT_CONN_DISCONNECTED, /*<!disconnected*/ MQTT_CONN_DISCONNECTED_FAIL, /*<!disconnected fail*/ MQTT_CONN_RECONNECTING, /*<!reconnecting*/ MQTT_CONN_RECONNECTING_FAIL, /*<!reconnecting fail*/ }liot_mqtt_state_code_e;
Parameters
MQTT_CONN_DEFAULT: MQTT connection default parameter state
MQTT_CONN_NOT_OPEN: Not opened state
MQTT_CONN_IS_OPENING: Opening state
MQTT_CONN_OPENED: Opened
MQTT_CONN_OPEN_FAIL: Open failed
MQTT_CONN_IS_CONNECTING: MQTT connecting
MQTT_CONN_CONNECTED: Connected
MQTT_CONN_CONNECT_FAIL: Connect failed
MQTT_CONN_IS_CLOSING: MQTT closing
MQTT_CONN_CLOSED: Closed
MQTT_CONN_CLOSED_FAIL: Close failed
MQTT_CONN_IS_DISCONNECTING: MQTT disconnecting
MQTT_CONN_DISCONNECTED: Disconnected
MQTT_CONN_DISCONNECTED_FAIL: Disconnect failed
MQTT_CONN_RECONNECTING: MQTT reconnecting
MQTT_CONN_RECONNECTING_FAIL: Reconnect failed
3.4 liot_mqtt_client_t
MQTT client handle.
Declaration
typedef int liot_mqtt_client_t;
Parameters
liot_mqtt_client_t: MQTT client handle. Obtained from liot_mqtt_client_init(), initial value must be 0.
3.5 liot_mqtt_connection_cb_t
This callback function is called by the kernel to notify the application layer of MQTT CONNECT request results.
Declaration
typedef void (*liot_mqtt_connection_cb_t)(liot_mqtt_client_t *client, void *arg, int status);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
arg: [In] Callback parameter. Passed from liot_mqtt_connect().
status: [In] Execution result code, see 3.1 for reference.
3.6 liot_mqtt_client_option_t
MQTT client information structure is defined as follows
Declaration
typedef struct liot_mqtt_client_option_t
{
unsigned char version;
int pdp_cid;
char *client_id;
char *client_user;
char *client_pass;
unsigned char ssl_enable;
void *ssl_ctx;
struct liot_mqtt_ssl_config_t *ssl_cfg;
unsigned char clean_session;
unsigned short kalive_time;
unsigned char delivery_time;
unsigned char delivery_cnt;
unsigned char will_flag;
unsigned char will_qos;
unsigned char will_retain;
char will_topic[257];
char will_message[257];
unsigned char ping_timeout;
} liot_mqtt_client_option;
Parameters
Type |
Parameter |
Description |
|---|---|---|
unsigned char |
version |
MQTT version; |
int |
pdp_cid |
Activated data channel ID |
char * |
client_id |
Client ID |
char * |
client_user |
Username carried in CONNECT request; if none, set to NULL |
char * |
client_pass |
Password carried in CONNECT request; if none, set to NULL |
unsigned char |
ssl_enable |
MQTT SSL control |
void * |
ssl_ctx |
SSL context (currently not supported) |
struct liot_mqtt_ssl_config_t * |
ssl_cfg |
MQTT SSL configuration; see section ; |
unsigned char |
clean_session |
0 means enable MQTT session reuse mechanism, server retains session including subscribed topics; |
unsigned short |
kalive_time |
Keep-alive interval between client and server; unit: seconds (recommended 30~300) |
unsigned char |
delivery_time |
Send timeout time; unit: seconds |
unsigned char |
delivery_cnt |
Number of resend attempts on send timeout |
unsigned char |
will_flag |
Will message control, only effective when will_flag is true |
unsigned char |
will_qos |
QoS level of MQTT will message |
unsigned char |
will_retain |
After will message is published by server, if will_retain is True, |
char |
will_topic[257] |
MQTT will topic; if none, set to NULL, only effective when will_flag is true |
char |
will_message[257] |
MQTT will message; if none, set to NULL |
unsigned char |
ping_timeout |
Ping packet timeout time; unit: seconds |
3.7 liot_mqtt_ssl_config_t
MQTT SSL configuration structure is defined as follows
Declaration
struct liot_mqtt_ssl_config_t{
int ssl_ctx_id;
int verify_level;
char *cacert_path;
char *client_cert_path;
char *client_key_path;
char *client_key_pwd;
int ssl_version;
int sni_enable;
int ssl_negotiate_timeout;
int ignore_invalid_certsign;
int ignore_multi_certchain_verify;
uint32_t ignore_certitem;
char *cacert_buffer;
bool client_cert_type;
};
Parameters
Type |
Parameter |
Description |
|---|---|---|
int |
ssl_ctx_id |
SSL context ID |
int |
verify_level |
SSL verification level |
char * |
cacert_path |
CA certificate path |
char * |
client_cert_path |
Client certificate path |
char * |
client_key_path |
Client private key file path |
char * |
client_key_pwd |
Client private key file encryption password |
int |
ssl_version |
SSL version level |
int |
sni_enable |
SNI enable flag |
int |
ssl_negotiate_timeout |
SSL negotiation timeout (not supported) |
int |
ignore_invalid_certsign |
Ignore invalid certificate (not supported) |
int |
ignore_multi_certchain_verify |
Ignore multi-certificate chain verification (not supported) |
uint32_t |
ignore_certitem |
Ignore certificate (not supported) |
char * |
cacert_buffer |
Client certificate buffer (not supported) |
bool |
client_cert_type |
SSL certificate import mode |
3.8 liot_mqtt_request_cb_t
This callback function is called by the kernel to notify the application layer of MQTT subscribe, unsubscribe and PUBLISH request results.
Declaration
typedef void (*liot_mqtt_request_cb_t)(mqtt_client_t *client, void *arg, int err);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
arg: Callback parameter. Passed from liot_mqtt_sub_unsub() and liot_mqtt_publish().
err: [In] Execution result code, see 3.1 for reference.
3.9 liot_mqtt_incoming_publish_cb_t
This callback function is called by the kernel to notify the application layer of received publish messages
Declaration
typedef void (*liot_mqtt_incoming_publish_cb_t)(mqtt_client_t *client, void *arg, int pkt_id, const char *topic, const unsigned char *payload, unsigned short payload_len);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
arg: [In] Callback parameter. Passed from liot_mqtt_set_inpub_callback().
pkt_id: [In] Publish message ID.
topic: [In] Topic associated with publish message.
payload: [In] Message body of publish message.
payload_len: [In] Message body length of publish message
3.10 liot_mqtt_disconnect_cb_t
This callback function is called by the kernel to notify the application layer of MQTT DISCONNECT request results.
Declaration
typedef void (*liot_mqtt_disconnect_cb_t)(mqtt_client_t *client, void *arg, int err);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
arg: [In] Callback parameter. Passed from liot_mqtt_connect().
err: [In] Execution result code, see 3.1 for reference.
3.11 liot_mqtt_state_exception_cb_t
This callback function is called by the kernel to notify the application layer of abnormal disconnection of MQTT session connection. For example, network drop or keep-alive timeout causes MQTT session connection to disconnect.
Declaration
typedef void(*liot_mqtt_state_exception_cb_t)(mqtt_client_t *client);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
3.12 liot_mqtt_event_cb_t
This function is the callback function for the new interface liot_mqtt_client_init_ex. After using this callback function, other MQTT-related callback functions do not need to be filled in. The callback functions for MQTT connection, publish/subscribe, unsubscribe, reconnect and other interfaces are all NULL
Declaration
typedef void (*liot_mqtt_event_cb_t)(liot_mqtt_client_t *client, int event, void *arg, void *data);
Parameters
client: [out] MQTT client handle. Obtained from liot_mqtt_client_init().
cid: [out] MQTT network connection cid
4 API Function Details
4.1 liot_mqtt_client_init
This function is used to initialize MQTT client resources and create a new MQTT client handle. If calling liot_mqtt_client_init_ex function, this function does not need to be called, only one can be chosen.
Declaration
int liot_mqtt_client_init(liot_mqtt_client_t *client, int cid);
Parameters
client: [Out] MQTT client handle. Initial value is 0.
cid: [In] Data channel number, need to pass active cid, should be filled as 1.
Return Value
int: 0 success, non-0 failure; execution result code, see 3.1 for reference.
4.2 liot_mqtt_connect
This function is used to send CONNECT request to server and establish MQTT session connection between client and server.
Declaration
int liot_mqtt_connect(liot_mqtt_client_t *client,
const char *host,
liot_mqtt_connection_cb_t cb,
void *arg,
liot_mqtt_client_option *client_info,
liot_mqtt_state_exception_cb_t exp_cb);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
host: [In] MQTT server address;
Start with mqtt:// or mqtts://
mqtt://220.180.239.212:8306
mqtts://220.180.239.212:8307
cb: [in] CONNECT request result callback function (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
arg: [in] Callback parameter for CONNECT request result callback function.
client_info: [in] MQTT client information (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
exp_cb: [in] Callback function for abnormal disconnection of MQTT session connection.
Return Value
int: Execution result code, see 3.1 for reference.
4.3 liot_mqtt_publish
This function is used to publish messages to specified topic.
Declaration
int liot_mqtt_publish(liot_mqtt_client_t *client,
const char *topic,
const void *payload,
unsigned short payload_length,
unsigned char qos,
unsigned char retain,
liot_mqtt_request_cb_t cb,
void *arg);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
topic: [In] Topic for publishing message.
payload: [in] Message to publish.
payload_length: [in] Length of message to publish.
qos: [in] QoS level of publish message.
retain: [in] Whether to retain the published message.
1: Message is stored on server after publishing;
0: Message is deleted immediately after publishing.
cb: [in] Callback function for PUBLISH request result (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
arg: [in] Callback parameter for PUBLISH request result callback function.
Return Value
int: Execution result code, see 3.1 for reference.
4.4 liot_mqtt_sub_unsub
This function is used to subscribe/unsubscribe to specified topic.
Declaration
int liot_mqtt_sub_unsub(liot_mqtt_client_t *client,
const char *topic,
unsigned char qos,
liot_mqtt_request_cb_t cb,
void *arg,
unsigned char sub);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
topic: [In] Topic name to subscribe or unsubscribe.
qos: [in] QoS quality level.
cb: [in] Callback function for subscribe/unsubscribe result (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
arg: [in] Custom parameter for MQTT subscribe/unsubscribe topic.
sub: [in] Operation type.
1: Subscribe
0: Unsubscribe
Return Value
int: Execution result code, see 3.1 for reference.
4.5 liot_mqtt_disconnect
This function is used to send DISCONNECT request to server and disconnect MQTT session connection between MQTT client and server.
Declaration
int liot_mqtt_disconnect(liot_mqtt_client_t *client, liot_mqtt_disconnect_cb_t cb, void *arg);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
cb: [In] DISCONNECT request result callback function (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
arg: [in] Callback parameter for DISCONNECT request result callback function
Return Value
int: Execution result code, see 3.1 for reference.
4.6 liot_mqtt_set_inpub_callback
This function is used to set callback function for receiving messages published by server (if calling liot_mqtt_client_init_ex to register callback function, this parameter can be NULL).
Declaration
int liot_mqtt_set_inpub_callback(liot_mqtt_client_t *client, liot_mqtt_incoming_publish_cb_t inpub_cb, void *arg);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
inpub_cb: [In] Callback function for receiving messages published by server.
arg: [in] Parameter for callback function of receiving messages published by server.
Return Value
int: Execution result code, see 3.1 for reference.
4.7 liot_mqtt_client_is_connected
This function is used to query whether session connection between client and server has been established.
Declaration
int liot_mqtt_client_is_connected(liot_mqtt_client_t *client);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
Return Value
int: Execution result code, see 3.1 for reference.
4.8 liot_mqtt_client_deinit
This function is used to release MQTT client resources.
Declaration
int liot_mqtt_client_deinit(liot_mqtt_client_t *client);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
Return Value
int: Execution result code, see 3.1 for reference.
4.9 liot_mqtt_pingreq
This function is used to send ping request to MQTT server.
Declaration
int liot_mqtt_pingreq(liot_mqtt_client_t *client);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
Return Value
int: Execution result code, see 3.1 for reference.
4.10 liot_onenet_generate_auth_token
This function is used to generate connection password for OneNET platform, using HMACSHA256 signature algorithm.
Declaration
char *liot_onenet_generate_auth_token(INT64 expire_time,
const char *product_id,
const char *device_name,
const char *version,
const char *device_access_key);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
product_id: [In]
device_name: [In]
version: [In]
device_access_key: [In]
Return Value
char: Execution result code.
Non-NULL: Success, need to use free() to release space after execution
NULL: Failed to get token
4.11 liot_mqtt_client_state
Get MQTT state
Declaration
int liot_mqtt_client_state(liot_mqtt_client_t *client);
Parameters
client: [In] MQTT client handle. Obtained from liot_mqtt_client_init().
Return Value
int: MQTT current state code, see 3.3 for specific state codes
4.12 liot_mqtt_client_init_ex
This function is used to initialize MQTT client resources and create a new MQTT client handle. When calling this interface function to create MQTT handle, MQTT only needs to register one callback function, no need to register multiple callback functions
Declaration
int liot_mqtt_client_init_ex(liot_mqtt_client_t *client, int cid, liot_mqtt_event_cb_t event_cb, void *arg);
Parameters
client: [Out] MQTT client handle. Initial value is 0.
cid: [In] Data channel number, need to pass active cid, fill in corresponding value according to network dial-up cid.
event_cb: [in] Registered MQTT callback function, after registering this callback function, no need to register other callback functions
arg: [in] Parameter for event_cb callback function
Return Value
int: 0 success, non-0 failure; execution result code, see 3.1 for reference
5 Code Example
Sample code reference: examples/demo/src/demo_mqtt_ali.c file.
MQTT client initialization using
liot_mqtt_client_init_ex()Connection to Alibaba Cloud IoT platform
Topic subscription and unsubscription
Message publishing
Automatic reconnection mechanism
Event callback handling for all MQTT operations

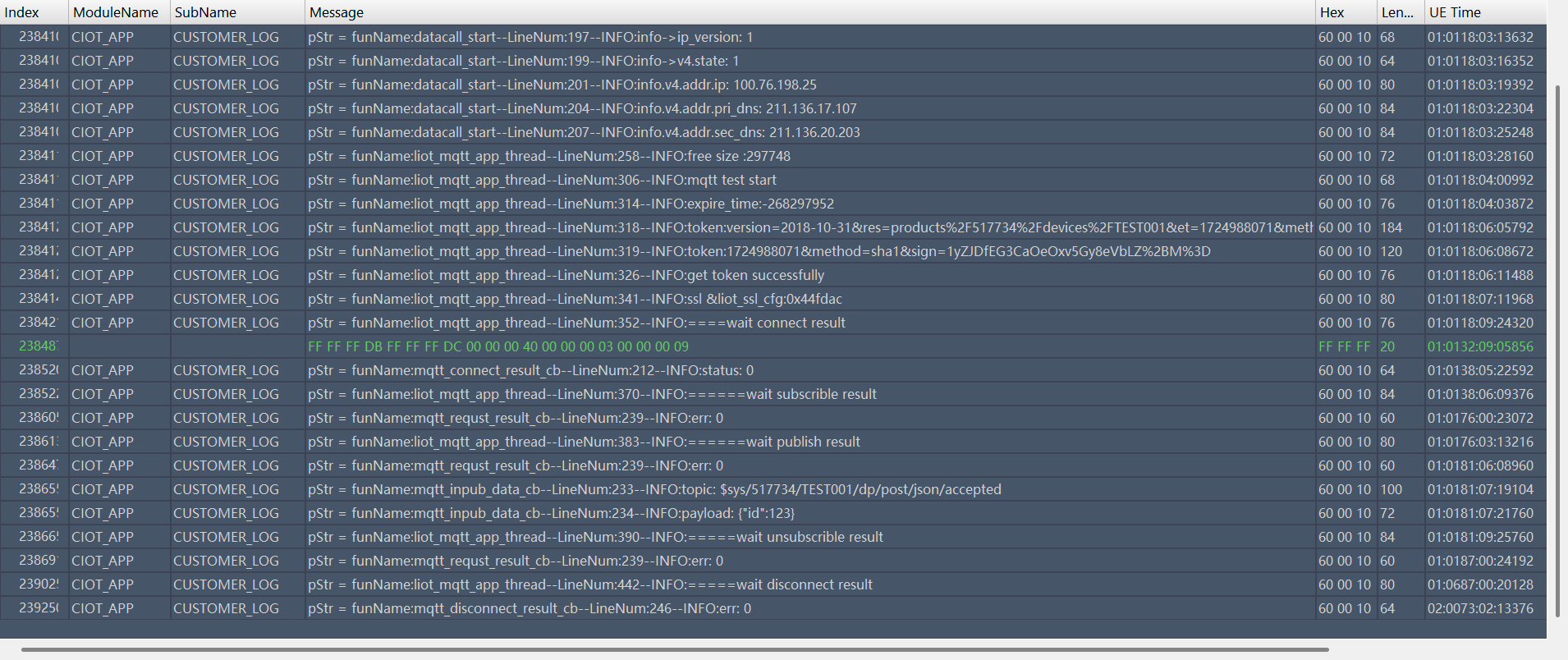

Sample Execution Result:
As shown in the figure above, the connection to Alibaba Cloud platform is successful, subscription/unsubscription operations succeed, and data is successfully received. MQTT communication is working normally. 示例代码参考 examples/demo/src/demo_mqtt_ali.c 文件。
/
* @File Name: demo_mqtt_ali.c
* @brief
* @Author : L email:ciot_iot_support@lierda.com
* @Version : 1.1
* @Creat Date : 2025-12-29
*
* @copyright Copyright (c) 2023 Lierda.com Inc. All rights reserved.
*
* @note : The function implemented by this file is to realize MQTT publishing,
* subscribing and other functions using MQTT API and Alibaba Cloud IOT.
* It connects to devices via two MQTT channels, and the device connection method adopts the "one product one secret" approach.
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "lierda_app_main.h"
#include "liot_datacall.h"
#include "liot_os.h"
#include "liot_type.h"
#include "liot_fs_api.h"
#include "liot_http.h"
#include "liot_mqtt_client.h"
#include "cms_util.h"
#ifdef FEATURE_MQTT_TLS_ENABLE
#include "sha256.h"
#endif
#include "cJSON.h"
#include "liot_nv.h"
#include "liot_fs_api.h"
#include "liot_nw.h"
#include "liot_ssl.h"
#define PRODUCTKEY_MAXLEN (20)
#define DEVICENAME_MAXLEN (32)
#define DEVICESECRET_MAXLEN (65)
#define SIGN_SOURCE_MAXLEN (200)
#define CLIENTID_MAXLEN (150)
#define USERNAME_MAXLEN (64)
#define PASSWORD_MAXLEN (65)
#define ALI_PRODUCT_SECRET "CUCCrRl7NFRo79fK"
#define ALI_PRODUCT_KEY "a1HjUZZgbcB"
#define ALI_DEVICE_NAME1 "IOT-38"
#define ALI_DEVICE_NAME2 "IOT-39"
// #define MQTT_CLIENT_IDENTITY "866179061276528|securemode=2,signmethod=hmacsha1,timestamp=4070880000000|"
// #define MQTT_CLIENT_USER "866179061276528&hf05listj7l"
// #define MQTT_CLIENT_PASS "da4a91865e995fc663fb9286c05d956026c52a0b"
//HTTP request url
#define HTTP_UARL "https://iot-auth.cn-shanghai.aliyuncs.com/auth/register/device"
char* authType = "register";
#define LIOT_NV_MQTT1_CFG "liot_nv_mqtt1_cfg.nvm"
#define LIOT_NV_MQTT2_CFG "liot_nv_mqtt2_cfg.nvm"
#define PRODUCTKEY_MAXLEN (20)
#define DEVICENAME_MAXLEN (32)
#define DEVICESECRET_MAXLEN (65)
#define SIGN_SOURCE_MAXLEN (200)
#define CLIENTID_MAXLEN (150)
#define USERNAME_MAXLEN (64)
#define PASSWORD_MAXLEN (65)
// #define MQTT_CLIENT_IDENTITY "866179061276528|securemode=2,signmethod=hmacsha1,timestamp=4070880000000|"
// #define MQTT_CLIENT_USER "866179061276528&hf05listj7l"
// #define MQTT_CLIENT_PASS "da4a91865e995fc663fb9286c05d956026c52a0b"
// subscribe topic
#define MQTT_ALI_SUB_TOPIC1 "/" ALI_PRODUCT_KEY "/" ALI_DEVICE_NAME1 "/user/1234"
//publish topic
#define MQTT_ALI_PUB_TOPIC1 "/" ALI_PRODUCT_KEY "/" ALI_DEVICE_NAME1 "/user/1234"
//subscribe topic
#define MQTT_ALI_SUB_TOPIC2 "/" ALI_PRODUCT_KEY "/" ALI_DEVICE_NAME2 "/user/1234"
//publish topic
#define MQTT_ALI_PUB_TOPIC2 "/" ALI_PRODUCT_KEY "/" ALI_DEVICE_NAME2 "/user/1234"
// publish topic
#define MQTT_ALI_PUB_PAYLOAD "update"
// mqtt client url
#define MQTT_CLIENT_URL "mqtt://iot-06z00iqw9ampzrw.mqtt.iothub.aliyuncs.com:1883"
//mqtt connect status
static int mqtt1_connected = 0, mqtt2_connected = 0;
//semaphore
static liot_sem_t mqtt_semp1, mqtt_semp2;
liot_mqtt_client_t mqtt_cli1 = 0, mqtt_cli2 = 0;
#define LIOT_HTTPC_ENABLE 1
#if LIOT_HTTPC_ENABLE
#define LIOT_HTTP_DEMO_SSL_TEST 0
unsigned char *recv_buf = NULL;
static liot_sem_t http_semp;
const char *HTTPS_CA_CERT = \
{
\
"-----BEGIN CERTIFICATE-----\r\n"
"MIIDdTCCAl2gAwIBAgILBAAAAAABFUtaw5QwDQYJKoZIhvcNAQEFBQAwVzELMAkG\r\n" \
"A1UEBhMCQkUxGTAXBgNVBAoTEEdsb2JhbFNpZ24gbnYtc2ExEDAOBgNVBAsTB1Jv\r\n" \
"b3QgQ0ExGzAZBgNVBAMTEkdsb2JhbFNpZ24gUm9vdCBDQTAeFw05ODA5MDExMjAw\r\n" \
"MDBaFw0yODAxMjgxMjAwMDBaMFcxCzAJBgNVBAYTAkJFMRkwFwYDVQQKExBHbG9i\r\n" \
"YWxTaWduIG52LXNhMRAwDgYDVQQLEwdSb290IENBMRswGQYDVQQDExJHbG9iYWxT\r\n" \
"aWduIFJvb3QgQ0EwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDaDuaZ\r\n" \
"jc6j40+Kfvvxi4Mla+pIH/EqsLmVEQS98GPR4mdmzxzdzxtIK+6NiY6arymAZavp\r\n" \
"xy0Sy6scTHAHoT0KMM0VjU/43dSMUBUc71DuxC73/OlS8pF94G3VNTCOXkNz8kHp\r\n" \
"1Wrjsok6Vjk4bwY8iGlbKk3Fp1S4bInMm/k8yuX9ifUSPJJ4ltbcdG6TRGHRjcdG\r\n" \
"snUOhugZitVtbNV4FpWi6cgKOOvyJBNPc1STE4U6G7weNLWLBYy5d4ux2x8gkasJ\r\n" \
"U26Qzns3dLlwR5EiUWMWea6xrkEmCMgZK9FGqkjWZCrXgzT/LCrBbBlDSgeF59N8\r\n" \
"9iFo7+ryUp9/k5DPAgMBAAGjQjBAMA4GA1UdDwEB/wQEAwIBBjAPBgNVHRMBAf8E\r\n" \
"BTADAQH/MB0GA1UdDgQWBBRge2YaRQ2XyolQL30EzTSo//z9SzANBgkqhkiG9w0B\r\n" \
"AQUFAAOCAQEA1nPnfE920I2/7LqivjTFKDK1fPxsnCwrvQmeU79rXqoRSLblCKOz\r\n" \
"yj1hTdNGCbM+w6DjY1Ub8rrvrTnhQ7k4o+YviiY776BQVvnGCv04zcQLcFGUl5gE\r\n" \
"38NflNUVyRRBnMRddWQVDf9VMOyGj/8N7yy5Y0b2qvzfvGn9LhJIZJrglfCm7ymP\r\n" \
"AbEVtQwdpf5pLGkkeB6zpxxxYu7KyJesF12KwvhHhm4qxFYxldBniYUr+WymXUad\r\n" \
"DKqC5JlR3XC321Y9YeRq4VzW9v493kHMB65jUr9TU/Qr6cf9tveCX4XSQRjbgbME\r\n" \
"HMUfpIBvFSDJ3gyICh3WZlXi/EjJKSZp4A==\r\n" \
"-----END CERTIFICATE-----"
};
/
* @brief HmacSha256 algorithm
* @param input Input data to be encrypted
* @param ilen Input data length
* @param output Encrypted string
* @param key Key
* @param keylen Key length
* @return void
*/
static void HmacSha256(const unsigned char *input, int ilen, unsigned char *output,const unsigned char *key, int keylen)
{
int i;
mbedtls_sha256_context ctx;
unsigned char k_ipad[ALI_SHA256_KEY_IOPAD_SIZE] = {0};
unsigned char k_opad[ALI_SHA256_KEY_IOPAD_SIZE] = {0};
memset(k_ipad, 0x36, 64);
memset(k_opad, 0x5C, 64);
if ((NULL == input) || (NULL == key) || (NULL == output)) {
return;
}
if (keylen > ALI_SHA256_KEY_IOPAD_SIZE) {
return;
}
for(i=0; i<keylen; i++)
{
if(i>=ALI_SHA256_KEY_IOPAD_SIZE)
{
break;
}
k_ipad[i] ^=key[i];
k_opad[i] ^=key[i];
}
mbedtls_sha256_init(&ctx);
mbedtls_sha256_starts(&ctx, 0);
mbedtls_sha256_update(&ctx, k_ipad, ALI_SHA256_KEY_IOPAD_SIZE);
mbedtls_sha256_update(&ctx, input, ilen);
mbedtls_sha256_finish(&ctx, output);
mbedtls_sha256_starts(&ctx, 0);
mbedtls_sha256_update(&ctx, k_opad, ALI_SHA256_KEY_IOPAD_SIZE);
mbedtls_sha256_update(&ctx, output, ALI_SHA256_DIGEST_SIZE);
mbedtls_sha256_finish(&ctx, output);
mbedtls_sha256_free(&ctx);
}
/
* @brief HTTP request to get request body
* @param productkey Product key
* @param deviceName Device name
* @param productSecret Product secret
* @param requestdata Request data body
* @return INT32 Request result -1表示失败 0表示成功
*/
INT32 liot_getHttpRequestData(char* productkey, char* deviceName, char* productSecret, char* requestdata)
{
int dataLen = 0;
uint8_t* sign = NULL;
int radomData = 0;
uint8_t sign_input_fmt[128] = {0};
char hexstr[65] = {0};
liot_trace("productkey: %s, deviceName: %s, productSecret: %s", productkey, deviceName, productSecret);
if((NULL == productkey) || (NULL == deviceName) || (NULL == productSecret) || (NULL == requestdata))
{
return -1;
}
radomData = rand();
sign = malloc(SIGN_SOURCE_MAXLEN);
if(NULL == sign)
{
return -1;
}
sprintf((char*)sign_input_fmt, "deviceName%sproductKey%srandom%d", deviceName, productkey, radomData);
liot_trace("sign_input_fmt: %s", sign_input_fmt);
HmacSha256(sign_input_fmt, strlen((char*)sign_input_fmt), sign, (uint8_t*)productSecret, strlen(productSecret));
cmsHexToHexStr(hexstr, 64, sign, 32);
liot_trace("hexstr: %s", hexstr);
sprintf(requestdata, "productKey=%s&deviceName=%s&random=%d&sign=%s&signMethod=HmacSha256", productkey, deviceName, radomData, hexstr);
liot_trace("requestdata: %s", requestdata);
free(sign);
dataLen = strlen(requestdata);
return dataLen;
}
/
* @brief Get device secret
* @param inStr Input json string
* @param deviceSecret Device secret
* @return INT32 Request result -1表示失败 0表示成功
*/
INT32 cjsonGetDeviceSercite(char* inStr, char* deviceSecret)
{
if((NULL == inStr) || (NULL == deviceSecret) )
{
liot_trace("Failed to parse JSON data!.\n");
return -1;
}
cJSON *json = cJSON_Parse(inStr);
if (json == NULL)
{
liot_trace("Failed to parse JSON data.\n");
return -1;
}
cJSON *code = cJSON_GetObjectItem(json, "code");
if(NULL != code)
{
liot_trace("Code: %d\n", code->valueint);
}
cJSON *data = cJSON_GetObjectItem(json, "data");
if(NULL != data)
{
cJSON *device_name = cJSON_GetObjectItem(data, "deviceName");
if(device_name != NULL)
{
liot_trace("Device Name: %s\n", device_name->valuestring);
}
cJSON *device_secret = cJSON_GetObjectItem(data, "deviceSecret");
if(NULL != device_secret)
{
liot_trace("Device Secret: %s\n", device_secret->valuestring);
strcpy(deviceSecret, device_secret->valuestring);
}
cJSON *product_key = cJSON_GetObjectItem(data, "productKey");
if(NULL != product_key)
{
liot_trace("Product Key: %s\n", product_key->valuestring);
}
cJSON *message = cJSON_GetObjectItem(json, "message");
liot_trace("Message: %s\n", message->valuestring);
}
else
{
liot_trace("Failed to parse JSON data!!.\n");
return -1;
}
cJSON_Delete(json);
return 0;
}
/
* @brief http event cb
* @param client http client
* @param evt http event
* @param evt_code http event code
* @param arg http event arg
* @retval none
* @note none
*/
static void http_event_cb(liot_http_client_t *client, int evt, int evt_code, void *arg)
{
liot_trace("===http_event_cb=== evt:%d,evt_code:%d,%p", evt, evt_code, client);
switch (evt)
{
/*http session open*/
case LIOT_HTTPC_SESSION_OPEN:
{
if (evt_code != LIOT_HTTPC_SUCCESS)
{
liot_trace("http session open ERROR");
liot_rtos_semaphore_release(http_semp);
}
}
break;
case LIOT_HTTPC_UPLOAD_START:
{
liot_httpc_user_notify(client, LIOT_HTTPC_READ);
}
break;
case LIOT_HTTPC_UPLOAD_END:
{
}
break;
case LIOT_HTTPC_RESPONSE_STATUS:
{
if (evt_code == LIOT_HTTPC_SUCCESS)
{
int resp_code = 0;
int content_length = 0;
int chunk_encode = 0;
char *location = NULL;
char *date = NULL;
liot_httpc_getinfo(client, LIOT_HTTPC_STATUS_CODE, &resp_code);
liot_httpc_getinfo(client, LIOT_HTTPC_CHUNK_ENCODE, &chunk_encode);
liot_httpc_getinfo(client, LIOT_HTTPC_DATE, &date);
if (date != NULL)
{
liot_trace("===http_event_cb=== Date:%s", date);
liot_rtos_free(date);
}
liot_trace("===http_event_cb=== resp_code:%d,chunk_encode:%d", resp_code, chunk_encode);
if (chunk_encode == 0)
{
liot_httpc_getinfo(client, LIOT_HTTPC_CONTENT_LEN, &content_length);
liot_trace("===http_event_cb=== content_length:%d", content_length);
}
else
{
liot_trace("http chunk encode");
}
if (resp_code >= 300 && resp_code < 400)
{
liot_httpc_getinfo(client, LIOT_HTTPC_LOCATION, &location);
liot_trace("===http_event_cb=== location:%s", location);
liot_rtos_free(location);
}
}
else if(evt_code == LIOT_HTTPC_ERR_SOCKET_FAILURE)
{
liot_rtos_semaphore_release(http_semp);
}
}
break;
case LIOT_HTTPC_RESPONSE_COMPLETE:
{
if (evt_code == LIOT_HTTPC_SUCCESS)
{
liot_trace("http transfer success");
}
else
{
liot_trace("http transfer fail");
}
liot_rtos_semaphore_release(http_semp);
}
break;
case LIOT_HTTPC_RESPONSE_TIMEOUT:
{
liot_trace("http response timeout");
liot_rtos_semaphore_release(http_semp);
}
break;
case LIOT_HTTPC_SESSION_CLOSE:
{
liot_trace("http LIOT_HTTPC_SESSION_CLOSE success");
liot_rtos_semaphore_release(http_semp);
}
break;
}
}
#if LIOT_HTTP_DEMO_SSL_TEST
/
* @brief http ssl param cfg
* @param client http client
* @param verify_level https verify level
* @return true if success, false if failed
*/
bool liot_https_param_cfg(liot_http_client_t *client, liot_https_verify_level_e verify_level)
{
if((*client == 0) || (verify_level > 2))
{
liot_trace("http liot_https_param_cfg failed!!!!");
return false;
}
unsigned short hs_timeout = 300;
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSLCTXID, 1); // config ssl id
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_VERSION, LIOT_SSL_VERSION_3); // ssl version
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_HS_TIMEOUT, hs_timeout);
// liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_SNI, 0);
liot_trace("%s:%d verify_level:%d ", __FUNCTION__, __LINE__, verify_level);
if (verify_level == LIOT_HTTPS_VERIFY_SERVER)
{
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_VERIFY_LEVEL, LIOT_HTTPS_VERIFY_SERVER);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_CACERT_DATA, HTTPS_CA_CERT);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_IGNORE_INVALID_CERT_SIGN, 1);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SSL_IGNORE_CERT_ITEM, 0xffff);
}
else if (verify_level == LIOT_HTTPS_VERIFY_SERVER_CLIENT)
{
liot_trace(">>>>>verify_level error:%d ", verify_level);
return false;
}
liot_trace(">>>>>verify_level:%d ", verify_level);
return true;
}
#endif
static int http_recv_data_cb(liot_http_client_t *client, void *arg, char *data, int size, unsigned char end)
{
liot_trace(">>>>>client:%p", client);
liot_trace("===http_response_write_data_cb=== size:%d", size);
recv_buf = malloc(size + 1);
if (recv_buf != NULL)
{
memset(recv_buf, 0, size + 1);
memcpy(recv_buf, data, size);
liot_trace("===http_response_write_data_cb=== recv_buf:%s", recv_buf);
}
return size;
}
/
* @brief http request send data cb
* @param client http client
* @param arg http request send data cb arg
* @param data http request send data
* @param size http request send data size
* @return int http request send data size
*/
static int http_request_send_data_cb(liot_http_client_t *client, void *arg, char *data, int size)
{
liot_trace(">>>>>client:%p,%d", client, arg);
if ((client == NULL) || (arg == NULL) || (data == NULL) || (size <= 0))
{
return 0;
}
memset(data, 0, size);
memcpy(data, arg, size);
return size;
}
/
* @brief http init
* @param nSim sim id
* @param cid data call id
* @param client http client
* @param httpHost http host
* @param http_method http method
* @return int
*/
INT32 liot_http_init(uint8_t nSim, uint8_t cid, liot_http_client_t *client, char *httpHost, int http_method)
{
liot_httpc_url_s *url = NULL;
if (client == NULL || httpHost == NULL )
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
url = liot_rtos_malloc(sizeof(liot_httpc_url_s));
if(NULL == url)
{
liot_trace("http liot_http_requeset_data memary malloc failed!!!!");
return -1;
}
if(liot_httpc_url_parse(httpHost, url) == false)
{
liot_trace("http liot_http_requeset_data liot_httpc_url_parse failed!!!!");
liot_rtos_free(url);
return -1;
}
liot_trace(">>>>>>url:%s,port:%d,path:%s,scheme:%d", url->host, url->port, url->uri, url->scheme);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_SIM_ID, nSim);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_PDPCID, cid);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_METHOD, http_method);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_URL, url);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_WRITE_FUNC, http_recv_data_cb);
if (http_method == LIOT_HTTPC_METHOD_POST)
{
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_READ_FUNC, http_request_send_data_cb);
liot_httpc_setopt(client, LIOT_HTTP_CLIENT_OPT_REQUEST_HEADER, "Content-type: application/x-www-form-urlencoded");
}
#if LIOT_HTTP_DEMO_SSL_TEST
if(url->scheme != LIOT_HTTPC_SCHEME_HTTPS)
{
liot_trace("url->scheme =%s", url->scheme);
return -1;
}
if(liot_https_param_cfg(client, LIOT_HTTPS_VERIFY_SERVER) == false)
{
liot_trace("liot_https_param_cfg failed!!!!");
return -1;
}
#endif
return 0;
}
int liot_http_request(uint8_t nSim, uint8_t cid, char *httpHost, int http_method, char *postData)
{
liot_http_client_t http_client = 0;
int ret = -1;
uint32 postDataLen = 0;
liot_rtos_semaphore_create(&http_semp, 0);
if ((httpHost == NULL) || (postData == NULL))
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
if (liot_httpc_new(&http_client, http_event_cb, NULL) != LIOT_HTTPC_SUCCESS)
{
liot_trace("http client create failed!!!!");
return -1;
}
ret = liot_http_init(nSim, cid, &http_client, httpHost, http_method);
if(ret != 0)
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
if (http_method == LIOT_HTTPC_METHOD_POST)
{
liot_trace("http liot_http_requeset_data postData:%d", postData);
postDataLen = strlen(postData);
liot_httpc_setopt(&http_client, LIOT_HTTP_CLIENT_OPT_READ_DATA, postData);
liot_httpc_setopt(&http_client, LIOT_HTTP_CLIENT_OPT_UPLOAD_LEN, postDataLen);
}
if(liot_httpc_perform(&http_client) == LIOT_HTTPC_SUCCESS)
{
liot_trace("liot_rtos_semaphore_wait");
liot_rtos_semaphore_wait(http_semp, LIOT_WAIT_FOREVER);
liot_trace("http perform client success");
ret = 0;
}
else
{
liot_trace("http perform client fail");
ret = -1;
}
liot_httpc_stop(&http_client);
liot_rtos_semaphore_wait(http_semp, LIOT_WAIT_FOREVER);
liot_httpc_release(&http_client);
liot_rtos_semaphore_release(http_semp);
liot_rtos_semaphore_delete(http_semp);
http_semp = NULL;
return ret;
}
int liot_get_mqtt_devSercite(int nSim, int cid, char* productkey, char* deviceName, char* productSecret, char *devSercite)
{
int ret = -1;
char *reqData = NULL;
if (devSercite == NULL)
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
reqData = liot_rtos_malloc(256);
if (reqData == NULL)
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
ret = liot_getHttpRequestData(productkey, deviceName, productSecret, reqData);
if(ret <= 0)
{
liot_trace("http liot_http_requeset_data failed!!!!");
return -1;
}
ret = liot_http_request(nSim, cid, HTTP_UARL, LIOT_HTTPC_METHOD_POST, reqData);
if(ret != 0)
{
liot_trace("http liot_http_requeset_data failed!!!!");
ret = -1;
}
else
{
ret = cjsonGetDeviceSercite((char*)recv_buf, devSercite);
}
if (recv_buf != NULL)
{
liot_rtos_free(recv_buf);
}
if(reqData != NULL)
{
liot_rtos_free(reqData);
}
return ret;
}
/
* @brief Get MQTT client information
* @param productkey Product key
* @param deviceName Device name
* @param deviceSecret Device secret
* @param clientId MQTT client ID
* @param username MQTT login username
* @param password MQTT login password
* @return INT32 Request result -1表示失败 0表示æå
*/
int32_t getMqttClientInfo(char* productkey, char* deviceName, char* deviceSecret,
char* clientId, char* username, char* password)
{
uint8_t* sign = NULL;
// int radomData = 0;
char clientId_in_fmt[256] = {0};
char userName_in_fmt[65] = {0};
uint8_t sign_input_fmt[128] = {0};
if((NULL == productkey) || (NULL == deviceName) || (NULL == deviceSecret) ||
(NULL == clientId) || (NULL == username) || (NULL == password) )
{
return -1;
}
// radomData = rand();
sign = malloc(SIGN_SOURCE_MAXLEN);
if(NULL == sign)
{
return -1;
}
sprintf(clientId_in_fmt, "%s&%s|securemode=3,signmethod=hmacsha256|",deviceName, productkey);
liot_trace("clientId_in_fmt: %s", clientId_in_fmt);
strcpy(clientId, clientId_in_fmt);
sprintf(userName_in_fmt, "%s&%s", deviceName, productkey);
liot_trace("userName_in_fmt: %s", userName_in_fmt);
strcpy(username, userName_in_fmt);
sprintf((char*)sign_input_fmt, "clientId%sdeviceName%sproductKey%s",userName_in_fmt, deviceName, productkey);
liot_trace("sign_input_fmt: %s", sign_input_fmt);
HmacSha256(sign_input_fmt, strlen((char*)sign_input_fmt), sign, (uint8_t*) deviceSecret, strlen(deviceSecret));
cmsHexToHexStr(password, 64, sign, 32);
liot_trace("password: %s", password);
free(sign);
return 0;
}
/
* @brief Get mqtt client information
* @param fileName File name
* @param url Post request URL
* @param productKey Product key
* @param deviceName Device name
* @param productSecret Product secret
* @param clientId Client ID
* @param username Username
* @param password Password
* @return int32_t
*/
int32_t liot_get_mqtt_parma(int nSim, int cid, char* fileName, char* url, char* productKey, char* deviceName, char* productSecret,
char* clientId, char* username, char* password)
{
LFILE fd = 0;
int32_t result = 0;
char deviceSecret[DEVICESECRET_MAXLEN] = {0};
// int32_t deviceSecretLen = 0;
if(clientId == NULL || username == NULL || password == NULL || url == NULL ||
productKey == NULL || deviceName == NULL || productSecret == NULL || fileName == NULL)
{
liot_trace("clientId, username or password is NULL");
return -1;
}
liot_trace("mqtt test start");
// get device secret
if(0 == liot_file_exist(fileName))
{
fd = liot_fopen(fileName, "r");
}
else
{
fd = liot_fopen(fileName, "wb+");
}
result = liot_fread(deviceSecret, sizeof(deviceSecret), 1, fd);
if (result <= 0)
{
result = liot_get_mqtt_devSercite( nSim, cid, productKey, deviceName, productSecret, deviceSecret);
if(result != 0)
{
liot_trace("httpPostData failed!!");
}
else
{
liot_trace(" deviceSecre: %s",deviceSecret);
}
result = liot_fwrite(deviceSecret, strlen(deviceSecret), 1, fd);
if(result != strlen(deviceSecret))
{
liot_trace(" LIOT_NV_MQTT_CFG write fail");
}
result = liot_fclose(fd);
if (result != LIOT_FS_OK)
{
liot_trace("=== close file fail. ret(%d) ===", result);
}
}
result = getMqttClientInfo(productKey, deviceName, deviceSecret, clientId, username, password);
return result;
}
#endif
static void liot_mqtt_event_cb(liot_mqtt_client_t *client, int event_type, void *arg, void *data)
{
liot_trace("===liot_mqtt_event_cb!!!! = %d",event_type);
switch(event_type)
{
case LIOT_MQTT_OPEN_EVENT:
case LIOT_MQTT_CONNECT_EVENT:
{
int status = *(int *)data;
if((*client) == mqtt_cli1)
{
if ( status == 0)
{
mqtt1_connected = 1;
}
liot_trace("mqtt_cli1 connect result = %d", status);
liot_rtos_semaphore_release(mqtt_semp1);
}
else if((*client) == mqtt_cli2)
{
if ( status == 0)
{
mqtt2_connected = 1;
}
liot_trace("mqtt_cli2 connect result = %d", status);
liot_rtos_semaphore_release(mqtt_semp2);
}
liot_trace("MQTT_OPEN_EVENT data=%d", *(int *)data);
}
break;
case LIOT_MQTT_CLOSE_EVENT:
{
if((*client) == mqtt_cli1)
{
mqtt1_connected = 0;
liot_trace("mqtt_cli1 disconnected");
//liot_rtos_semaphore_release(mqtt_semp1);
}
else if((*client) == mqtt_cli2)
{
mqtt2_connected = 0;
liot_trace("mqtt_cli2 disconnected");
//liot_rtos_semaphore_release(mqtt_semp2);
}
liot_trace("MQTT_CLOSE_EVENT data=%d", *(int *)data);
}
break;
case LIOT_MQTT_RECONNECT_EVENT:
{
if((*client) == mqtt_cli1)
{
liot_trace("mqtt_cli1 reconnect");
}
else if((*client) == mqtt_cli2)
{
liot_trace("mqtt_cli2 reconnect");
}
liot_trace("MQTT_RECONNECT_EVENT");
}
break;
case LIOT_MQTT_PUB_EVENT:
case LIOT_MQTT_SUB_EVENT:
case LIOT_MQTT_UNSUB_EVENT:
{
if((*client) == mqtt_cli1)
{
liot_rtos_semaphore_release(mqtt_semp1);
liot_trace("mqtt_requst_result_cb *client = %p", *client);
}
else if((*client) == mqtt_cli2)
{
liot_rtos_semaphore_release(mqtt_semp2);
liot_trace("mqtt_requst_result_cb *client = %p", *client);
}
liot_trace("MQTT_PUB_EVENT pkt_id=%d", *(int *)data);
}
break;
case LIOT_MQTT_DISCONNECT_EVENT:
{
if((*client) == mqtt_cli1)
{
liot_rtos_semaphore_release(mqtt_semp1);
liot_trace("mqtt_disconnect_result_cb *client = %p", *client);
}
else if((*client) == mqtt_cli2)
{
liot_rtos_semaphore_release(mqtt_semp2);
liot_trace("mqtt_disconnect_result_cb *client = %p", *client);
}
liot_trace("MQTT_DISCONNECT_EVENT data=%d", *(int *)data);
}
break;
case LIOT_MQTT_PUBLISH_EVENT:
{
liot_mqtt_recvMessage *msg = (liot_mqtt_recvMessage *)data;
liot_trace("===mqtt_recv_data===== *client = %p", *client);
liot_trace("topic: %s, len: %d", msg->topicName, msg->topicLen);
liot_trace("payload: %s, len: %d", msg->payload, msg->payloadlen);
liot_trace("qos: %d", msg->qos);
liot_trace("retain: %d", msg->retained);
liot_trace("dup: %d", msg->dup);
liot_trace("msgid: %d", msg->id);
}
break;
default:
break;
}
}
/
* @brief Callback function for network indication events.
* This function is a test function for multi - task network callback.
*
* @param nSim SIM card number.
* @param ind_type Indication event type.
* @param ctx Pointer to the context data.
*/
static void liot_nw_ind_callback(uint8_t nSim, unsigned int ind_type, void *ctx)
{
char csq = 99; // Default signal quality value
liot_nw_common_reg_status_info_s *liot_nw_msg = NULL;
liot_nw_nitz_time_info_s *liot_nw_nitz_time_info = NULL;
liot_trace("nSim=%d, ind_type=%x", nSim, ind_type);
switch (ind_type)
{
case LIOT_NW_SIGNAL_QUALITY_IND:
{
csq = *((char *)ctx); // Get the signal quality value
liot_trace("csq=%d", csq);
}
break;
case LIOT_NW_DATA_REG_STATUS_IND:
{
liot_nw_msg = (liot_nw_common_reg_status_info_s *)ctx; // Cast the context pointer
liot_trace("regState=%d, lac=0x%X, cid=0x%X, act=%d",
liot_nw_msg->state,
liot_nw_msg->lac,
liot_nw_msg->cid,
liot_nw_msg->act);
}
break;
case LIOT_NW_NITZ_TIME_UPDATE_IND:
{
liot_nw_nitz_time_info = (liot_nw_nitz_time_info_s *)ctx; // Cast the context pointer
liot_trace(
"nitz_time=%s, abs_time=%ld", liot_nw_nitz_time_info->nitz_time, liot_nw_nitz_time_info->abs_time);
}
break;
}
}
static int datacall_start()
{
int ret = 0;
int profile_idx = 1;
liot_data_call_info_t info;
uint8_t nSim = 0;
// Register network callback
ret = liot_nw_register_cb(liot_nw_ind_callback);
if (LIOT_NW_SUCCESS != ret)
{
liot_trace("liot_nw_register_cb failed, ret is 0x%x.", ret);
}
// Try to wait for network registration, up to 10 attempts
int times = 0;
while (LIOT_DATACALL_SUCCESS != (ret = liot_network_register_wait(nSim, 120)) && times < 10)
{
times++;
liot_rtos_task_sleep_s(1);
}
if (LIOT_DATACALL_SUCCESS != ret)
{
liot_trace("====network register failure!!!!!====");
return -1;
}
liot_trace("===start data call begin====");
ret = liot_start_data_call(nSim, profile_idx, LIOT_DATA_TYPE_IP, "", "", "", LIOT_DATA_AUTH_TYPE_NONE);
if (ret != LIOT_DATACALL_SUCCESS)
{
liot_trace("liot_start_data_call ret: 0x%x.", ret);
return -1;
}
liot_trace("===start data call end====");
liot_rtos_task_sleep_s(5);
ret = liot_get_data_call_info(nSim, profile_idx, &info);
if (ret != 0)
{
liot_stop_data_call(nSim, profile_idx);
liot_trace("liot_get_data_call_info ret: %d", ret);
return -1;
}
liot_trace("info->cid: %d", info.cid);
liot_trace("info->ip_version: %d", info.ip_version);
liot_trace("info->v4.state: %d", info.v4.state);
// inet_ntop(AF_INET, &info.v4.addr.ip, ip4_addr_str, sizeof(ip4_addr_str));
// liot_trace("info.v4.addr.ip: %s", ip4_addr_str);
// inet_ntop(AF_INET, &info.v4.addr.pri_dns, ip4_addr_str, sizeof(ip4_addr_str));
// liot_trace("info.v4.addr.pri_dns: %s", ip4_addr_str);
// inet_ntop(AF_INET, &info.v4.addr.sec_dns, ip4_addr_str, sizeof(ip4_addr_str));
// liot_trace("info.v4.addr.sec_dns: %s", ip4_addr_str);
return 0;
}
void liot_mqtt_ali_client1_thread(void *arg)
{
int ret = 0;
liot_mqtt_client_option options = {0};
char clientid[CLIENTID_MAXLEN] = {0};
char username[USERNAME_MAXLEN] = {0};
char password[PASSWORD_MAXLEN] = {0};
int mqttState = 0;
int cid = 1;
int nSim = 0;
int free_size = liot_xPortGetFreeHeapSize();
liot_trace("free size :%d",free_size);
#if LIOT_HTTPC_ENABLE
ret = liot_get_mqtt_parma(nSim, cid, LIOT_NV_MQTT1_CFG, HTTP_UARL, ALI_PRODUCT_KEY, ALI_DEVICE_NAME1, ALI_PRODUCT_SECRET,
clientid, username, password);
if (ret != 0)
{
liot_trace("get mqtt parma failed");
return;
}
#endif
options.version = LIOT_MQTT_VERSION_4; // 3.1.1
options.pdp_cid = 1;
options.ssl_enable = false,
options.ssl_cfg = NULL;
options.clean_session = 1;
options.kalive_time = 30; //mqtt keepalive time unit: second
options.delivery_time = 5; //mqtt message delivery time
options.delivery_cnt = 3;
options.will_flag = 0;
options.will_qos = 0;
options.will_retain = 0;
options.ping_timeout = 5;
options.client_id = clientid;
options.client_user = username;
options.client_pass = password;
memset(options.will_topic, 0x00, 256);
memset(options.will_message, 0x00, 256);
liot_rtos_semaphore_create(&mqtt_semp1, 0);
int reconnectCnt = 0;
if (liot_mqtt_client_init_ex(&mqtt_cli1, cid, liot_mqtt_event_cb, NULL) != LIOT_MQTTCLIENT_SUCCESS)
{
liot_trace("mqtt client init failed!!!!");
}
ret = liot_mqtt_connect(&mqtt_cli1,
MQTT_CLIENT_URL,
NULL,
NULL,
(liot_mqtt_client_option *)&options,
NULL);
if (ret == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("====wait connect result");
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
if (mqtt1_connected == 0)
{
liot_mqtt_client_deinit(&mqtt_cli1);
}
}
else
{
liot_trace("===mqtt connect failed ,ret = %d", ret);
}
while(1)
{
// app_show_mem(NULL, __LINE__);
mqttState = liot_mqtt_client_state(&mqtt_cli1);
liot_trace("=====MQTT STATE-->>%d", mqttState);
if(mqttState == MQTT_CONN_CONNECTED)
{
if (liot_mqtt_sub_unsub(&mqtt_cli1, MQTT_ALI_SUB_TOPIC1, 0, NULL, NULL, 1) ==
LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("======wait subscrible result");
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
}
if (liot_mqtt_publish(&mqtt_cli1,
MQTT_ALI_PUB_TOPIC1,
MQTT_ALI_PUB_PAYLOAD,
strlen(MQTT_ALI_PUB_PAYLOAD),
0,
0,
NULL,
NULL) == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("======wait publish result");
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
}
if (liot_mqtt_sub_unsub(&mqtt_cli1, MQTT_ALI_SUB_TOPIC1, 0, NULL, NULL, 0) ==
LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("=====wait unsubscrible result");
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
}
}
//reconnect mqtt
else if((mqttState == MQTT_CONN_DISCONNECTED) || (mqttState == MQTT_CONN_DEFAULT))
{
liot_trace("=====MQTT reconnect");
ret = datacall_start();
if (ret != 0) {
liot_trace("datacall_start failed");
break;
}
reconnectCnt++;
if (liot_mqtt_client_init(&mqtt_cli1, cid) != LIOT_MQTTCLIENT_SUCCESS)
{
liot_trace("mqtt client init failed!!!!");
}
ret = liot_mqtt_connect(&mqtt_cli1,
MQTT_CLIENT_URL,
NULL,
NULL,
(liot_mqtt_client_option *)&options,
NULL);
liot_trace("=====MQTT eeeee-->> ret: %d", ret);
if (ret == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
uint32_t count = 0;
liot_rtos_semaphore_get_cnt(mqtt_semp1, &count);
liot_trace("====wait connect result liot_rtos_semaphore_get_cnt = %d", count);
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
if (mqtt1_connected == 0)
{
liot_mqtt_client_deinit(&mqtt_cli1);
}
else
{
reconnectCnt = 0;
}
}
else
{
liot_trace("===mqtt connect failed ,ret = %d", ret);
}
if (reconnectCnt > 2)
{
liot_trace("===mqtt reconnect failed ,exit");
break;
}
}
else if(mqttState == MQTT_CONN_RECONNECTING)
{
liot_trace("=====MQTT STATE-->> RECONNECTING");
}
else
{
liot_trace("=====MQTT STATE-->> other: %d", mqttState);
}
liot_rtos_task_sleep_s(5);
}
if (mqtt1_connected == 1 && liot_mqtt_disconnect(&mqtt_cli1, NULL, NULL) == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("=====wait disconnect result");
liot_rtos_semaphore_wait(mqtt_semp1, LIOT_WAIT_FOREVER);
}
liot_rtos_task_sleep_s(5);
liot_mqtt_client_deinit(&mqtt_cli1);
mqtt1_connected = 0;
liot_rtos_semaphore_delete(mqtt_semp1);
mqtt_semp1 = NULL;
liot_rtos_task_sleep_s(5);
liot_trace("mqtt test end");
liot_rtos_task_delete(NULL);
return;
}
void liot_mqtt_ali_client2_thread(void *arg)
{
int ret = 0;
liot_mqtt_client_option options = {0};
char clientid[CLIENTID_MAXLEN] = {0};
char username[USERNAME_MAXLEN] = {0};
char password[PASSWORD_MAXLEN] = {0};
int mqttState = 0;
int cid = 1;
int nSim = 0;
int free_size = liot_xPortGetFreeHeapSize();
liot_trace("free size :%d",free_size);
#if LIOT_HTTPC_ENABLE
ret = liot_get_mqtt_parma(nSim, cid, LIOT_NV_MQTT2_CFG, HTTP_UARL, ALI_PRODUCT_KEY, ALI_DEVICE_NAME2, ALI_PRODUCT_SECRET,
clientid, username, password);
if (ret != 0)
{
liot_trace("get mqtt parma failed");
return;
}
#endif
options.version = LIOT_MQTT_VERSION_4; // 3.1.1
options.pdp_cid = 1;
options.ssl_enable = false,
options.ssl_cfg = NULL;
options.clean_session = 1;
options.kalive_time = 30; // mqtt keep alive time, unit: s
options.delivery_time = 5; // mqtt message delivery time, unit: s
options.delivery_cnt = 3;
options.will_flag = 0;
options.will_qos = 0;
options.will_retain = 0;
options.ping_timeout = 5;
options.client_id = clientid;
options.client_user = username;
options.client_pass = password;
memset(options.will_topic, 0x00, 256);
memset(options.will_message, 0x00, 256);
liot_rtos_semaphore_create(&mqtt_semp2, 0);
int reconnectCnt = 0;
if (liot_mqtt_client_init_ex(&mqtt_cli2, cid, liot_mqtt_event_cb, NULL) != LIOT_MQTTCLIENT_SUCCESS)
{
liot_trace("mqtt client init failed!!!!");
}
ret = liot_mqtt_connect(&mqtt_cli2,
MQTT_CLIENT_URL,
NULL,
NULL,
(liot_mqtt_client_option *)&options,
NULL);
if (ret == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("====wait connect result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
if (mqtt2_connected == 0)
{
liot_mqtt_client_deinit(&mqtt_cli2);
}
}
else
{
liot_trace("===mqtt connect failed ,ret = %d", ret);
}
while(1)
{
//app_show_mem(NULL, __LINE__);
mqttState = liot_mqtt_client_state(&mqtt_cli2);
liot_trace("=====MQTT STATE-->>%d", mqttState);
if(mqttState == MQTT_CONN_CONNECTED)
{
if (liot_mqtt_sub_unsub(&mqtt_cli2, MQTT_ALI_SUB_TOPIC2, 1, NULL, NULL, 1) ==
LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("======wait subscrible result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
}
if (liot_mqtt_publish(&mqtt_cli2,
MQTT_ALI_PUB_TOPIC2,
MQTT_ALI_PUB_PAYLOAD,
strlen(MQTT_ALI_PUB_PAYLOAD),
1,
0,
NULL,
NULL) == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("======wait publish result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
}
if (liot_mqtt_sub_unsub(&mqtt_cli2, MQTT_ALI_SUB_TOPIC2, 1, NULL, NULL, 0) ==
LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("=====wait unsubscrible result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
}
}
//reconnect mqtt
else if((mqttState == MQTT_CONN_DISCONNECTED) || (mqttState == MQTT_CONN_DEFAULT))
{
liot_trace("=====MQTT reconnect");
ret = datacall_start();
if (ret != 0) {
liot_trace("datacall_start failed");
break;
}
reconnectCnt++;
if (liot_mqtt_client_init(&mqtt_cli2, cid) != LIOT_MQTTCLIENT_SUCCESS)
{
liot_trace("mqtt client init failed!!!!");
}
ret = liot_mqtt_connect(&mqtt_cli2,
MQTT_CLIENT_URL,
NULL,
NULL,
(liot_mqtt_client_option *)&options,
NULL);
liot_trace("=====MQTT eeeee-->> ret: %d", ret);
if (ret == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("====wait connect result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
if (mqtt2_connected == 0)
{
liot_mqtt_client_deinit(&mqtt_cli2);
}
else
{
reconnectCnt = 0;
}
}
else
{
liot_trace("===mqtt connect failed ,ret = %d", ret);
}
if (reconnectCnt > 2)
{
liot_trace("===mqtt reconnect failed ,exit");
break;
}
}
else if(mqttState == MQTT_CONN_DISCONNECTED)
{
liot_trace("=====MQTT STATE-->> CONNECTING");
}
else if(mqttState == MQTT_CONN_RECONNECTING)
{
liot_trace("=====MQTT STATE-->> RECONNECTING");
}
else
{
liot_trace("=====MQTT STATE-->> other: %d", mqttState);
}
liot_rtos_task_sleep_s(5);
}
if (mqtt2_connected == 1 && liot_mqtt_disconnect(&mqtt_cli2, NULL, NULL) == LIOT_MQTTCLIENT_WOUNDBLOCK)
{
liot_trace("=====wait disconnect result");
liot_rtos_semaphore_wait(mqtt_semp2, LIOT_WAIT_FOREVER);
}
liot_rtos_task_sleep_s(5);
liot_mqtt_client_deinit(&mqtt_cli2);
mqtt2_connected = 0;
liot_rtos_semaphore_delete(mqtt_semp2);
mqtt_semp2 = NULL;
liot_rtos_task_sleep_s(5);
liot_trace("mqtt test end");
liot_rtos_task_delete(NULL);
return;
}
liot_task_t mqttClient1Task = NULL, mqttClient2Task = NULL;
#define LIOT_MQTT_TASK_PRIORITY APP_PRIORITY_NORMAL
void liot_mqtt_ali_app_thread(void *arg)
{
int ret = -1;
ret = datacall_start();
if (ret != 0) {
liot_trace("datacall_start failed");
liot_rtos_task_delete(NULL);
return;
}
liot_rtos_task_sleep_s(10);
liot_rtos_task_create(&mqttClient2Task, 1024*6, LIOT_APP_TASK_PRIORITY,"mqtt_ali_client2_thread", &liot_mqtt_ali_client2_thread, NULL);
liot_rtos_task_sleep_s(3);
liot_rtos_task_create(&mqttClient1Task, 1024*6, LIOT_APP_TASK_PRIORITY,"mqtt_ali_client1_thread", &liot_mqtt_ali_client1_thread, NULL);
liot_rtos_task_sleep_s(1);
while(1)
{
liot_rtos_task_sleep_s(20);
//app_show_mem(NULL, __LINE__);
}
}
运行结果：
如上图所示，连接aliyun平台，订阅/取消订阅成功，成功接收到发送的数据。mqtt通讯正常。
