Data Call Development Guide_Rev2.0

中文

Document Revision History

Version

Date

Author

Revision Content

Rev1.0

23-09-15

YPP

Created document

Rev1.1

24-03-25

sxx

Changed document name

Rev1.2

24-10-25

LJZ

Modified document format

Rev1.3

25-04-09

ZW

Added Section 4.16, added interface liot_network_register_cereg_get.

Rev1.4

26-01-09

ZLC

Added Section 4.16, added new interfaces.

Rev2.0

26-03-03

YMX

Modified document format

1 Introduction

This document provides a detailed description of the LTE-EC71X OpenCPU Data Call API functions. The API is located in the file components/kernel/lierda_api/liot_datacall/liot_datacall.h.

  • Network Registration: liot_network_register_wait (network registration) is an automatic action after power-on. However, for private network SIM cards, you need to configure the APN first, then control the device on/off to achieve network registration.

  • Data Call Activation: liot_start_data_call (dial-up) is a manual action to obtain a service IP. To enable data communication between the module and the base station, a data call must be initiated.

  • Default EPS Bearer: After successful attachment, the Cat.1 module usually automatically activates CID 1.

2 API Function Overview

2.1 Core Control

Function

Description

liot_start_data_call()

Start data call

liot_stop_data_call()

Stop data call

liot_set_data_call_asyn_mode()

Set execution mode for start/stop data call functions

liot_datacall_set_nat()

Enable NAT function

2.2 Status Query

Function

Description

liot_get_data_call_info()

Get data call information

liot_datacall_get_sim_profile_is_active()

Get current PDP context activation status

liot_datacall_get_default_pdn_info()

Get default bearer information

liot_network_register_wait()

Wait for network registration result

liot_network_register_cereg_get()

Get network registration status

liot_datacall_get_nat()

Query NAT mode for (U)SIM card

Liot_DataCallCfgDefaultEpsBearer()

Set or query default bearer (CID 1) APN and IP type

2.3 Event Handling

Function

Description

liot_datacall_register_cb()

Register data call callback function

liot_datacall_unregister_cb()

Unregister data call callback function

Liot_PsEventCb()

Register system event notification callback

2.4 IP Address Utilities

Function

Description

liot_ip4addr_ntoa()

Convert IPv4 address to string

liot_ip6addr_ntoa()

Convert IPv6 address to string

liot_ip4addr_aton()

Convert string to IPv4 address

liot_ip6addr_aton()

Convert string to IPv6 address

3 API Function Details

3.1 liot_datacall_register_cb

This function registers a callback for data call events. Whether in asynchronous or synchronous mode, a callback must be registered to report network-initiated deactivation or detach events. Upon receiving such events, a re-dial process can be initiated.

  • Declaration

    liot_datacall_errcode_e liot_datacall_register_cb(uint8_t nSim, int profile_idx, liot_datacall_callback datacall_cb, void *ctx)

  • Parameters

    nSim:

    [In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1 or 0xFF.

    profile_idx:

    [In] PDP context ID. Range: 1~7 or 0xFF.

    datacall_cb:

    [In] The callback function to register. See Section 3.1.1.

    ctx:

    [In] Pointer to callback function parameter.

  • Return Value

See Section 3.1.2.

3.1.1 liot_datacall_callback

This callback function reports data call events.

  • Declaration

    typedef void (*liot_datacall_callback)(uint8_t nSim, unsigned int ind_type, int profile_idx, bool result, void *ctx);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1 or 0xFF.

ind_type:

[In] Data call event type.

Event

Description

LIOT_DATACALL_ACT_RSP_IND

PDP activation result response event in asynchronous mode

LIOT_DATACALL_DEACT_RSP_IND

PDP deactivation result response event in asynchronous mode

LIOT_DATACALL_PDP_DEACTIVE_IND

PDP network-initiated deactivation or detach event

profile_idx:

[In] PDP context ID. Range: 1~7 or 0xFF.

result:

[In] PDP context activation/deactivation result. 0: failure, 1: success.

ctx:

[In] Pointer to callback function parameter.

3.1.2 liot_datacall_errcode_e

Data call API execution result error codes.

  • Declaration

    typedef enum{
  LIOT_DATACALL_SUCCESS     = 0,
  LIOT_DATACALL_EXECUTE_ERR = 1 | LIOT_DATACALL_ERRCODE_BASE,
  LIOT_DATACALL_MEM_ADDR_NULL_ERR,
  LIOT_DATACALL_INVALID_PARAM_ERR,
  LIOT_DATACALL_NW_REGISTER_TIMEOUT_ERR,
  LIOT_DATACALL_CFW_ACT_STATE_GET_ERR = 5 | LIOT_DATACALL_ERRCODE_BASE,    LIOT_DATACALL_REPEAT_ACTIVE_ERR,
  LIOT_DATACALL_REPEAT_DEACTIVE_ERR,
  LIOT_DATACALL_CFW_PDP_CTX_SET_ERR,
  LIOT_DATACALL_CFW_PDP_CTX_GET_ERR,
  LIOT_DATACALL_CS_CALL_ERR = 10 | LIOT_DATACALL_ERRCODE_BASE,
  LIOT_DATACALL_CFW_CFUN_GET_ERR,
  LIOT_DATACALL_CFUN_DISABLE_ERR,
  LIOT_DATACALL_NW_STATUS_GET_ERR,
  LIOT_DATACALL_NOT_REGISTERED_ERR,
  LIOT_DATACALL_NO_MEM_ERR = 15 | LIOT_DATACALL_ERRCODE_BASE,
  LIOT_DATACALL_CFW_ATTACH_STATUS_GET_ERR,
  LIOT_DATACALL_SEMAPHORE_CREATE_ERR,
  LIOT_DATACALL_SEMAPHORE_TIMEOUT_ERR,
  LIOT_DATACALL_CFW_ATTACH_REQUEST_ERR,
  LIOT_DATACALL_CFW_ACTIVE_REQUEST_ERR = 20 | LIOT_DATACALL_ERRCODE_BASE,
  LIOT_DATACALL_ACTIVE_FAIL_ERR,
  LIOT_DATACALL_CFW_DEACTIVE_REQUEST_ERR,
  LIOT_DATACALL_NO_DFTPDN_CFG_CONTEXT,
  LIOT_DATACALL_NO_DFTPDN_INFO_CONTEXT,
} liot_datacall_errcode_e;

  • Parameters

Parameter

Description

LIOT_DATACALL_SUCCESS

Execution successful

LIOT_DATACALL_EXECUTE_ERR

Execution failed

LIOT_DATACALL_MEM_ADDR_NULL_ERR

Parameter address is NULL

LIOT_DATACALL_INVALID_PARAM_ERR

Invalid parameter

LIOT_DATACALL_NW_REGISTER_TIMEOUT_ERR

Network registration timeout

LIOT_DATACALL_CFW_ACT_STATE_GET_ERR

Failed to get PDP context activation status

LIOT_DATACALL_REPEAT_ACTIVE_ERR

Repeated PDP context activation

LIOT_DATACALL_REPEAT_DEACTIVE_ERR

Repeated PDP context deactivation

LIOT_DATACALL_CFW_PDP_CTX_SET_ERR

Failed to set PDP context

LIOT_DATACALL_CFW_PDP_CTX_GET_ERR

Failed to get PDP context

LIOT_DATACALL_CS_CALL_ERR

Data operation failed due to ongoing voice call

LIOT_DATACALL_CFW_CFUN_GET_ERR

Failed to get function mode

LIOT_DATACALL_CFUN_DISABLE_ERR

Data operation failed due to non-full function mode

LIOT_DATACALL_NW_STATUS_GET_ERR

Failed to get network registration status

LIOT_DATACALL_NOT_REGISTERED_ERR

Network not registered

LIOT_DATACALL_NO_MEM_ERR

Memory allocation failed

LIOT_DATACALL_CFW_ATTACH_STATUS_GET_ERR

Failed to get network attach status

LIOT_DATACALL_SEMAPHORE_CREATE_ERR

Failed to create semaphore

LIOT_DATACALL_SEMAPHORE_TIMEOUT_ERR

Semaphore wait timeout

LIOT_DATACALL_CFW_ATTACH_REQUEST_ERR

Network attach rejected

LIOT_DATACALL_CFW_ACTIVE_REQUEST_ERR

PDP context activation rejected

LIOT_DATACALL_ACTIVE_FAIL_ERR

PDP context activation failed

LIOT_DATACALL_CFW_DEACTIVE_REQUEST_ERR

PDP context deactivation rejected

LIOT_DATACALL_NO_DFTPDN_CFG_CONTEXT

Default bearer context not configured

LIOT_DATACALL_NO_DFTPDN_INFO_CONTEXT

No default bearer context information

3.2 liot_datacall_unregister_cb

This function is used to cancel the callback function registered via liot_datacall_register_cb(). After cancellation, the callback function will no longer receive data call related events.

  • Function

    liot_datacall_errcode_e liot_datacall_unregister_cb(uint8_t nSim, int profile_idx, liot_datacall_callback datacalliot_cb, void *ctx);

  • Parameters

    nSim:

    [In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1 or 0xFF.

    profile_idx:

    [In] PDP context ID. Range: 1~7 or 0xFF.

    datacall_cb:

    [In] The callback function to unregister. See Section 3.1.1.

    ctx:

    [In] Pointer to callback function parameter.

  • Return Value

    See Section 3.1.2.

3.3 liot_get_data_call_info

This function is used to get data call information.

  • Function

liot_datacall_errcode_e liot_get_data_call_info(UINT8 nSim, INT32 profile_idx, liot_data_call_info_t *call_info);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

profile_idx:

[In] PDP context ID. Range: 1~7.

call_info:

[Out] Data call information. See Section 3.3.1.

  • Return Value

See Section 3.1.2. 3.3.1 liot_data_call_info_t

Data call information.

  • Declaration

typedef struct{
  INT32 cid;
  INT32 ip_version;
  liot_v4_info v4;
  liot_v6_info v6;
  char apn_name[LIOT_APN_LEN_MAX];
} liot_data_call_info_t;

  • Parameters

Parameter

Type

Description

cid

INT32

PDP context ID. Range: 1~7.

ip_version

INT32

IP type.
1 IPv4
2 IPv6
3 IPv4v6

v4

struct liot_v4_info

IPv4 information. See Section 3.3.2.

v6

struct liot_v6_info

IPv6 information. See Section 3.3.5.

apn_name

char

APN name, maximum string length is 64.

3.3.2 liot_v4_info

IPv4 information.

  • Declaration

typedef struct
{
  INT32 state;                 // dial status
  liot_v4_address_status addr; // IPv4 address information
} liot_v4_info;

  • Parameters

Parameter

Type

Description

state

INT32

Dial status.
0 Not dialed
1 Dial successful

addr

struct liot_v4_address_status

IPv4 address status. See Section 3.3.3.

3.3.3 liot_v4_address_status

IPv4 address status.

  • Declaration

typedef struct
{
  liot_ip4_addr_t ip;
  liot_ip4_addr_t pri_dns;
  liot_ip4_addr_t sec_dns;
} liot_v4_address_status;

  • Parameters

Parameter

Type

Description

ip

struct liot_ip4_addr_t

Obtained IPv4 address. See Section 3.3.4.

pri_dns

struct liot_ip4_addr_t

Primary DNS server IPv4 address. See Section 3.3.4.

sec_dns

struct liot_ip4_addr_t

Secondary DNS server IPv4 address. See Section 3.3.4.

3.3.4 liot_ip4_addr_t

IPv4 address.

  • Declaration

typedef struct
{
  UINT32 addr;
} liot_ip4_addr_t;

  • Parameters

Parameter

Type

Description

addr

UINT32

IPv4 address.

3.3.5 liot_v6_info

IPv6 information.

  • Declaration

typedef struct
{
  INT32 state;                 // dial status
  liot_v6_address_status addr; // IPv6 address information
} liot_v6_info;

  • Parameters

Parameter

Type

Description

state

INT32

Dial status.
0 Not dialed
1 Dial successful

addr

struct liot_v6_address_status

IPv6 address status. See Section 3.3.6.

3.3.6 liot_v6_address_status

IPv6 address status.

  • Declaration

typedef struct
{
  liot_ip6_addr_t ip;
  liot_ip6_addr_t pri_dns;
  liot_ip6_addr_t sec_dns;
} liot_v6_address_status;

  • Parameters

Parameter

Type

Description

ip

struct liot_ip6_addr_t

Obtained IPv6 address. See Section 3.3.7.

pri_dns

struct liot_ip6_addr_t

Primary DNS server IPv6 address. See Section 3.3.7.

sec_dns

struct liot_ip6_addr_t

Secondary DNS server IPv6 address. See Section 3.3.7.

3.3.7 liot_ip6_addr_t

IPv6 address.

  • Declaration

typedef struct
{
  UINT32 addr[4];
} liot_ip6_addr_t;

  • Parameters

Parameter

Type

Description

addr

UINT32

IPv6 address, size is 4 bytes.

3.4 liot_start_data_call

This function is used to start a data call. The default mode is synchronous. To use asynchronous mode, configure it via liot_set_data_call_asyn_mode(). The difference between synchronous and asynchronous modes is as follows:

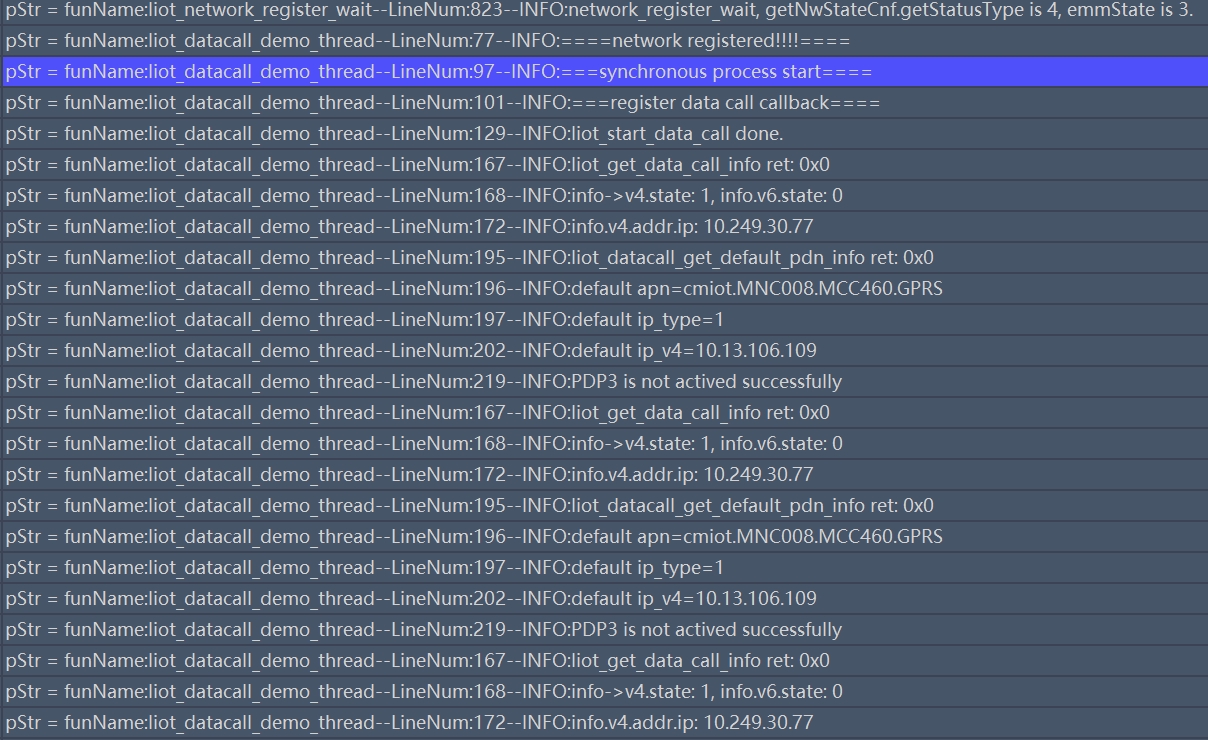

  1. Synchronous mode: After function execution, it returns the data call result code. If LIOT_DATACALL_SUCCESS is returned, the data call is successful, an IP address has been obtained, and socket communication can proceed.

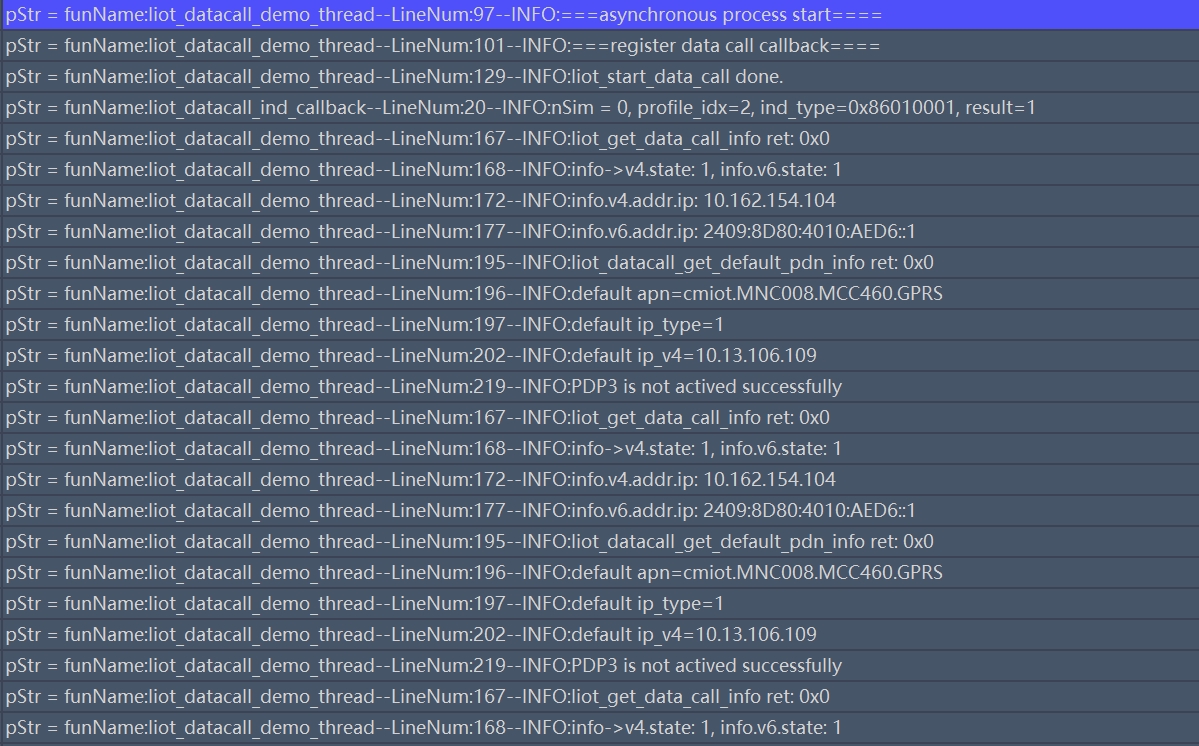

  2. Asynchronous mode: After function execution, it returns the function execution result code. If LIOT_DATACALL_SUCCESS is returned, it does NOT mean the data call is successful — it only means the function executed successfully. The registered callback function will notify the upper layer whether the dial was successful via the LIOT_DATACALL_ACT_RSP_IND event.

  • Declaration

liot_datacall_errcode_e liot_start_data_call(UINT8 nSim, INT32 cid, INT32 ip_version, CHAR *apn_name, CHAR *username, CHAR *password, INT32 auth_type);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

cid:

[In] PDP context ID. Range: 1~7.

ip_version:

[In] IP version: 1 IPv4, 2 IPv6, 3 IPv4v6.

apn_name:

[In] APN name.

username:

[In] Username.

password:

[In] Password.

auth_type:

[In] Authentication type. See Section 3.4.1.

  • Return Value

See Section 3.1.2.

3.4.1 liot_data_auth_type_e

Authentication type.

  • Declaration

typedef enum
{
  LIOT_DATA_AUTH_TYPE_AUTO = 0xFF,
  LIOT_DATA_AUTH_TYPE_NONE = 0,
  LIOT_DATA_AUTH_TYPE_PAP,
  LIOT_DATA_AUTH_TYPE_CHAP,
} liot_data_auth_type_e;

  • Parameters

Parameter

Description

LIOT_DATA_AUTH_TYPE_AUTO

Automatically select PAP or CHAP authentication protocol

LIOT_DATA_AUTH_TYPE_NONE

No authentication protocol

LIOT_DATA_AUTH_TYPE_PAP

PAP authentication protocol

LIOT_DATA_AUTH_TYPE_CHAP

CHAP authentication protocol

3.5 liot_datacall_get_default_pdn_info

This function is used to get default bearer information.

  • Declaration

liot_datacall_errcode_e liot_datacall_get_default_pdn_info(uint8_t nSim, liot_data_call_default_pdn_info_s *ctx);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

ctx:

[Out] Bearer information. See Section 3.5.1.

  • Return Value

See Section 3.1.2.

3.5.1 liot_data_call_default_pdn_info_s

Default bearer information structure.

  • Declaration

typedef struct{
  uint8_t ip_version;
  liot_ip4_addr_t ipv4;
  liot_ip6_addr_t ipv6;
  char apn_name[LIOT_APN_LEN_MAX];
} liot_data_call_default_pdn_info_s;

  • Parameters

Parameter

Type

Description

ip_version

uint8_t

IP type.
1 IPv4
2 IPv6
3 IPv4v6

ipv4

struct liot_ip4_addr_t

IPv4 information. See Section 3.3.4.

ipv6

struct liot_ip6_addr_t

IPv6 information. See Section 3.3.7.

apn_name

char

APN name, maximum string length is 64.

3.6 liot_datacall_get_sim_profile_is_active

This function is used to get the current PDP context activation status.

  • Declaration

bool liot_datacall_get_sim_profile_is_active(uint8_t nSim, int profile_idx);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

profile_idx:

[In] PDP context ID. Range: 1~7.

  • Return Value

true: activated, false: not activated.

3.7 liot_stop_data_call

This function is used to stop a data call. The default mode is synchronous. To use asynchronous mode, configure it via liot_set_data_call_asyn_mode(). When the data call is stopped, all Socket connections depending on this CID will be forcibly closed.

  • Declaration

liot_datacall_errcode_e liot_stop_data_call(UINT8 nSim, INT32 profile_idx);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

profile_idx:

[In] PDP context ID. Range: 1~7.

  • Return Value

See Section 3.1.2.

3.8 liot_set_data_call_asyn_mode

This function is used to set the execution mode for start and stop data call functions (i.e., liot_start_data_call() and liot_stop_data_call()). The execution mode can be either synchronous or asynchronous. It must be called before liot_start_data_call to configure the execution mode.

  • Declaration

liot_datacall_errcode_e liot_set_data_call_asyn_mode(uint8_t nSim, int profile_idx, bool enable);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

profile_idx:

[In] PDP context ID. Range: 1~7.

enable:

[In] Function execution mode: 0 synchronous mode, 1 asynchronous mode.

  • Return Value

See Section 3.1.2.

3.9 liot_network_register_wait

This function is used to wait for the network registration result. Network registration is automatically completed after power-on. Only after successful registration can a data call be initiated. If the network is not currently registered, it will block the thread calling this function until network registration succeeds or times out.

This is a synchronous function that waits for successful network registration within the timeout period. If the network is not registered when the timeout expires, it returns registration failure. It is recommended to call this interface in a separate thread.

  • Declaration

liot_datacall_errcode_e liot_network_register_wait(uint8_t nSim, unsigned int timeout_s);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

timeout_s:

[In] Timeout for waiting for network registration. Unit: seconds.

  • Return Value

See Section 3.1.2.

3.10 liot_datacall_set_nat

This function is used to enable the NAT function. The configuration takes effect after module restart. NAT is typically enabled only when the module is used as an RNDIS/ECM network adapter.

  • Declaration

liot_datacall_errcode_e liot_datacall_set_nat(uint8_t nSim, UINT32 natmode);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

natmode:

[In] NAT mode: 0 enable, 1 disable.

  • Return Value

See Section 3.1.2.

3.11 liot_datacall_get_nat

This function is used to query the NAT mode for the (U)SIM card.

  • Function

liot_datacall_errcode_e liot_datacall_get_nat(uint8_t nSim, UINT32 *natmode);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1.

natmode:

[Out] NAT mode: 0 enabled, 1 disabled.

  • Return Value

See Section 3.1.2.

3.12 liot_ip4addr_ntoa

This function converts an IPv4 address to a string, converting a binary IP address to a human-readable string.

  • Function

CHAR *liot_ip4addr_ntoa(liot_ip4_addr_t *addr);

  • Parameters

addr:

[In] Pointer to IPv4 address. See Section 3.3.4.

  • Return Value

String.

3.13 liot_ip6addr_ntoa

This function converts an IPv6 address to a string, converting a binary IP address to a human-readable string.

  • Function

CHAR *liot_ip6addr_ntoa(liot_ip6_addr_t *addr);

  • Parameters

addr:

[In] Pointer to IPv6 address. See Section 3.3.7.

  • Return Value

String.

3.14 liot_ip4addr_aton

This function converts an IPv4 string to an address, converting a human-readable IPv4 address string to the binary format required for network programming.

  • Function

BOOL liot_ip4addr_aton(CHAR *cp, liot_ip4_addr_t *addr);

  • Parameters

cp:

[In] IPv4 string.

addr:

[Out] Pointer to IPv4 address. See Section 3.3.4.

  • Return Value

true: success, false: failure.

3.15 liot_ip6addr_aton

This function converts an IPv6 string to an address, converting a human-readable IPv6 address string to the binary format required for network programming.

  • Function

BOOL liot_ip6addr_aton(CHAR *cp, liot_ip6_addr_t *addr);

  • Parameters

cp: [In] IPv6 string.

addr: [Out] Pointer to converted IPv6 address.

  • Return Value

true: success, false: failure.

3.16 liot_network_register_cereg_get

This function is used to get the network registration status. It is equivalent to the return value of the underlying CEREG (Cellular Register) status query interface.

  • Function

liot_datacall_errcode_e liot_network_register_cereg_get(uint8_t nSim);

  • Parameters

nSim:

[In] The (U)SIM card in use. If the module supports only 1 (U)SIM interface, this parameter can be set to 0. Value range: 0-1 or 0xFF.

  • Return Value

See Section 3.1.2.

3.17 Liot_PsEventCb

This function registers a callback to receive system network registration, data call, and OOS events.

Liot_PsEventCb is used to monitor overall network status (registration, OOS), while liot_datacall_register_cb focuses on asynchronous response events after the dial interface is invoked.

  • Function

liot_datacall_errcode_e Liot_PsEventCb(Liot_PsEventCallback_t callback);

  • Parameters

callback:

[In] User-registered event notification callback. Notifications are sent when network registration, data call, or OOS events occur.

  • Return Value

See Section 3.1.2.

3.17.1 Liot_PsEventCallback_t

This callback function reports network registration, data call, and OOS events.

  • Declaration

| ```c typedef void (*Liot_PsEventCallback_t)(Liot_PsEvent_e eventId, void *param, UINT32 paramLen);

```

  • Parameters

eventId:

[In] Notification event ID.

Event

Description

LIOT_PS_EVENT_BEARER_ACTED

Network registration successful

LIOT_PS_EVENT_BEARER_DEACTED

Network registration failed

LIOT_PS_EVENT_NETIF_OOS

Out of Service

LIOT_PS_EVENT_NETIF_ACTIVATED

Network interface attach successful

LIOT_PS_EVENT_NETIF_DEACTIVATED

Network interface attach failed

LIOT_PS_EVENT_MAX

Maximum enum value (for boundary check)

param:

[In] Parameter corresponding to the callback event. Currently unused.

paramLen:

[In] Length of the parameter corresponding to the callback event. Currently unused.

3.18 Liot_DataCallCfgDefaultEpsBearer

This function sets or queries the APN and IP type of the default bearer (CID 1).

  • Function

liot_datacall_errcode_e Liot_DataCallCfgDefaultEpsBearer(Liot_DataCallCFG_t *cfg);

  • Parameters

cfg:

[In] Configuration structure.

  • Return Value

See Section 3.1.2.

3.18.1 Liot_DataCallCFG_t

Default bearer configuration structure.

  • Declaration

typedef struct
{
    Liot_DataCallMethod_e method;       ///< Operation method: set or query configuration
    Liot_DataCallIpType_e ip_version;   ///< IP type
    char apn[LIOT_APN_LEN_MAX];         ///< APN string
    uint16_t apn_len;                   ///< Actual length of APN string
} Liot_DataCallCFG_t;

  • Parameters

Type

Parameter

Description

Liot_DataCallMethod_e

method

Operation method: set or query configuration

Liot_DataCallIpType_e

ip_version

IP type to set or query (V4/V6/IPV4V6)

char

apn

APN, maximum 100 bytes

uint16_t

apn_len

Actual length of APN string

3.18.2 Liot_DataCallMethod_e

Operation method enum: set or query configuration.

  • Declaration

typedef enum
{
    LIOT_DATACALL_APN_SET,  ///< Set APN configuration
    LIOT_DATACALL_APN_GET,  ///< Query APN configuration
    LIOT_DATACALL_APN_MAX   ///< Maximum value (for boundary check)
} Liot_DataCallMethod_e;

  • Parameters

Enum Value

Description

LIOT_DATACALL_APN_SET

Set APN configuration

LIOT_DATACALL_APN_GET

Query APN configuration

LIOT_DATACALL_APN_MAX

Maximum value (for boundary check)

3.18.3 Liot_DataCallIpType_e

IP type enum definition.

  • Declaration

typedef enum
{
    LIOT_PS_PDN_TYPE_IP_V4 = 1,  ///< IPv4 type
    LIOT_PS_PDN_TYPE_IP_V6,      ///< IPv6 type
    LIOT_PS_PDN_TYPE_IP_V4V6,    ///< IPv4/IPv6 dual-stack type
    LIOT_PS_PDN_TYPE_NUM         ///< IP type count (used as counter)
} Liot_DataCallIpType_e;

  • Parameters

Enum Value

Description

LIOT_PS_PDN_TYPE_IP_V4

IPv4 type

LIOT_PS_PDN_TYPE_IP_V6

IPv6 type

LIOT_PS_PDN_TYPE_IP_V4V6

IPv4/IPv6 dual-stack type

LIOT_PS_PDN_TYPE_NUM

IP type count (used as counter)

4 Code Examples

Example code can be found in the file examples/demo/src/demo_datacall.c. The following results indicate that all information was obtained successfully:

  • Synchronous mode

    image_1

  • Asynchronous mode

    image_2

5 Glossary

  • PDN Context: Packet Data Network Context is the logical entity for establishing a data channel between the module and the carrier network.

  • CID: profile_idx (CID) is the ID of that channel, typically ranging from 1-7. CID is the identifier required for all subsequent network operations (DNS, Socket), used to identify which channel establishes the data service.

  • APN: Access Point Name is the access point of the carrier network. It is a key parameter for activating a PDN Context. Ensure the APN name is correct.
