RTC Development Guide_Rev1.4

中文

Revision History

Version	Date	Author	Revision Content
Rev1.0	23-09-19	LJZ	Initial document creation
Rev1.1	24-03-25	sxx	Changed document name
Rev1.2	25-04-18	ZH	Added common issues section
Rev1.3	25-05-14	LJZ	1. Optimized document format 2. Added common issues section
Rev1.4	26-01-27	LJZ	Added new interface Liot_GetTimestamp()

1 Introduction

This document introduces the LTE-EC71X RTC interface APIs. The API interfaces are declared in the file components/kernel/lierda_api/liot_rtc/liot_rtc.h.

2 API Function Overview

Function	Description
liot_rtc_set_time()	Set RTC time
liot_rtc_get_time()	Get RTC time
liot_rtc_get_time_s()	Get RTC time converted to seconds
liot_rtc_get_localtime()	Get local RTC time
liot_rtc_set_timezone()	Set timezone, in units of 15 minutes
liot_rtc_get_timezone()	Get timezone, in units of 15 minutes
liot_rtc_print_time()	Print RTC time
liot_rtc_set_alarm()	Set RTC alarm time
liot_rtc_get_alarm()	Get RTC alarm time
liot_rtc_enable_alarm()	Enable and disable RTC alarm
liot_rtc_register_cb()	Register RTC alarm callback function
Liot_GetTimestamp()	Get RTC time converted to milliseconds

3 Type Descriptions

3.1 liot_errcode_rtc_e

RTC API execution result error codes.

1. Definition

typedef enum
{
    LIOT_RTC_SUCCESS = LIOT_SUCCESS,

    LIOT_RTC_INVALID_PARAM_ERR = 1 | LIOT_RTC_ERRCODE_BASE,
    LIOT_RTC_SET_TIME_ERROR,
    LIOT_RTC_GET_TIME_ERROR,
    LIOT_RTC_SET_CB_ERR,
    LIOT_RTC_ENABLE_ALARM_ERR,
    LIOT_RTC_REMOVE_ALARM_ERR,
    LIOT_RTC_GET_FUNC_ERR,
} liot_errcode_rtc_e;

2. Parameters

• LIOT_RTC_SUCCESS: Function executed successfully.

• LIOT_RTC_INVALID_PARAM_ERR: Invalid input parameter.

• LIOT_RTC_SET_TIME_ERROR: Error setting RTC time.

• LIOT_RTC_GET_TIME_ERROR: Error getting RTC time.

• LIOT_RTC_SET_CB_ERR: Error registering callback function.

• LIOT_RTC_ENABLE_ALARM_ERR: Error enabling alarm.

• LIOT_RTC_REMOVE_ALARM_ERR: Error removing alarm.

• LIOT_RTC_GET_FUNC_ERR: RTC API function not recognized.

3.2 liot_rtc_time_s

RTC time structure is defined as follows:

1. Definition

typedef struct liot_rtc_time_struct
{
    int tm_sec;  // seconds [0,59]
    int tm_min;  // minutes [0,59]
    int tm_hour; // hour [0,23]
    int tm_mday; // day of month [1,31]
    int tm_mon;  // month of year [1,12]
    int tm_year; // year [2000-2100]
    int tm_wday; // wday [0-6],sunday = 0,this value has no effect when setting the time
} liot_rtc_time_s;

2. Parameters

Type	Parameter	Description
int	tm_sec	Seconds. Range: 0 ~ 59.
int	tm_min	Minutes. Range: 0 ~ 59.
int	tm_hour	Hour. Range: 0 ~ 23.
int	tm_mday	Day. Range: 1 ~ 31.
int	tm_mon	Month. Range: 1 ~ 12.
int	tm_year	Year. Range: 2000 ~ 2100.
int	tm_wday	Day of the week. Range: 0 ~ 6, 0 is Sunday.

4 API Function Details

4.1 liot_rtc_set_time

This function is used to set RTC time.

1. Declaration

liot_errcode_rtc_e liot_rtc_set_time(liot_rtc_time_s *tm);

2. Parameters

• tm: [In] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.2 liot_rtc_get_time

This function is used to get RTC time.

1. Declaration

liot_errcode_rtc_e liot_rtc_get_time(liot_rtc_time_s *tm);

2. Parameters

• tm: [Out] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.3 liot_rtc_get_time_s

This function is used to convert the obtained RTC time to seconds. The time base starts from January 1, 1970 00:00:00 UTC.

1. Declaration

INT32 liot_rtc_get_time_s(void);

2. Return Value

• INT32: RTC time converted to seconds.

4.4 liot_rtc_get_localtime

This function is used to get local RTC time. For example, if currently in East 8 timezone, using this interface will return the time after timezone offset calculation.

1. Declaration

liot_errcode_rtc_e liot_rtc_get_localtime(liot_rtc_time_s *tm);

2. Parameters

• tm: [Out] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.5 liot_rtc_set_timezone

This function is used to set timezone.

1. Declaration

liot_errcode_rtc_e liot_rtc_set_timezone(int timezone);

2. Parameters

• timezone: [In] Set timezone, timezone parameter range: [-48, +56]. In units of 15 minutes, for example: timezone 8 (East 8) corresponds to the value 8 x 4 = 32.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.6 liot_rtc_get_timezone

This function is used to get timezone.

1. Declaration

liot_errcode_rtc_e liot_rtc_get_timezone(int *timezone);

2. Parameters

• timezone: [Out] Timezone value, range: [-48, +56]. In units of 15 minutes, for example: timezone 8 (East 8) corresponds to the value 8 x 4 = 32.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.7 liot_rtc_print_time

This function is used to print RTC time to log port.

1. Declaration

liot_errcode_rtc_e liot_rtc_print_time(liot_rtc_time_s tm);

2. Parameters

• tm: [In] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.8 liot_rtc_set_alarm

This function is used to set RTC alarm time. Currently, only one alarm can be set and the alarm time is not saved after power loss. If you need to wake up periodically in low-power mode, please refer to low-power-mode.md and use the liot_deepslp_timer series interfaces.

1. Declaration

liot_errcode_rtc_e liot_rtc_set_alarm(liot_rtc_time_s *tm);

2. Parameters

• tm: [In] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.9 liot_rtc_get_alarm

This function is used to get RTC alarm time. The current time is not saved after power loss.

1. Declaration

liot_errcode_rtc_e liot_rtc_get_alarm(liot_rtc_time_s *tm);

2. Parameters

• tm: [Out] Time structure.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.10 liot_rtc_enable_alarm

This function is used to enable and disable RTC alarm. Before enabling the alarm, you need to set the time through liot_rtc_set_alarm and register the callback through liot_rtc_register_cb for when the time is reached.

1. Declaration

liot_errcode_rtc_e liot_rtc_enable_alarm(unsigned char on_off);

2. Parameters

• on_off: [In] Switch, values 1 and 0, 1 means enable, 0 means disable.

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.11 liot_rtc_register_cb

This function is used to register RTC alarm callback function.

1. Declaration

liot_errcode_rtc_e liot_rtc_register_cb(liot_rtc_cb cb);

2. Parameters

• cb: [In] Alarm callback function. liot_rtc_cb definition: typedef void (*liot_rtc_cb)(void);

3. Return Value

• liot_errcode_rtc_e: Execution result code, see 3.1 for reference.

4.12 Liot_GetTimestamp

This function is used to convert the obtained RTC time to milliseconds.

1. Declaration

INT32 Liot_GetTimestamp(uint64_t *timestamp);

2. Parameters

• timestamp: [Out] RTC time converted to milliseconds.

1. Return Value

• INT32: 0 success, -1 parameter error.

5 Code Example

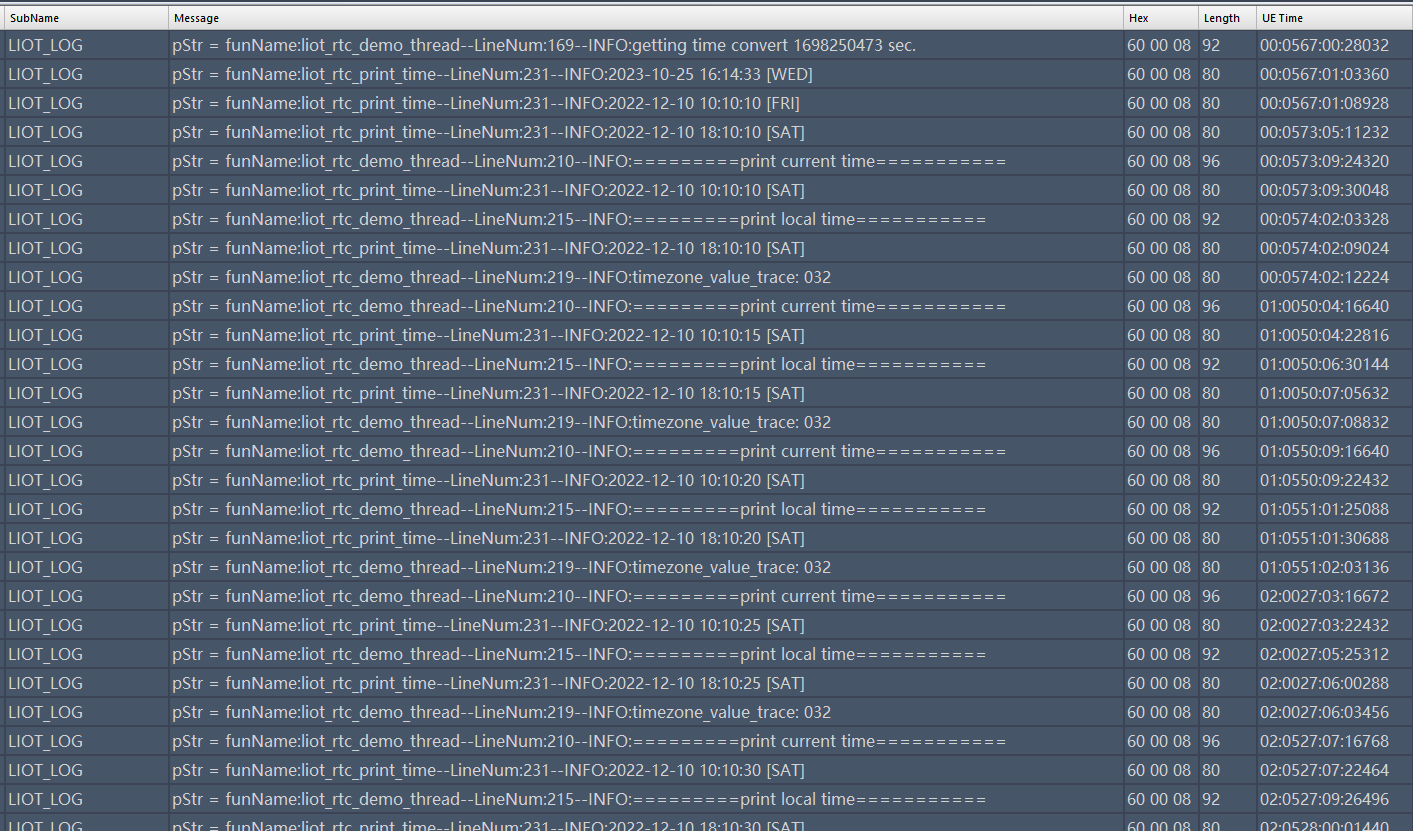

1. Refer to the examples/demo/src/demo_rtc.c file for sample code. The following execution result indicates that all information was obtained normally:

6 Common Issues

6.1 What is the Accuracy of EC718 32K Clock?

When only the internal RTC is working, without calibration, the error is relatively large, approximately a few minutes over 24 hours. The 32K RTC needs calibration. To obtain accurate time, synchronization with the network is required. You can enable base station time synchronization function through liot_nw_set_ctzu_switch or actively synchronize time using liot_ntp_sync.

6.2 Alarm Support in Low Power Mode

Currently, alarm wakeup is not supported in low power modes (such as PSM, HIBERNATE). If you need to wake up periodically in low power mode, please refer to low-power-mode.md and use the liot_deepslp_timer series interfaces.
