ADC Development Guide_Rev1.0

中文

Document Revision History

Version

Date

Author

Changes

Rev1.0

2023-09-11

WTY

Initial Release

Rev1.1

2024-03-25

SXX

Renamed document

Rev1.2

2024-08-28

ZLC

Added reference voltage description

Rev1.3

2024-10-23

YMX

Adjusted document format, added voltage and temperature range description

Rev1.4

2025-02-12

ZLC

Added EC716 liot_adc_resdiv_e description

Rev1.4

2025-04-18

ZLC

Added description for EC718 series internal and external voltage divider usage

Rev1.5

2025-04-18

ZH

Added common FAQ section

Rev1.6

2025-08-22

ZLC

Modified internal/external voltage reference description

Rev1.7

2026-04-23

LJZ

Document optimization. Modified introduction, added voltage range and error.

1 Introduction

This document describes the NT26 series ADC interface APIs, which are declared in the components/kernel/lierda_api/liot_adc/liot_adc.h file.

1.1 Module ADC Resource Overview

  • NT26-KCN (EC716): 4 ADC channels

    • 2 external AIO voltage detection channels

    • 1 internal temperature sensor channel

    • 1 VBAT battery voltage detection channel

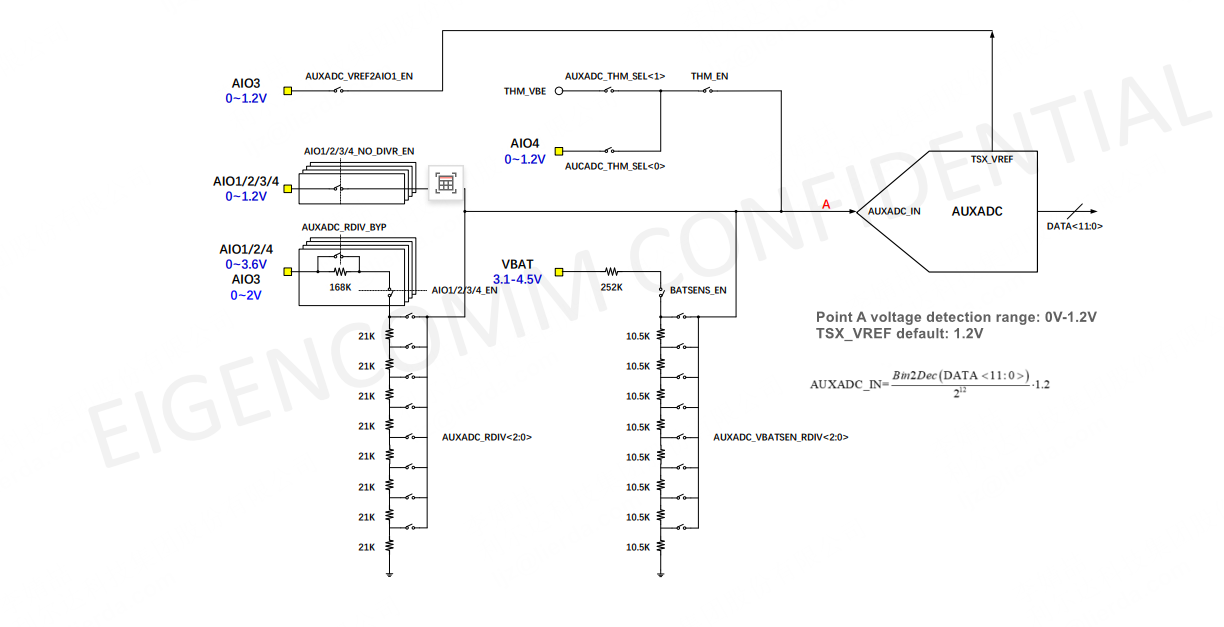

The following shows the internal voltage divider resistance values for the 716 series platform:

_images/adc-guide/image_1.png

Module Channel

Description

External Input Voltage Range

Error

ADC0~1

Signal enters AUXADC input directly without voltage division, suitable for external voltage divider

0V ~ 1.2V

Within ±2mV at room temperature

ADC0~1

Through internal voltage divider, final AUXADC input voltage remains within 0-1.2V

0V ~ 3.6V

Within ±20mV at room temperature

VBAT Channel

VBAT voltage reaches AUXADC input through voltage divider circuit

3.1V ~ 4.5V

Within ±20mV at room temperature

Temperature Sensor

Internal chip temperature detection

-40°C ~ 85°C

Approximately 0.1%

  • NT26-FCN (EC718): 6 ADC channels

    • 4 external AIO voltage detection channels

    • 1 internal temperature sensor channel

    • 1 VBAT battery voltage detection channel

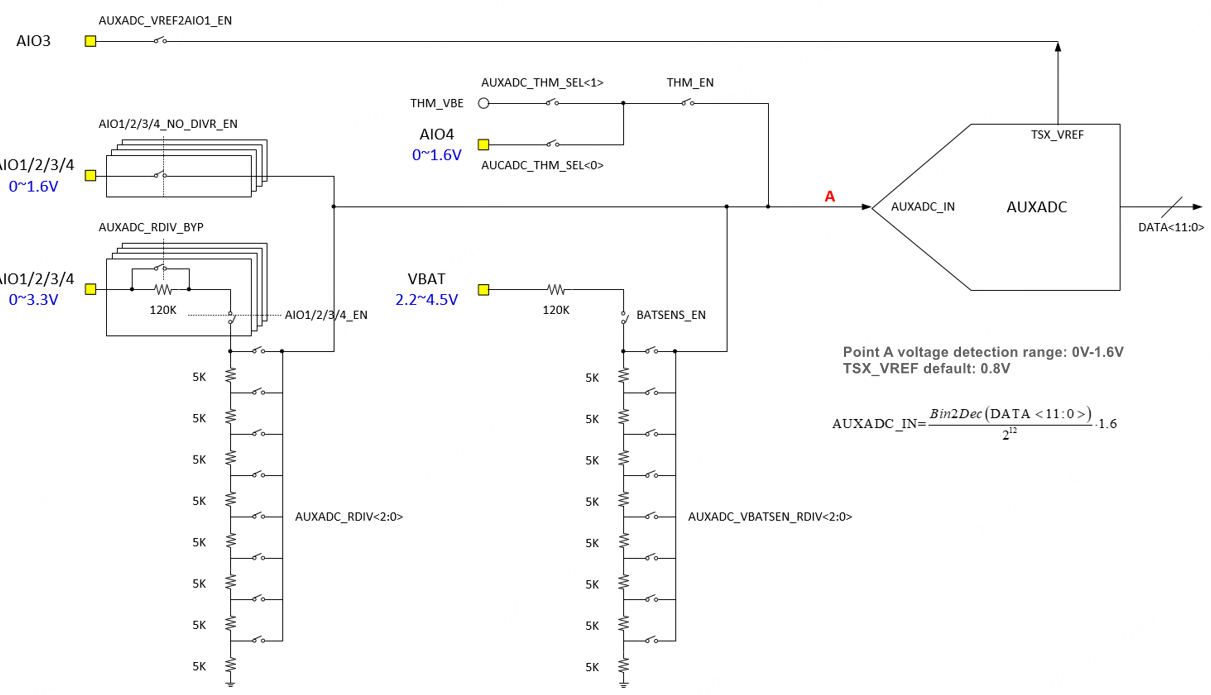

The following shows the internal voltage divider resistance values for the 718 series platform:

_images/adc-guide/image_2.png

Module Channel

Description

External Input Voltage Range

Error

ADC0~3

Signal enters AUXADC input directly without voltage division, suitable for external voltage divider

0V ~ 1.6V

Within ±2mV at room temperature

ADC0~3

Through internal voltage divider, final AUXADC input voltage remains within 0-1.6V

0V ~ 3.3V

Within ±20mV at room temperature

VBAT Channel

VBAT voltage reaches AUXADC input through voltage divider circuit, recommended divider ratio 4/16

2.2V ~ 4.8V

Within ±20mV at room temperature

Temperature Sensor

Internal chip temperature detection

-40°C ~ 85°C

Approximately 0.1%

Overvoltage Warning: Exceeding the voltage range will cause sampling distortion and accuracy failure. In severe cases, it will burn the ADC and analog circuits, which cannot be repaired.

2 API Function Overview

Function

Description

liot_adc_get_volt()

Read the analog voltage value from an ADC channel

liot_adc_get_volt_raw()

Read the raw analog voltage data from an ADC channel

3 Type Definitions

3.1 liot_adc_errcode_e

ADC API execution result error codes.

Declaration:

typedef enum
{
    LIOT_ADC_SUCCESS             = 0,
    LIOT_ADC_INVALID_PARAM_ERR   = 10 | (LIOT_COMPONENT_BSP_ADC << 16),
    LIOT_ADC_GET_VALUE_ERROR     = 50 | (LIOT_COMPONENT_BSP_ADC << 16),
    LIOT_ADC_MEM_ADDR_NULL_ERROR = 60 | (LIOT_COMPONENT_BSP_ADC << 16),
    LIOT_ADC_TASK_ERROR,
} liot_adc_errcode_e;

Parameters:

  • LIOT_ADC_SUCCESS: Read successful.

  • LIOT_ADC_INVALID_PARAM_ERR: Invalid parameter.

  • LIOT_ADC_GET_VALUE_ERROR: Read failed.

  • LIOT_ADC_MEM_ADDR_NULL_ERROR: Pointer address is NULL.

  • LIOT_ADC_TASK_ERROR: ADC task error.

3.2 liot_adc_chan_id_e

ADC conversion channel selection.

Declaration:

typedef enum
{
    LIOT_ADC0_CHANNEL,
    LIOT_ADC1_CHANNEL,
    LIOT_ADC2_CHANNEL,
    LIOT_ADC3_CHANNEL,
    LIOT_ADC_THERMAL_CHANNEL,
    LIOT_ADC_VBAT_CHANNEL,
    LIOT_ADC_CHANNEL_MAX,
} liot_adc_chan_id_e;

Parameters:

  • LIOT_ADC0_CHANNEL: ADC0 channel

  • LIOT_ADC1_CHANNEL: ADC1 channel

  • LIOT_ADC2_CHANNEL: ADC2 channel

  • LIOT_ADC3_CHANNEL: ADC3 channel

  • LIOT_ADC_THERMAL_CHANNEL: Internal temperature sensor channel

  • LIOT_ADC_VBAT_CHANNEL: Power supply voltage channel

  • LIOT_ADC_CHANNEL_MAX: ADC channel count (this parameter is not usable)

3.3 liot_adc_resdiv_e

ADC voltage divider selection.

Notes:

  • The temperature sensor has no voltage divider.

  • VBAT detection uses internal voltage divider 6/32, modification is not currently supported.

  • ADC 0~3 voltage divider ratios differ between 718 series and 716 series, see enumeration values below.

  • LIOT_ADC_AIO_RESDIV_BYPASS is the external voltage divider mode; all others are internal voltage divider modes.

  • For EC718 non-PM series, when using internal voltage divider, LIOT_ADC_AIO_RESDIV_RATIO_1OVER32 ~ LIOT_ADC_AIO_RESDIV_RATIO_8OVER32 can be used, while LIOT_ADC_AIO_RESDIV_RATIO_12OVER32 ~ LIOT_ADC_AIO_RESDIV_RATIO_28OVER32 cannot be used as they will cause internal chip overvoltage.

Declaration:

// EC718
typedef enum
{
    LIOT_ADC_AIO_RESDIV_RATIO_1        = 0U,  /**< ADC AIO RESDIV select as VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_28OVER32 = 1U,  /**< ADC AIO RESDIV select as 28/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_24OVER32 = 2U,  /**< ADC AIO RESDIV select as 24/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_20OVER32 = 3U,  /**< ADC AIO RESDIV select as 20/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_16OVER32 = 4U,  /**< ADC AIO RESDIV select as 16/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_12OVER32 = 5U,  /**< ADC AIO RESDIV select as 12/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_8OVER32  = 6U,  /**< ADC AIO RESDIV select as 8/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_7OVER32  = 7U,  /**< ADC AIO RESDIV select as 7/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_6OVER32  = 8U,  /**< ADC AIO RESDIV select as 6/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_5OVER32  = 9U,  /**< ADC AIO RESDIV select as 5/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_4OVER32  = 10U, /**< ADC AIO RESDIV select as 4/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_3OVER32  = 11U, /**< ADC AIO RESDIV select as 3/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_2OVER32  = 12U, /**< ADC AIO RESDIV select as 2/32 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_1OVER32  = 13U, /**< ADC AIO RESDIV select as 1/32 VIN */
    LIOT_ADC_AIO_RESDIV_BYPASS         = 14U, /**< BYPASS the whole ADC AIO RESDIV network(direct input) */
} liot_adc_resdiv_e;

// EC716
typedef enum
{
    LIOT_ADC_AIO_RESDIV_RATIO_1          = 0U,  /**< ADC AIO RESDIV select as VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_14OVER16   = 1U,  /**< ADC AIO RESDIV select as 14/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_12OVER16   = 2U,  /**< ADC AIO RESDIV select as 12/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_10OVER16   = 3U,  /**< ADC AIO RESDIV select as 10/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_8OVER16    = 4U,  /**< ADC AIO RESDIV select as 8/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_7OVER16    = 5U,  /**< ADC AIO RESDIV select as 7/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_6OVER16    = 6U,  /**< ADC AIO RESDIV select as 6/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_5OVER16    = 7U,  /**< ADC AIO RESDIV select as 5/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_4OVER16    = 8U,  /**< ADC AIO RESDIV select as 4/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_3OVER16    = 9U,  /**< ADC AIO RESDIV select as 3/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_2OVER16    = 10U, /**< ADC AIO RESDIV select as 2/16 VIN */
    LIOT_ADC_AIO_RESDIV_RATIO_1OVER16    = 11U, /**< ADC AIO RESDIV select as 1/16 VIN */
    LIOT_ADC_AIO_RESDIV_BYPASS           = 12U, /**< BYPASS the whole ADC AIO RESDIV network(direct input) */
} liot_adc_resdiv_e;

Parameters:

  • LIOT_ADC_AIO_RESDIV_RATIO_1: AIO voltage divider selects input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_28OVER32: AIO voltage divider selects 28/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_24OVER32: AIO voltage divider selects 24/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_20OVER32: AIO voltage divider selects 20/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_16OVER32: AIO voltage divider selects 16/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_12OVER32: AIO voltage divider selects 12/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_8OVER32: AIO voltage divider selects 8/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_7OVER32: AIO voltage divider selects 7/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_6OVER32: AIO voltage divider selects 6/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_5OVER32: AIO voltage divider selects 5/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_4OVER32: AIO voltage divider selects 4/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_3OVER32: AIO voltage divider selects 3/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_2OVER32: AIO voltage divider selects 2/32 input voltage

  • LIOT_ADC_AIO_RESDIV_RATIO_1OVER32: AIO voltage divider selects 1/32 input voltage

  • LIOT_ADC_AIO_RESDIV_BYPASS: AIO voltage divider bypasses internal divider network

4 API Function Details

4.1 liot_adc_get_volt

This function reads the analog voltage value from an ADC channel without internal voltage division.

Declaration:

liot_adc_errcode_e liot_adc_get_volt(liot_adc_chan_id_e liot_adc_channel_id, int *adc_value);

Parameters:

  • liot_adc_channel_id: [in] Specifies the ADC channel. See Section 3.2 for the mapping between ADC channels and physical ADC channels;

  • adc_value: [out] Measured voltage value. Unit: mV.

Temperature detection returns the actual value. For example, a reading of 33 means the actual temperature is 33°C. Temperature detection range: -40°C ~ 85°C.

Voltage detection return value divided by 1000 gives the actual voltage. For example, a reading of 3811 means the actual voltage is 3.811V. Detection range: covers the module’s operating voltage range.

Return value:

liot_adc_errcode_e: Execution result code, see Section 3.1.

Note: Temperature detection requires SDK version >= V4.01

4.2 liot_adc_get_volt_raw

This function reads the raw analog voltage data from an ADC channel after internal voltage division.

Declaration:

liot_adc_errcode_e liot_adc_get_volt_raw(liot_adc_chan_id_e liot_adc_channel_id, liot_adc_resdiv_e liot_adc_div, int *adc_value);

Parameters:

  • liot_adc_channel_id: [in] Specifies the ADC channel. See Section 3.2 for the mapping between ADC channels and physical ADC channels;

  • liot_adc_div: [in] ADC internal voltage divider selection. See Section 3.3;

  • adc_value: [out] Measured voltage value after internal voltage division. Unit: mV.

Return value:

liot_adc_errcode_e: Execution result code, see Section 3.1.

5 Code Example

Example code can be found in the examples/demo/src/demo_adc.c file.

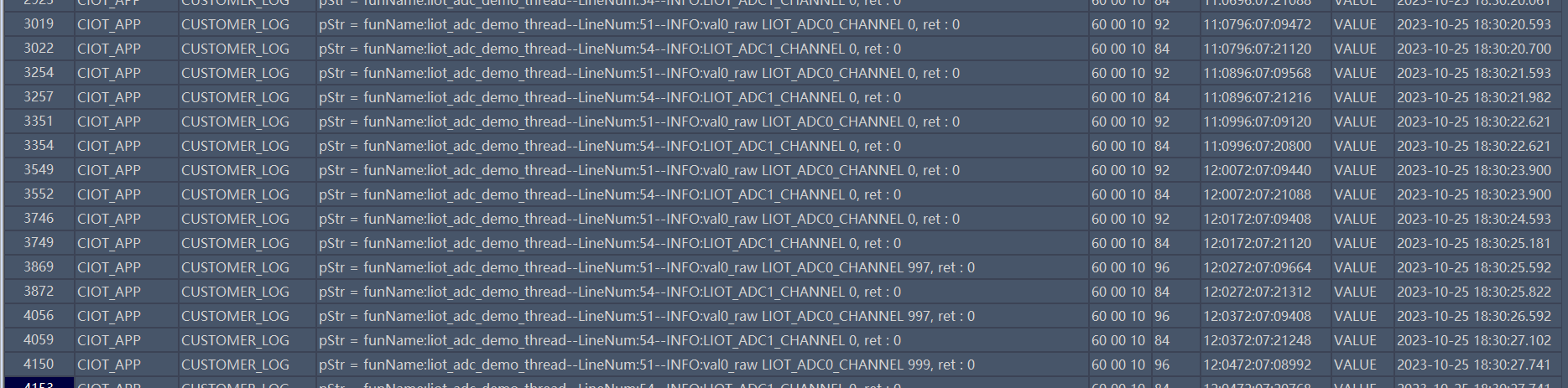

Running result:

_images/adc-guide/image_3.png

6 FAQ

6.1 What is the ADC accuracy?

See the Module ADC Resource Overview section for details.

6.2 Can ADC pins sample when floating?

ADC pin floating:

  1. If internal voltage divider is not selected, the ADC internal state is high impedance, and the input voltage is undefined. Without external ADC signal input, it may detect 100mV+ voltage.

  2. If internal voltage divider is selected, the ADC divider path is a low impedance path, and the sampled voltage when the ADC pin is floating will be close to 0mV.
