RTOS Development Guide_Rev1.0

Document Revision History

Version	Date	Author	Changes
Rev1.0	23-09-12	CLY	Created document
Rev1.1	24-03-25	sxx	Renamed document
Rev1.2	24-10-08	ymx	Optimized document structure, added `liot_rtos_task_delete()` NULL parameter description, removed full demo code sample from final chapter
Rev1.3	24-12-12	ymx	Removed all function links to solve DingTalk/Feishu link issues
Rev1.4	26-01-27	ljz	Added interface `liot_rtos_calloc()`
Rev1.5	26-04-22	mbb	Reformatted layout, added platform RTOS architecture description, RTOS core concepts, demo examples, and quick start guide

1 Introduction

This document describes the LTE-EC71X RTOS API information. The API declarations are located in components/kernel/lierda_api/liot_os/liot_os.h.

1.1 RTOS Core Architecture

1.1.1 Overall Architecture Overview

The RTOS software stack uses a layered design. From bottom to top it consists of the hardware adaptation layer, kernel layer, and abstraction/wrapper layer. Each layer has clear responsibilities, balancing the performance demands of low-level hardware with the development efficiency of upper-layer applications.

┌─────────────────────────────────────────────────────────┐
│                    Application Layer                    │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │ Business Task 1 │  │ Business Task 2 │  │    Business Task N   │  │
│  └─────────────┘  └─────────────┘  └─────────────────┘  │
└─────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────┐
│           Lierda Application Abstraction Layer          │
│                  (liot_os / OSAL)                       │
│  (Hides low-level differences and provides type-safe,   │
│   easy-to-use standardized APIs)                        │
└─────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────┐
│         Platform Adaptation Layer (BSP modified         │
│                    FreeRTOS)                            │
│   (Based on Kernel V9.0.0a, deeply customized for EC    │
│    Cat.1 hardware)                                      │
└─────────────────────────────────────────────────────────┘

1.1.2 Two-Layer Architecture Details

1.1.2.1 Platform Adaptation Layer: Customized FreeRTOS Kernel

Location: components/thirdparty/freertos
Baseline version: FreeRTOS Kernel V9.0.0a
Customization goal: deeply adapt to the hardware features and system resource constraints of the Yixin EC CAT1 series chips.

Major changes:

Memory management subsystem enhancement:
- Integrated memory debug hooks, supporting heap leak detection and boundary checks.
- Implemented standard TLSF algorithm for efficient dynamic management of external RAM.
- Customized optimization for EC718PM PSRAM characteristics, expanding usable memory and adding exception handling.
Debug and observability support:
- Integrated a unified debug log interface and provided a CMSIS-RTOS v2 compatibility layer for easier integration with ecosystem toolchains.
Platform hardware abstraction definitions:
- Defined platform-specific configuration macros and memory layout.
- Reserved interfaces for future multi-core support.

1.1.2.2 Application Abstraction Layer: Lierda Wrapper Interface

Location: components/kernel/lierda_api/liot_os
Design goal: provide terminal developers a standardized, type-safe, easy-to-integrate OS abstraction layer.

Core features:

Simplified interface contract: reduced required parameters and defined a unified error code return mechanism.
Strong type constraints: introduced opaque handle types such as liot_task_t to prevent direct manipulation of kernel data structures.
Document standardization: follows Doxygen comment conventions and provides detailed Chinese explanations and examples.
Platform independence: abstracts lower-level calls to improve cross-platform portability.

1.1.2.3 Two-Layer Architecture vs. Native FreeRTOS

Dimension	Native FreeRTOS Interface	Yixin Hardware Adaptation Layer (BSP)	Yixin Application Abstraction Layer (Lierda OSAL)
Abstraction level	Kernel-level	Board support package	Application framework layer
Usage complexity	High	Medium	Low
Configuration flexibility	Very high	Medium (limited by hardware features)	Lower (focused on application logic)
Usability and safety	Lower (requires deep kernel understanding)	Medium (requires understanding memory mapping)	Higher (strong typing and default parameter protection)
Typical use case	Kernel development, extreme tuning	Driver porting, board-level management	Business logic development, rapid prototyping

1.2 RTOS Core Concepts

RTOS is the real-time operating system kernel for embedded systems. This module uses a FreeRTOS-wrapped implementation. Core concepts are as follows:

1.2.1 Task Scheduling Mechanism

A task is the basic execution unit in RTOS. All user business code should run inside tasks. The core scheduling rules are:

Preemptive priority scheduling: when a higher-priority task becomes ready, it immediately preempts the currently running lower-priority task.
Time-sliced round-robin for same priority: tasks with the same priority are scheduled in a time-slice loop, with a 1 ms time slice. Interrupt-triggered scheduling: after an ISR completes, if it wakes a higher-priority task, context switch occurs immediately.
API-triggered scheduling: calling liot_rtos_task_yield() (voluntary yield), liot_rtos_task_sleep_ms() / liot_rtos_task_sleep_s() (sleep), etc. triggers the scheduler to select the highest-priority ready task.
Task priority limits: tasks involving audio operations should not exceed priority 23; tasks not involving audio should not exceed priority 25. Do not perform complex business logic in ISRs to avoid blocking the system.

Task State Transition Diagram

                    liot_rtos_task_create()
                           │
                           ▼
     ┌──────────────────────────────────┐
     │            Ready                 │◄─────────────────────────┐
     └───────────────┬──────────────────┘                          │
                     │ Scheduler selects (highest priority)         │
                     ▼                                             │
     ┌──────────────────────────────────┐  Time slice expired/     │
     │            Running               │  yield/higher ready      │
     └──┬─────────────┬─────────────┬───┘─────────────────────────┘
        │             │             │
        │ sleep/      │             │ liot_rtos_task_suspend()
        │ wait/lock   │             │
        ▼             │             ▼
 ┌──────────────┐     │     ┌────────────────────┐
 │   Blocked    │     │     │     Suspended      │
 └──────┬───────┘     │     └─────────┬──────────┘
        │             │               │
 Timeout/semaphore    │  liot_rtos_task_resume()
 released/event met   │               │
        │             │               │
        └─────────────┼───────────────┘
                      │         │
                      │         └───► Back to Ready
                      │
                      │ liot_rtos_task_delete()
                      ▼
     ┌──────────────────────────────────┐
     │            Deleted               │
     └──────────────────────────────────┘

1.2.2 Blocking APIs vs Non-blocking APIs

Type	Characteristics	Typical API	Use Case
Blocking	If conditions are not met, the task blocks until the condition is met or timeout occurs	`liot_rtos_semaphore_wait(..., timeout)`, `liot_rtos_mutex_lock(..., timeout)`, `liot_rtos_queue_wait(..., timeout)`, `liot_rtos_flag_wait(..., timeout)`, `liot_rtos_task_sleep_ms()`	Task synchronization, data reception, timed sleep
Non-blocking	If conditions are not met, the API returns immediately with an error code	`liot_rtos_semaphore_wait(..., LIOT_NO_WAIT)`, `liot_rtos_mutex_lock(..., LIOT_NO_WAIT)`, `liot_rtos_semaphore_get_cnt()`, `liot_rtos_flag_get()`	Polling status checks, quick resource availability checks

1.2.3 Inter-task Communication Mechanisms and Selection Principles

1.2.3.1 Semaphore

Primary function: synchronization and counting.

Use cases:

Binary semaphore: used for task notification or triggers. For example, an ISR signals that data is ready for a processing task.
Counting semaphore: used to manage multiple shared resources. For example, limit the number of tasks simultaneously accessing a hardware peripheral.

1.2.3.2 Mutex

Primary function: resource protection and mutual exclusion.

Use cases: ensure only one task accesses a shared resource at the same time (e.g., global variables, UART printing, I2C bus).

Features: compared to semaphores, mutexes support priority inheritance, effectively preventing priority inversion in RTOS.

Priority inversion example:

Without mutex (using binary semaphore to protect resource):

Time ─────────────────────────────────────────────────────────────────────────────►

Task H (high)  ·····waiting·····│·········blocked (resource held by L)················│
Task M (mid)                    │                        ████ preempts L ███████████│
Task L (low)   ████████████████│holds resource████████████ preempted by M ──────────│

Problem: Task M preempts Task L while L holds the resource,
         indirectly blocking higher-priority Task H.

With mutex (priority inheritance mechanism):

Time ─────────────────────────────────────────────────────────────────────────────►

Task H (high)  ·····waiting for mutex····│····blocked····│ acquires mutex ██████████████│
Task M (mid)                             │              │ cannot preempt (L inherited H's priority) ──│
Task L (low)   █████████████████████████│inherits H pri██│ releases mutex (reverts priority)          │

Effect: Task L inherits Task H's priority while holding the mutex,
        Task M cannot preempt, Task H acquires the resource ASAP.

1.2.3.3 Message Queue

Primary function: data transfer.

Use cases: when a task needs to send concrete data (not just a signal) to another task. Queues support asynchronous communication: tasks can enqueue messages and continue without waiting for the receiver.

1.2.3.4 Event Group (Flag)

Primary function: multi-event logic synchronization and notification (many-to-one synchronization). Unlike semaphores, event groups can use bitwise AND/OR logic, allowing one task to wait on multiple event combinations.

Use cases:

AND logic synchronization: task runs only when all conditions are met.
OR logic synchronization: task runs when any trigger occurs.
Event broadcast: one event can wake multiple tasks waiting on different bits within the event group.

1.2.4 Synchronization Mechanism Selection Guidelines

Choose the appropriate synchronization mechanism based on business scenarios. The following decision table is for reference:

Scenario	Recommended mechanism	Reason
ISR notifies task (single event)	Semaphore (`liot_rtos_semaphore_release` / `wait`)	Safe to release in ISR, task blocks and waits, lowest overhead
ISR passes data to task	Message queue (`liot_rtos_queue_release` / `wait`)	Supports passing concrete data and buffering multiple interrupt events
Multi-condition sync (any condition)	Event group OR (`liot_rtos_flag_wait(..., LIOT_FLAG_OR_CLEAR)`)	One task can listen to multiple event sources and wake on any trigger
Multi-condition sync (all conditions)	Event group AND (`liot_rtos_flag_wait(..., LIOT_FLAG_AND_CLEAR)`)	Task waits until all preconditions are ready
Shared resource protection	Mutex (`liot_rtos_mutex_lock/unlock`)	Supports priority inheritance and ensures one task accesses the resource exclusively
Multiple tasks share one notification	Event group broadcast (`liot_rtos_flag_release(..., LIOT_FLAG_OR)`)	One setting wakes multiple waiting tasks
Counting / rate limiting	Counting semaphore (`liot_rtos_semaphore_create_ex`)	Limits concurrent access to a resource, such as connection pool management

1.2.5 Heap Memory

Memory Allocation Architecture

┌──────────────────────────────────────────────────────────────────────┐
│                     Application Layer Memory Usage                    │
├────────────────────────┬──────────────────┬──────────────────────────┤
│ liot_rtos_malloc/free  │ Static task stack │ PSRAM dynamic allocation │
│ liot_rtos_realloc      │ (global arrays,  │ (EC718PM series only)    │
│ liot_rtos_calloc       │  user pre-alloc) │                          │
│ (System heap - SRAM)   │                  │                          │
├────────────────────────┴──────────────────┼──────────────────────────┤
│        FreeRTOS heap (TLSF algorithm)      │     PSRAM heap (TLSF)    │
├────────────────────────────────────────────┼──────────────────────────┤
│              SRAM (on-chip)                 │       PSRAM (off-chip)   │
└────────────────────────────────────────────┴──────────────────────────┘

System heap (SRAM): allocated via liot_rtos_malloc() and similar APIs; dynamically created task stacks and TCBs are also allocated from here.
PSRAM heap: only supported on EC718PM series, used for large data buffer scenarios; query usage via liot_psram_xPortGet* series APIs.
Static task stack: use liot_rtos_task_create_static() with user-preallocated global arrays/static variables as the task stack, no system heap allocation.
Task stack: each dynamically created task allocates an independent stack from the system heap; stack size is specified at creation time.

Current heap memory allocation status is as follows:

Base package model	F6B_A	F6D_A	F7B_A	K2B_A	K2F_A
Supported module model	NT26FCNB60WNA	NT26FCND60NNA NT26FEUD60NNA NT26F6D0	NT26FCNB70WNA	NT26K2B1	NT26KCNF20NNA
Chip type	EC718pm	EC718pm	EC718pm	EC716e	EC716e
Total RAM	4 MB	4 MB	4 MB	2 MB	2 MB
Available RAM	1 MB	1 MB	1 MB	512 KB	512 KB
PSRAM	Supported	Supported	Supported	Not supported	Not supported

1.3 Interrupt Context Development Constraints

The interaction between ISRs and tasks is a critical part of embedded development. The Lierda OS wrapper layer automatically detects interrupt context and adapts API calls to the FromISR versions when needed.

1.3.1 APIs Allowed in ISR

Category	Available API	Behavior description
Semaphore	`release()`, `wait(LIOT_NO_WAIT)`, `get_cnt()`	Non-blocking and safe to release and wake tasks
Message queue	`release()`, `wait(LIOT_NO_WAIT)`, `get_cnt()`	Send data to queue, non-blocking receive
Event group	`release()`, `clear()`, `get()`	Set/clear flags
System	`get_system_tick()`, `enter/exit_critical_from_isr()`	Get time, critical section protection

1.3.2 APIs Forbidden in ISR

The following APIs involve memory allocation, task scheduling, or blocking operations and must not be called from ISRs:

Create/delete operations: create, delete (involve dynamic memory allocation, unsafe in interrupts).
Blocking operations: sleep, mutex_lock, flag_wait (ISRs cannot block or sleep).
Control operations: task_suspend, task_resume, change_priority (involve task list traversal).

1.3.3 Typical ISR-to-Task Interaction Patterns

Best practices:

Do as little work as possible in the ISR: read registers, release semaphores, send queues, or set event flags.
Perform complex processing in a task: wake a business task via IPC from the ISR.

ISR-to-Task Minimal Example

static liot_sem_t isr_sem = NULL;

// ISR: only release semaphore
void EXTI_IRQHandler(void)
{
    // Clear interrupt flag (hardware-specific)
    // ...

    // Release semaphore to wake processing task
    liot_rtos_semaphore_release(isr_sem);
}

// Business task: blocks waiting for ISR notification, then performs lengthy processing
void data_process_task(void *pvParameters)
{
    for (;;)
    {
        if (liot_rtos_semaphore_wait(isr_sem, LIOT_WAIT_FOREVER) == LIOT_OSI_SUCCESS)
        {
            // Execute time-consuming business logic here (forbidden in ISR)
            // e.g., data parsing, protocol handling, storage writes, etc.
        }
    }
}

Preemption Scheduling Timing

Time ─────────────────────────────────────────────────────►

Low-priority task (running)  ████████████
                                        │ Interrupt occurs
                                        ▼
ISR executes                            ██ (releases semaphore)
                                           │
                                           ▼ ISR exits, scheduler finds high-priority task ready
High-priority task (woken)                 ████████████████████
                                                              │ Enters blocked state
Low-priority task (resumes)                                   ████████

1.4 Quick Start Guide

1.4.1 Typical Development Flow

Create tasks using liot_rtos_task_create().
Create synchronization mechanisms: semaphores, mutexes, or event groups as needed.
Create message queues if you need task-to-task data transfer.
Implement the business loop inside a task, using IPC mechanisms for synchronization and communication.
Clean up RTOS objects before task exit.

1.4.2 Example Usage (Minimal Demo)

#include "liot_os.h"

#define WORK_COUNT 10

// Task handles
static liot_task_t worker_handle = NULL;
static liot_sem_t work_sem = NULL;

// Worker task function (executes a limited number of times then exits)
void liot_worker_task(void *pvParameters)
{
    int count = 0;

    while (count < WORK_COUNT)
    {
        if (liot_rtos_semaphore_wait(work_sem, LIOT_WAIT_FOREVER) == LIOT_OSI_SUCCESS)
        {
            liot_trace("Worker received signal [%d/%d]", count + 1, WORK_COUNT);
            count++;
        }
    }

    // Work complete, clean up resources
    liot_trace("Worker done, cleaning up...");
    liot_rtos_semaphore_delete(work_sem);
    work_sem = NULL;
    worker_handle = NULL;
    liot_rtos_task_delete(NULL);
}

// Main task function
void liot_main_task(void *pvParameters)
{
    // Create semaphore
    LiotOSStatus_t ret = liot_rtos_semaphore_create(&work_sem, 0);
    if (ret != LIOT_OSI_SUCCESS)
    {
        liot_trace("Failed to create semaphore, err=%d", ret);
        return;
    }

    // Create worker task
    ret = liot_rtos_task_create(&worker_handle,
                                2048,                    // Stack size (bytes)
                                LIOT_APP_TASK_PRIORITY,  // Priority
                                "Worker",                // Task name
                                liot_worker_task,        // Task entry function
                                NULL);                   // Parameter
    if (ret != LIOT_OSI_SUCCESS)
    {
        liot_trace("Failed to create worker task, err=%d", ret);
        liot_rtos_semaphore_delete(work_sem);
        work_sem = NULL;
        return;
    }

    // Main loop: release semaphore to wake worker task
    for (int i = 0; i < WORK_COUNT; i++)
    {
        liot_rtos_semaphore_release(work_sem);
        liot_rtos_task_sleep_s(1);
    }

    liot_trace("Main task done");
}

2 API Overview

2.1 Tasks

Function	Description	Context
`liot_rtos_task_create()`	Create a task	Task only
`liot_rtos_task_delete()`	Delete a task	Task only
`liot_rtos_task_yield()`	Yield CPU usage	Task only
`liot_rtos_task_get_current_ref()`	Get current task handle	Task only
`liot_rtos_task_change_priority()`	Change task priority	Task only
`liot_rtos_task_get_status()`	Get task status information	Task only
`liot_rtos_task_sleep_ms()`	Set task sleep time (milliseconds)	Task only (blocking)
`liot_rtos_task_sleep_s()`	Set task sleep time (seconds)	Task only (blocking)
`liot_rtos_task_get_stack_space()`	Get task stack free space	Task only
`liot_rtos_task_suspend()`	Suspend a task	Task only
`liot_rtos_task_resume()`	Resume a suspended task	Task only
`liot_rtos_get_running_time()`	Get RTOS uptime in milliseconds	Task/ISR
`liot_rtos_get_system_tick()`	Get RTOS system tick count	Task/ISR
`liot_rtos_is_alive()`	Determine if a task is alive	Task only
`liot_rtos_task_create_static()`	Create a task statically	Task only

2.2 Memory Management

Function	Description
`liot_rtos_malloc()`	Allocate memory dynamically
`liot_rtos_free()`	Free dynamically allocated memory
`liot_rtos_realloc()`	Reallocate memory block
`liot_rtos_calloc()`	Allocate zero-initialized memory
`liot_xPortGetTotalHeapSize()`	Get total FreeRTOS heap size
`liot_xPortGetFreeHeapSize()`	Get free FreeRTOS heap size
`liot_xPortGetMinimumEverFreeHeapSize()`	Get minimum ever free FreeRTOS heap size
`liot_xPortGetMaximumFreeBlockSize()`	Get maximum free block size in FreeRTOS heap
`liot_psram_xPortGetTotalHeapSize()`	Get PSRAM total size
`liot_psram_xPortGetFreeHeapSize()`	Get PSRAM free size
`liot_psram_xPortGetMinimumEverFreeHeapSize()`	Get minimum ever free PSRAM size
`liot_psram_xPortGetMaximumFreeBlockSize()`	Get maximum free block size in PSRAM

2.3 Critical Sections

Function	Description
`liot_rtos_enter_critical()`	Enter critical section
`liot_rtos_enter_critical_from_isr()`	Enter critical section from ISR
`liot_rtos_exit_critical()`	Exit critical section
`liot_rtos_exit_critical_from_isr()`	Exit critical section from ISR

2.4 Semaphores

Function	Description	Context
`liot_rtos_semaphore_create()`	Create a binary semaphore	Task only
`liot_rtos_semaphore_create_ex()`	Create a counting semaphore	Task only
`liot_rtos_semaphore_wait()`	Wait for semaphore	Task (blocking)/ISR (LIOT_NO_WAIT only)
`liot_rtos_semaphore_release()`	Release semaphore	Task/ISR
`liot_rtos_semaphore_get_cnt()`	Get semaphore count	Task/ISR
`liot_rtos_semaphore_delete()`	Delete semaphore	Task only

2.5 Mutexes

Function	Description	Context
`liot_rtos_mutex_create()`	Create a mutex	Task only
`liot_rtos_mutex_lock()`	Lock a mutex, timeout configurable	Task only (blocking)
`liot_rtos_mutex_try_lock()`	Try to lock a mutex	Task only (non-blocking)
`liot_rtos_mutex_unlock()`	Unlock a mutex	Task only
`liot_rtos_mutex_delete()`	Delete a mutex	Task only

2.6 Message Queues

Function	Description	Context
`liot_rtos_queue_create()`	Create a message queue	Task only
`liot_rtos_queue_wait()`	Wait for messages in queue	Task (blocking)/ISR (LIOT_NO_WAIT only)
`liot_rtos_queue_release()`	Release message to queue	Task/ISR
`liot_rtos_queue_get_cnt()`	Get number of messages in queue	Task/ISR
`liot_rtos_queue_delete()`	Delete a queue	Task only
`liot_rtos_queue_reset()`	Reset queue elements and change queue length	Task only
`liot_rtos_queue_get_space()`	Query available queue space	Task/ISR

2.7 Timers

Function	Description	Context
`liot_rtos_timer_create()`	Create a timer	Task only
`liot_rtos_timer_start()`	Start a timer	Task/ISR
`liot_rtos_timer_is_running()`	Check whether timer is running	Task/ISR
`liot_rtos_timer_stop()`	Stop a timer	Task only
`liot_rtos_timer_delete()`	Delete a timer	Task only
`liot_rtos_timer_stop_isr()`	Stop a timer from ISR	ISR

2.8 Event Groups

Function	Description	Context
`liot_rtos_flag_create()`	Create an event group	Task only
`liot_rtos_flag_get()`	Get current event group bit state	Task/ISR
`liot_rtos_flag_wait()`	Wait for event group bits to meet conditions	Task only (blocking)
`liot_rtos_flag_release()`	Set event bits in an event group	Task/ISR
`liot_rtos_flag_clear()`	Clear event bits in an event group	Task/ISR
`liot_rtos_flag_delete()`	Delete an event group	Task only

2.9 Others

Function	Description
`liot_rtos_rand()`	Software random number
`liot_true_rand()`	Hardware random number

3 Type Definitions

3.1 `LiotOSStatus_t`

Declaration

typedef int LiotOSStatus_t;

Description

RTOS API return value data type.

Return Value	Description
`LIOT_OSI_SUCCESS`	Success
`LIOT_OSI_TASK_PARAM_INVALID`	Invalid task parameter
`LIOT_OSI_TASK_CREATE_FAIL`	Task creation failed
`LIOT_OSI_NO_MEMORY`	Not enough task memory
`LIOT_OSI_TASK_DELETE_FAIL`	Task deletion failed
`LIOT_OSI_TASK_PRIO_INVALID`	Task priority invalid
`LIOT_OSI_TASK_NAME_INVALID`	Task name length invalid
`LIOT_OSI_INVALID_TASK_REF`	Invalid task handle
`LIOT_OSI_SEMA_CREATE_FAILE`	Semaphore creation failed (note: spelling consistent with header file definition)
`LIOT_OSI_SEMA_DELETE_FAIL`	Semaphore deletion failed
`LIOT_OSI_SEMA_IS_FULL`	Semaphore is full
`LIOT_OSI_SEMA_RELEASE_FAIL`	Semaphore release failed
`LIOT_OSI_SEMA_GET_FAIL`	Semaphore get failed
`LIOT_OSI_SEMA_FAIL`	Semaphore failure
`LIOT_OSI_MUTEX_CREATE_FAIL`	Mutex creation failed
`LIOT_OSI_MUTEX_DELETE_FAIL`	Mutex deletion failed
`LIOT_OSI_MUTEX_LOCK_FAIL`	Mutex lock failed
`LIOT_OSI_MUTEX_UNLOCK_FAIL`	Mutex unlock failed
`LIOT_OSI_TIMER_CREATE_FAIL`	Timer creation failed
`LIOT_OSI_TIMER_START_FAIL`	Timer start failed
`LIOT_OSI_TIMER_STOP_FAIL`	Timer stop failed
`LIOT_OSI_TIMER_DELETE_FAIL`	Timer deletion failed
`LIOT_OSI_TIMER_BIND_TASK_FAIL`	Timer bind task failed
`LIOT_OSI_QUEUE_CREATE_FAIL`	Queue creation failed
`LIOT_OSI_QUEUE_DELETE_FAIL`	Queue deletion failed
`LIOT_OSI_QUEUE_IS_FULL`	Queue is full
`LIOT_OSI_QUEUE_RELEASE_FAIL`	Queue release failed
`LIOT_OSI_QUEUE_RECEIVE_FAIL`	Queue receive failed
`LIOT_OSI_QUEUE_GET_CNT_FAIL`	Get queue count failed
`LIOT_OSI_QUEUE_IS_FAIL`	Queue failure
`LIOT_OSI_QUEUE_RESET_FAIL`	Queue reset failed

3.2 `liot_task_t`

Declaration

typedef void *liot_task_t;

Description

Task handle type.

3.3 `liot_sem_t`

Declaration

typedef void *liot_sem_t;

Description

Semaphore handle type.

3.4 `liot_mutex_t`

Declaration

typedef void *liot_mutex_t;

Description

Mutex handle type.

3.5 `liot_queue_t`

Declaration

typedef void *liot_queue_t;

Description

Message queue handle type.

3.6 `liot_timer_t`

Declaration

typedef void *liot_timer_t;

Description

Timer handle type.

3.7 `liot_wait_e`

Declaration

typedef enum
{
    LIOT_WAIT_FOREVER = 0xFFFFFFFFUL,
    LIOT_NO_WAIT      = 0
} liot_wait_e;

Description

LIOT_WAIT_FOREVER: wait forever
LIOT_NO_WAIT: do not wait

3.8 `liot_timertype_e`

Timer mode.

Declaration

typedef enum
{
    LIOT_TimerOnce     = 0, ///< One-shot timer.
    LIOT_TimerPeriodic = 1  ///< Repeating timer.
} liot_timertype_e;

Description

LIOT_TimerOnce: one-shot mode
LIOT_TimerPeriodic: periodic mode

3.9 `liot_task_state_e`

Task states.

Declaration

typedef enum
{
    LIOT_Running = 0,
    LIOT_Ready,
    LIOT_Blocked,
    LIOT_Suspended,
    LIOT_Deleted,
    LIOT_Invalid
} liot_task_state_e;

Description

LIOT_Running: running state
LIOT_Ready: ready state
LIOT_Blocked: blocked state
LIOT_Suspended: suspended state
LIOT_Deleted: deleted state
LIOT_Invalid: invalid state

3.10 `liot_flag_op_e`

Event group flag operations.

Declaration

typedef enum
{
    LIOT_FLAG_AND = 5,
    LIOT_FLAG_AND_CLEAR = 6,
    LIOT_FLAG_OR = 7,
    LIOT_FLAG_OR_CLEAR = 8
} liot_flag_op_e;

Description

LIOT_FLAG_AND: wait for all bits in the input event to be set; do not clear flags after processing.
LIOT_FLAG_AND_CLEAR: wait for all bits and clear after processing.
LIOT_FLAG_OR: wait for any bit to be set; do not clear after processing.
LIOT_FLAG_OR_CLEAR: wait for any bit and clear after processing.

3.11 `liot_StaticTask_t`

Declaration

typedef void *liot_StaticTask_t;

Description

Static task data structure type.

4 API Details

4.1 Task APIs

4.1.1 `liot_rtos_task_create`

Create a task. This function does not support creating events. Task priority should not be set too high: for audio-related tasks it should not exceed 23; for non-audio tasks it should not exceed 25.

Declaration

extern LiotOSStatus_t liot_rtos_task_create(liot_task_t *taskRef,
                                            uint32 stackSize,
                                            uint8 priority,
                                            char *taskName,
                                            void (*taskStart)(void *),
                                            void *argv,
                                            ...);

Parameters

taskRef: [Out] task handle.
stackSize: [In] task stack size in bytes. Maximum: 128 * 1024 bytes.
priority: [In] task priority range 0~30.

Recommended predefined priorities:

Priority name	Value	Description
`APP_PRIORITY_IDLE`	1	Idle task priority (reserved)
`APP_PRIORITY_LOW`	4	Low priority
`APP_PRIORITY_BELOW_NORMAL`	8	Below normal
`APP_PRIORITY_NORMAL`	12	Normal priority (default recommended)
`APP_PRIORITY_ABOVE_NORMAL`	16	Above normal
`APP_PRIORITY_HIGH`	25	High priority
`APP_PRIORITY_REALTIME`	30	Real-time priority (highest)

taskName: [In] task name. Max length 32 bytes.
taskStart: [In] task entry function.
argv: [In] task argument pointer.

Return value

See Section 3.1.

Note: The priority limits 23 / 25 are recommended values. The SDK only checks that priority does not exceed 30 and does not distinguish audio-related tasks. Developers should follow these recommendations to avoid system stability issues.

4.1.2 `liot_rtos_task_delete`

Delete a task.

Declaration

extern LiotOSStatus_t liot_rtos_task_delete(liot_task_t taskRef);

Parameters

taskRef: [In] task handle. If NULL, deletes the current task while other tasks continue running.

Return value

See Section 3.1.

Note:

If taskRef is NULL, the calling task deletes itself. After deletion, the remaining code in that task will not execute and its stack will be reclaimed automatically.
Stack reclamation: for dynamically created tasks (liot_rtos_task_create), the task stack and TCB are automatically freed back to heap memory when deleted.

4.1.3 `liot_rtos_task_yield`

Yield CPU usage.

Declaration

extern void liot_rtos_task_yield(void);

Parameters

None.

Return value

None.

4.1.4 `liot_rtos_task_get_current_ref`

Get the current task handle.

Declaration

extern LiotOSStatus_t liot_rtos_task_get_current_ref(liot_task_t *taskRef);

Parameters

taskRef: [Out] task handle.

Return value

See Section 3.1.

4.1.5 `liot_rtos_task_change_priority`

Change task priority.

Declaration

extern LiotOSStatus_t liot_rtos_task_change_priority(liot_task_t taskRef, uint8 new_priority, uint8 *old_priority);

Parameters

taskRef: [In] task handle.
new_priority: [In] new task priority.
old_priority: [Out] previous task priority.

Return value

See Section 3.1.

4.1.6 `liot_rtos_task_get_status`

Get task status information.

Declaration

extern LiotOSStatus_t liot_rtos_task_get_status(liot_task_t task_ref, liot_task_status_s *status);

Parameters

task_ref: [In] task handle.
status: [Out] task status information. See Section 4.1.6.1.

Return value

See Section 3.1.

4.1.7 `liot_task_status_s`

Structure definition

typedef struct
{
  liot_task_t xHandle;
  const char *pcTaskName;
  liot_task_state_e eCurrentState;
  unsigned long uxCurrentPriority;
  uint16 usStackHighWaterMark;
} liot_task_status_s;

Parameters

Type	Field	Description
`liot_task_t`	`xHandle`	Task handle
`char *`	`pcTaskName`	Task name
`liot_task_state_e`	`eCurrentState`	Task state
`unsigned long`	`uxCurrentPriority`	Task priority
`uint16`	`usStackHighWaterMark`	Minimum remaining stack space for the task, used to assess potential overflow

4.1.8 `liot_rtos_task_sleep_ms`

Sleep for a specified number of milliseconds.

Declaration

extern void liot_rtos_task_sleep_ms(uint32 ms);

Parameters

ms: [In] sleep duration in milliseconds.

Return value

None.

4.1.9 `liot_rtos_task_sleep_s`

Sleep for a specified number of seconds.

Declaration

extern void liot_rtos_task_sleep_s(uint32 s);

Parameters

s: [In] sleep duration in seconds.

Return value

None.

4.1.10 `liot_rtos_task_get_stack_space`

Get current task stack free space.

Declaration

extern uint32_t liot_rtos_task_get_stack_space(liot_task_t task_ref);

Parameters

task_ref: [In] task handle.

Return value

Current task free stack space in bytes. This value represents the historical minimum remaining stack (high watermark) since the task was created. During debugging, monitor this value — if it drops below 128 bytes, there is a stack overflow risk and the task stack should be increased.

4.1.11 `liot_rtos_task_suspend`

Suspend a specified task.

Declaration

extern LiotOSStatus_t liot_rtos_task_suspend(liot_task_t taskRef);

Parameters

taskRef: [In] task handle.

Return value

See Section 3.1.

4.1.12 `liot_rtos_task_resume`

Resume a suspended task.

Declaration

extern LiotOSStatus_t liot_rtos_task_resume(liot_task_t taskRef);

Parameters

taskRef: [In] task handle.

Return value

See Section 3.1.

4.1.13 `liot_rtos_get_running_time`

Get the module uptime in milliseconds.

Declaration

extern uint32_t liot_rtos_get_running_time(void);

Parameters

None.

Return value

Uptime in milliseconds.

4.1.14 `liot_rtos_get_system_tick`

Get the module system tick count since power-on.

Declaration

extern uint32 liot_rtos_get_system_tick(void);

Parameters

None.

Return value

System tick count since power-on.

4.1.15 `liot_rtos_is_alive`

Determine whether a task is running.

Declaration

extern bool liot_rtos_is_alive(liot_task_t taskRef);

Parameters

taskRef: [In] task handle.

Return value

true: task is alive.
false: task is not alive.

4.1.16 `liot_rtos_task_create_static`

Create a task statically. The user provides both the task stack and the Task Control Block (TCB) as pre-allocated memory (e.g., global arrays or static variables). This interface does not allocate any of these resources from the system heap.

Declaration

extern LiotOSStatus_t liot_rtos_task_create_static(liot_task_t *taskRef,
                                                   uint32 stackSize,
                                                   uint8 priority,
                                                   char *taskName,
                                                   void (*taskStart)(void *),
                                                   void *stackMem,
                                                   void *StaticTask,
                                                   void *argv,
                                                   ...);

Parameters

taskRef: [Out] task handle.
stackSize: [In] size of memory pointed to by stackMem, in bytes.
priority: [In] task priority range 0~30.
taskName: [In] task name, max length 32 bytes.
taskStart: [In] task entry function.
stackMem: [In] pointer to an array of at least stackSize bytes used as the task stack. Must have permanent lifetime.
StaticTask: [In] pointer to a liot_StaticTask_t variable to hold task data.
argv: [In] task argument.

Return value

See Section 3.1.

4.2 Memory Management

4.2.1 `liot_rtos_malloc`

Allocate memory dynamically. liot_rtos_malloc is thread-safe, using FreeRTOS memory management internally with critical section protection for concurrent calls.

Declaration

extern void *liot_rtos_malloc(size_t size);

Parameters

size: [In] number of bytes to allocate.

Return value

Address of allocated memory.

4.2.2 `liot_rtos_free`

Free dynamically allocated memory.

Declaration

extern void liot_rtos_free(void *ptr);

Parameters

ptr: [In] pointer to memory to free.

Return value

None.

4.2.3 `liot_rtos_realloc`

Reallocate the size of a previously allocated memory block.

Declaration

extern void *liot_rtos_realloc(void *ptr, size_t size);

Parameters

ptr: [In] pointer to the original block.
size: [In] new size.

Return value

Returns the pointer to the reallocated memory block on success (may differ from the original address), or NULL on failure.

Note:

If realloc returns NULL, the allocation failed but the original pointer ptr remains valid and is not freed. The caller must still free the original memory.
Never assign the return value of realloc directly to the original pointer. Use a temporary variable to check for NULL first, then update the original pointer. Otherwise, a memory leak will occur on failure.

4.2.4 `liot_rtos_calloc`

Allocate zero-initialized memory.

This function initializes allocated memory to 0, unlike malloc. It is suitable for arrays or structures that require zeroed memory.

Declaration

extern void *liot_rtos_calloc(size_t n, size_t Size);

Parameters

n: [In] number of elements.
Size: [In] size of each element.

Return value

Pointer to allocated memory, or NULL on failure.

4.2.5 `liot_xPortGetTotalHeapSize`

Get total FreeRTOS heap size.

Declaration

extern size_t liot_xPortGetTotalHeapSize(void);

Parameters

None.

Return value

Total heap size in bytes.

4.2.6 `liot_xPortGetFreeHeapSize`

Get current free size of the system heap.

Declaration

extern size_t liot_xPortGetFreeHeapSize(void);

Parameters

None.

Return value

Free heap size in bytes.

4.2.7 `liot_xPortGetMinimumEverFreeHeapSize`

Get the minimum ever free heap size during runtime.

Declaration

extern size_t liot_xPortGetMinimumEverFreeHeapSize(void);

Parameters

None.

Return value

Minimum ever free heap size in bytes.

4.2.8 `liot_xPortGetMaximumFreeBlockSize`

Get the maximum allocatable block size in the heap.

Declaration

extern size_t liot_xPortGetMaximumFreeBlockSize(void);

Parameters

None.

Return value

Maximum allocatable block size in bytes.

4.2.9 `liot_psram_xPortGetTotalHeapSize`

Get total PSRAM size.

Declaration

size_t liot_psram_xPortGetTotalHeapSize(void);

Parameters

None.

Return value

PSRAM total size.

4.2.10 `liot_psram_xPortGetFreeHeapSize`

Get available PSRAM size.

Declaration

size_t liot_psram_xPortGetFreeHeapSize(void);

Parameters

None.

Return value

Available PSRAM size.

4.2.11 `liot_psram_xPortGetMinimumEverFreeHeapSize`

Get minimum ever free PSRAM size during runtime.

Declaration

size_t liot_psram_xPortGetMinimumEverFreeHeapSize(void);

Parameters

None.

Return value

Minimum ever free PSRAM size.

4.2.12 `liot_psram_xPortGetMaximumFreeBlockSize`

Get maximum allocatable PSRAM block size.

Declaration

size_t liot_psram_xPortGetMaximumFreeBlockSize(void);

Parameters

None.

Return value

Maximum allocatable PSRAM block size.

4.3 Critical Sections

4.3.1 `liot_rtos_enter_critical`

Enter critical section protection.

Declaration

extern void liot_rtos_enter_critical(void);

Parameters

None.

Return value

None.

4.3.2 `liot_rtos_enter_critical_from_isr`

Enter critical section from ISR.

Declaration

extern uint32_t liot_rtos_enter_critical_from_isr(void);

Parameters

None.

Return value

Interrupt return value.

4.3.3 `liot_rtos_exit_critical`

Exit critical section protection.

Declaration

extern void liot_rtos_exit_critical(void);

Parameters

None.

Return value

None.

4.3.4 `liot_rtos_exit_critical_from_isr`

Exit critical section from ISR.

Declaration

extern void liot_rtos_exit_critical_from_isr(uint32_t isrm);

Parameters

isrm: [In] return value from liot_rtos_enter_critical_from_isr().

Return value

None.

4.4 Semaphores

4.4.1 `liot_rtos_semaphore_create`

Create a semaphore.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_create(liot_sem_t *semaRef, uint32 initialCount);

Parameters

semaRef: [Out] semaphore handle.
initialCount: [In] initial count value.

Return value

See Section 3.1.

Note: Creating semaphores in ISRs is prohibited.

4.4.2 `liot_rtos_semaphore_create_ex`

Create a semaphore with extra parameters. Semaphore creation involves memory allocation and is unsafe in interrupt context. Create semaphores during task initialization and only release them in interrupts.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_create_ex(liot_sem_t *semaRef, uint32 initialCount, uint32 max_cnt);

Parameters

semaRef: [Out] semaphore handle.
initialCount: [In] initial count value.
max_cnt: [In] maximum count value.

Return value

See Section 3.1.

4.4.3 `liot_rtos_semaphore_wait`

Wait for a semaphore.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_wait(liot_sem_t semaRef, uint32 timeout);

Parameters

semaRef: [In] semaphore handle.
timeout: [In] wait time in milliseconds. 0xFFFFFFFF means wait forever.

Return value

See Section 3.1.

Usage examples:

Scenario	Timeout choice	Description
Task synchronization	`LIOT_WAIT_FOREVER`	Wait for another task notification, such as data processing completion
Post-interrupt handling	`LIOT_WAIT_FOREVER`	Wait for ISR to release semaphore, trigger data processing
Timeout protection	Custom timeout (ms)	Need response within a time window to avoid indefinite task blocking
Non-blocking check	`LIOT_NO_WAIT`	Check semaphore immediately without blocking

Timeout selection advice:

Critical synchronization: use LIOT_WAIT_FOREVER to ensure completion before proceeding.
Time-sensitive scenarios: set a reasonable timeout and handle retries or errors on timeout.
Polling checks: use LIOT_NO_WAIT with task sleep for periodic checks.

4.4.4 `liot_rtos_semaphore_release`

Release a semaphore.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_release(liot_sem_t semaRef);

Parameters

semaRef: [In] semaphore handle.

Return value

See Section 3.1.

4.4.5 `liot_rtos_semaphore_get_cnt`

Get semaphore count.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_get_cnt(liot_sem_t semaRef, uint32 *cntPtr);

Parameters

semaRef: [In] semaphore handle.
cntPtr: [Out] semaphore count value.

Return value

See Section 3.1.

4.4.6 `liot_rtos_semaphore_delete`

Delete a semaphore.

Declaration

extern LiotOSStatus_t liot_rtos_semaphore_delete(liot_sem_t semaRef);

Parameters

semaRef: [In] semaphore handle.

Return value

See Section 3.1.

4.5 Mutexes

4.5.1 `liot_rtos_mutex_create`

Create a mutex.

Declaration

extern LiotOSStatus_t liot_rtos_mutex_create(liot_mutex_t *mutexRef);

Parameters

mutexRef: [Out] mutex handle.

Return value

See Section 3.1.

4.5.2 `liot_rtos_mutex_lock`

Lock a mutex. The timeout can be customized.

Declaration

extern LiotOSStatus_t liot_rtos_mutex_lock(liot_mutex_t mutexRef, uint32 timeout);

Parameters

mutexRef: [In] mutex handle.
timeout: [In] wait time in milliseconds. 0xFFFFFFFF means wait forever.

Return value

See Section 3.1.

4.5.3 `liot_rtos_mutex_try_lock`

Attempt to acquire a mutex in a non-blocking manner. Returns immediately: succeeds if the mutex is available, or fails if the mutex is already held by another task without blocking.

Declaration

extern LiotOSStatus_t liot_rtos_mutex_try_lock(liot_mutex_t mutexRef);

Parameters

mutexRef: [In] mutex handle.

Return value

See Section 3.1.

4.5.4 `liot_rtos_mutex_unlock`

Unlock a mutex.

Declaration

extern LiotOSStatus_t liot_rtos_mutex_unlock(liot_mutex_t mutexRef);

Parameters

mutexRef: [In] mutex handle.

Return value

See Section 3.1.

4.5.5 `liot_rtos_mutex_delete`

Delete a mutex.

Declaration

extern LiotOSStatus_t liot_rtos_mutex_delete(liot_mutex_t mutexRef);

Parameters

mutexRef: [In] mutex handle.

Return value

See Section 3.1.

4.6 Message Queues

4.6.1 `liot_rtos_queue_create`

Create a message queue.

Declaration

extern LiotOSStatus_t liot_rtos_queue_create(liot_queue_t *msgQRef, uint32 maxSize, uint32 maxNumber);

Parameters

msgQRef: [Out] queue handle.
maxSize: [In] element size in bytes.
maxNumber: [In] queue length, maximum number of elements.

Return value

See Section 3.1.

4.6.2 `liot_rtos_queue_wait`

Wait for a message in the queue.

Declaration

extern LiotOSStatus_t liot_rtos_queue_wait(liot_queue_t msgQRef,
                                           uint8 *recvMsg,
                                           uint32 size,
                                           uint32 timeout);

Parameters

msgQRef: [In] queue handle.
recvMsg: [Out] buffer to receive the message.
size: [In] this parameter is ignored and fixed to the queue’s maxSize for compatibility.
timeout: [In] wait time in milliseconds. 0xFFFFFFFF means wait forever.

Return value

See Section 3.1.

4.6.3 `liot_rtos_queue_release`

Release a message into the queue. Supports releasing from ISR.

Declaration

extern LiotOSStatus_t liot_rtos_queue_release(liot_queue_t msgQRef,
                                              uint32 size,
                                              uint8 *msgPtr,
                                              uint32 timeout);

Parameters

msgQRef: [In] queue handle.
size: [In] ignored for compatibility; fixed to queue maxSize.
msgPtr: [In] pointer to the data to send.
timeout: [In] wait time in milliseconds. 0xFFFFFFFF means wait forever.

Return value

See Section 3.1.

Note: when timeout is 0 and the queue is not full, the message is enqueued immediately. If the queue is full, the function returns an error without blocking.

4.6.4 `liot_rtos_queue_get_cnt`

Get the number of messages in the queue.

Declaration

extern LiotOSStatus_t liot_rtos_queue_get_cnt(liot_queue_t msgQRef, uint32 *cntPtr);

Parameters

msgQRef: [In] queue handle.
cntPtr: [Out] number of messages in the queue.

Return value

See Section 3.1.

4.6.5 `liot_rtos_queue_delete`

Delete a message queue.

Declaration

extern LiotOSStatus_t liot_rtos_queue_delete(liot_queue_t msgQRef);

Parameters

msgQRef: [In] queue handle.

Return value

See Section 3.1.

4.6.6 `liot_rtos_queue_reset`

Reset a queue.

Declaration

extern LiotOSStatus_t liot_rtos_queue_reset(liot_queue_t msgQRef);

Parameters

msgQRef: [In] queue handle.

Return value

See Section 3.1.

4.6.7 `liot_rtos_queue_get_space`

Query available queue space.

Declaration

extern uint32_t liot_rtos_queue_get_space(liot_queue_t msgQRef);

Parameters

msgQRef: [In] queue handle.

Return value

See Section 3.1.

4.7 Timers

4.7.1 `liot_rtos_timer_create`

Create an RTOS software timer.

Declaration

extern LiotOSStatus_t liot_rtos_timer_create(liot_timer_t *timerRef,
                                             liot_timertype_e cyclicalEn,
                                             void (*callBackRoutine)(void*),
                                             void *timerArgc);

Parameters

timerRef: [Out] timer handle.
cyclicalEn: [In] whether periodic mode is enabled.
callBackRoutine: [In] timer callback function.
timerArgc: [In] timer callback argument.

Return value

See Section 3.1.

4.7.2 `liot_rtos_timer_start`

Start a timer with millisecond precision. Supports starting from ISR.

Declaration

extern LiotOSStatus_t liot_rtos_timer_start(liot_timer_t timerRef, uint32 setTime);

Parameters

timerRef: [In] timer handle.
setTime: [In] timeout in milliseconds.

Return value

See Section 3.1.

4.7.3 `liot_rtos_timer_is_running`

Check whether a timer is running.

Declaration

extern LiotOSStatus_t liot_rtos_timer_is_running(liot_timer_t timerRef);

Parameters

timerRef: [In] timer handle.

Return value

0: timer is not running.
1: timer is running.

4.7.4 `liot_rtos_timer_stop`

Stop a timer.

Declaration

extern LiotOSStatus_t liot_rtos_timer_stop(liot_timer_t timerRef);

Parameters

timerRef: [In] timer handle.

Return value

See Section 3.1.

4.7.5 `liot_rtos_timer_delete`

Delete a timer.

Declaration

extern LiotOSStatus_t liot_rtos_timer_delete(liot_timer_t timerRef);

Parameters

timerRef: [In] timer handle.

Return value

See Section 3.1.

4.7.6 `liot_rtos_timer_stop_isr`

Stop a timer from ISR.

Declaration

extern LiotOSStatus_t liot_rtos_timer_stop_isr(liot_timer_t timerRef);

Parameters

timerRef: [In] timer handle.

Return value

See Section 3.1.

4.8 Event Groups

4.8.1 `liot_rtos_flag_create`

Create an event group.

Declaration

extern LiotOSStatus_t liot_rtos_flag_create(liot_flag_t *flagRef);

Parameters

flagRef: [Out] event group handle.

Return value

See Section 3.1.

4.8.2 `liot_rtos_flag_get`

Get the current state of an event group.

Declaration

extern uint32 liot_rtos_flag_get(liot_flag_t flagRef);

Parameters

flagRef: [In] event group handle.

Return value

Event group flags.

4.8.3 `liot_rtos_flag_wait`

Wait for specific bits in an event group. This allows a task to block until the specified condition is met.

Declaration

extern LiotOSStatus_t liot_rtos_flag_wait(liot_flag_t flagRef, UINT32 mask, liot_flag_op_e operation, UINT32 *flag, UINT32 timeout);

Parameters

flagRef: [In] event group handle.
mask: [In] bit mask specifying which bits to wait for.
operation: [In] event flag operation. See Section 4.10.
flag: [Out] indicates the bits that met the wait condition.
timeout: [In] wait timeout.

Return value

See Section 3.1.

4.8.4 `liot_rtos_flag_release`

Set specific bits in an event group.

Declaration

extern LiotOSStatus_t liot_rtos_flag_release(liot_flag_t flagRef, UINT32 mask, liot_flag_op_e operation);

Parameters

flagRef: [In] event group handle.
mask: [In] bit mask specifying which bits to set.
operation: [In] event flag operation. See Section 4.10.

Return value

See Section 3.1.

4.8.5 `liot_rtos_flag_clear`

Clear specific bits in an event group.

Declaration

extern LiotOSStatus_t liot_rtos_flag_clear(liot_flag_t flagRef, UINT32 mask);

Parameters

flagRef: [In] event group handle.
mask: [In] bit mask specifying which bits to clear.

Return value

See Section 3.1.

4.8.6 `liot_rtos_flag_delete`

Delete an event group.

Declaration

extern LiotOSStatus_t liot_rtos_flag_delete(liot_flag_t flagRef);

Parameters

flagRef: [In] event group handle.

Return value

See Section 3.1.

4.9 Others

4.9.1 `liot_rtos_rand`

Generate a software random number.

Declaration

extern uint32 liot_rtos_rand(void);

Parameters

None.

Return value

Generated random number.

4.9.2 `liot_true_rand`

Generate a hardware random number, a true random number with higher security.

Declaration

uint32 liot_true_rand(void);

Parameters

None.

Return value

Generated random number.

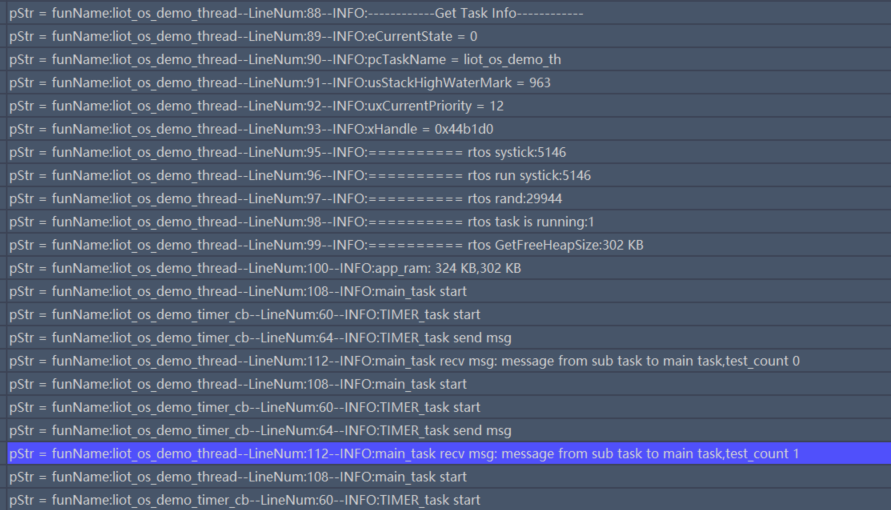

5 Code Examples

5.1 Full Example Code

This example demonstrates comprehensive RTOS API usage, including tasks, semaphores, message queues, timers, and event groups.

Example source location: examples/demo/src/demo_os.c

5.1.1 Example Description

This example demonstrates the following:

Creating a main task and child tasks
Using semaphores for task synchronization
Using message queues for task communication
Using timers for periodic operations
Using event groups for multi-task synchronization
Getting system uptime and memory usage information

5.1.2 Full Code

/**
 * @File Name: liot_os_demo.c
 * @brief RTOS API comprehensive usage example
 */

#include <stdio.h>
#include <string.h>

#include "lierda_app_main.h"
#include "liot_os.h"
#include "liot_type.h"

/*
   This example demonstrates OS usage. It creates two tasks, one semaphore, and one message queue.
   The main task is created first, and the subtask sends messages to the main task.
   The main task prints received messages.
   The test runs for 10 cycles and then ends.
 */

#define MSG_MAX_SIZE 64
#define MSG_MAX_NUM  10
#define MSG_TO_QUEUE "message from sub task to main task"

static liot_sem_t rtos_test_sem      = NULL;
static liot_queue_t rtos_test_queue  = NULL;
static liot_timer_t rtos_timer_queue = NULL;
static int test_count                = 0;

// Timer callback function
void liot_os_demo_timer_cb(void *argv)
{
    liot_rtos_semaphore_release(rtos_test_sem); // Notify subtask that main task has started
    liot_trace("TIMER_task start");

    liot_rtos_queue_release(rtos_test_queue, strlen(MSG_TO_QUEUE), (u8 *)MSG_TO_QUEUE, 0);

    liot_trace("TIMER_task send msg");
}

// Event group handle
liot_flag_t xEventGroupHandle;

// Event bits
#define TASK_1_EVENT (1 << 0) // 0x01
#define TASK_2_EVENT (1 << 1) // 0x02
#define TASK_3_EVENT (1 << 2) // 0x04
#define ALL_TASKS_EVENT (TASK_1_EVENT | TASK_2_EVENT | TASK_3_EVENT) // 0x07

// Task 1 function
void vTask1(void *pvParameters) {

    liot_trace("Task1 in");
    UINT32 uxBits;
    for (;;) {
        liot_trace("Task1 1111Received event, starting task...");
        // Wait for event
        LiotOSStatus_t result = liot_rtos_flag_wait(xEventGroupHandle, TASK_1_EVENT, LIOT_FLAG_AND_CLEAR, &uxBits, LIOT_WAIT_FOREVER);
        if (0 == result)
        {
            if (uxBits & TASK_1_EVENT) {
                liot_trace("Task1 Received event, starting task...");
                // Execute task
                // ...
            }
        }
    }
}

// Task 2 function
void vTask2(void *pvParameters) {

    liot_trace("Task2 in");
    UINT32 uxBits;

    for (;;) {
        liot_trace("Task2 22222Received event, starting task...");
        // Wait for event
        LiotOSStatus_t result = liot_rtos_flag_wait(xEventGroupHandle, TASK_2_EVENT, LIOT_FLAG_AND_CLEAR, &uxBits, LIOT_WAIT_FOREVER);
        if (0 == result)
        {
            if (uxBits & TASK_2_EVENT) {
                liot_trace("Task2 Received event, starting task...");
                // Execute task
                // ...
            }
        }
    }
}

// Task 3 function
void vTask3(void *pvParameters) {

    liot_trace("Task3 in");
    UINT32 uxBits;

    for (;;) {
        liot_trace("Task3 333 Received event, starting task...");

        LiotOSStatus_t result = liot_rtos_flag_wait(xEventGroupHandle, TASK_3_EVENT, LIOT_FLAG_AND_CLEAR, &uxBits, LIOT_WAIT_FOREVER);
        if (0 == result)
        {
            if (uxBits & TASK_3_EVENT) {
                liot_trace("Task3 Received event, starting task...");
                // Execute task
                // ...
            }
        }
    }
}

// Timer callback function
void vTimerCallback(void *ctx) {
    // Release event
    liot_rtos_flag_release(xEventGroupHandle, ALL_TASKS_EVENT, LIOT_FLAG_OR);
    liot_trace("Released event, notifying all tasks...");
}

/*!
 * @brief Test event group synchronization for tasks.
 *
 * @details This function demonstrates how to use an event group to synchronize multiple tasks with flags.
 *          Steps:
 *          1. Create an event group with liot_rtos_flag_create.
 *          2. Create three tasks (vTask1, vTask2, vTask3), each waiting for a specific event flag.
 *          3. Create a periodic timer that releases all event flags every 10 seconds.
 *          Each task waits for its flag, executes when received, and clears the flag.
 *          The timer callback releases all flags using LIOT_FLAG_OR.
 *
 * @note This function is for demonstration and testing only.
 *       Assume the event group and tasks are not reused during execution.
 *
 * @return None
 */
void liot_group_event_test()
{
    // Create event group
    LiotOSStatus_t result = liot_rtos_flag_create(&xEventGroupHandle);
    if (0 != result) {
        liot_trace("main Failed to create event group");
        return;
    }

    liot_trace("main create flag event group");

    // Create task 1
    liot_task_t task1_handle = NULL;
    result = liot_rtos_task_create(&task1_handle, 1024, LIOT_APP_TASK_PRIORITY, "Task1", &vTask1, NULL);
    if (result == 0)
    {
        liot_trace("Task1 task create success %d", result);
    }
    else
    {
        liot_trace("Task1 task create fail %d", result);
    }
    // Create task 2
    liot_task_t task2_handle = NULL;
    result = liot_rtos_task_create(&task2_handle, 1024, LIOT_APP_TASK_PRIORITY, "Task2", &vTask2, NULL);
    if (result == 0)
    {
        liot_trace("Task2 task create success %d", result);
    }
    else
    {
        liot_trace("Task2 task create fail %d", result);
    }
    // Create task 3
    liot_task_t task3_handle = NULL;
    result = liot_rtos_task_create(&task3_handle, 1024, LIOT_APP_TASK_PRIORITY, "Task3", &vTask3, NULL);
    if (result == 0)
    {
        liot_trace("Task3 task create success %d", result);
    }
    else
    {
        liot_trace("Task3 task create fail %d", result);
    }

    liot_trace("main create task success");

    // Create timer
    liot_timer_t timer_handle;
    liot_rtos_timer_create(&timer_handle, LIOT_TimerPeriodic, vTimerCallback, NULL);
    liot_rtos_timer_start(timer_handle, 10000); // 10 seconds
}

// Main test task
void liot_os_demo_thread(void *argv)
{
    test_count = 0;
    liot_rtos_task_sleep_ms(5000);
    char *msg = liot_rtos_malloc(MSG_MAX_SIZE);
    if (msg == NULL)
    {
        return;
    }
    memset(msg, 0, MSG_MAX_SIZE);

    liot_task_status_s xTaskStatus;

    liot_rtos_task_get_status(NULL, &xTaskStatus);

    // Get current task information
    liot_trace("------------Get Task Info------------ ");
    liot_trace("eCurrentState = %d ", xTaskStatus.eCurrentState);
    liot_trace("pcTaskName = %s ", xTaskStatus.pcTaskName);
    liot_trace("usStackHighWaterMark = %d ", xTaskStatus.usStackHighWaterMark);
    liot_trace("uxCurrentPriority = %ld ", xTaskStatus.uxCurrentPriority);
    liot_trace("xHandle = %x ", (void *)xTaskStatus.xHandle);

    liot_trace("========== rtos systick:%ld", liot_rtos_get_system_tick());
    liot_trace("========== rtos run systick:%ld", liot_rtos_get_running_time());
    liot_trace("========== rtos rand:%ld", liot_rtos_rand());
    liot_trace("========== rtos task is running:%d", liot_rtos_is_alive(NULL));

    // Print SRAM information
    liot_trace("========== rtos Get TotalHeapSize:%dKB,FreeHeapSize:%dKB,MinFreeHeapSize:%dKB,MaxFreeBlockSize:%dKB",
        (liot_xPortGetTotalHeapSize()) >> 10, (liot_xPortGetFreeHeapSize()) >> 10,
        (liot_xPortGetMinimumEverFreeHeapSize()) >> 10, (liot_xPortGetMaximumFreeBlockSize()) >> 10);
    #if defined (PSRAM_FEATURE_ENABLE) && (PSRAM_EXIST==1)
    // Print PSRAM information
    liot_trace("========== rtos GetPsram TotalHeapSize:%dKB,FreeHeapSize:%dKB,MinFreeHeapSize:%dKB,MaxFreeBlockSize:%dKB",
        (liot_psram_xPortGetTotalHeapSize()) >> 10, (liot_psram_xPortGetFreeHeapSize()) >> 10,
        (liot_psram_xPortGetMinimumEverFreeHeapSize()) >> 10, (liot_psram_xPortGetMaximumFreeBlockSize()) >> 10);
    #endif

    // Create semaphore
    liot_rtos_semaphore_create(&rtos_test_sem, 0);
    // Create message queue
    liot_rtos_queue_create(&rtos_test_queue, MSG_MAX_SIZE, MSG_MAX_NUM);
    // Create timer
    liot_rtos_timer_create(&rtos_timer_queue, 1, liot_os_demo_timer_cb, NULL);
    liot_rtos_timer_start(rtos_timer_queue, 5000);

    // Main loop
    while (test_count <= 10)
    {
        liot_trace("main_task start");
        liot_rtos_semaphore_wait(rtos_test_sem, 0xFFFFFFFF); // Wait for main task startup

        liot_rtos_queue_wait(rtos_test_queue, (u8 *)msg, MSG_MAX_SIZE, 0xFFFFFFFF); // Wait for message from subtask
        liot_trace("main_task recv msg: %s,test_count %d", msg, test_count);
        test_count += 1;
        memset(msg, 0, MSG_MAX_SIZE);
        liot_rtos_task_sleep_ms(1000);
    }

    // Get task status
    liot_rtos_task_get_status(NULL, &xTaskStatus);

    liot_trace("------------Get Task Info------------ ");
    liot_trace("eCurrentState = %d ", xTaskStatus.eCurrentState);
    liot_trace("pcTaskName = %s ", xTaskStatus.pcTaskName);
    liot_trace("usStackHighWaterMark = %d ", xTaskStatus.usStackHighWaterMark);
    liot_trace("uxCurrentPriority = %ld ", xTaskStatus.uxCurrentPriority);
    liot_trace("xHandle = %x ", (void *)xTaskStatus.xHandle);
    liot_trace("------------Get Task Info------------ ");

    // Release resources
    liot_rtos_free(msg);
    liot_trace("delete main task");
    liot_rtos_semaphore_delete(rtos_test_sem);
    rtos_test_sem = NULL;
    liot_rtos_queue_delete(rtos_test_queue);
    rtos_test_queue = NULL;
    liot_rtos_timer_delete(rtos_timer_queue);
    rtos_timer_queue = NULL;

    // Event group test
    liot_group_event_test();

    // Keep running
    while (1)
    {
        liot_rtos_task_sleep_ms(1000);
    }
}

RTOS Development Guide_Rev1.0

Document Revision History

1 Introduction

1.1 RTOS Core Architecture

1.1.1 Overall Architecture Overview

1.1.2 Two-Layer Architecture Details

1.1.2.1 Platform Adaptation Layer: Customized FreeRTOS Kernel

1.1.2.2 Application Abstraction Layer: Lierda Wrapper Interface

1.1.2.3 Two-Layer Architecture vs. Native FreeRTOS

1.2 RTOS Core Concepts

1.2.1 Task Scheduling Mechanism

Task State Transition Diagram

1.2.2 Blocking APIs vs Non-blocking APIs

1.2.3 Inter-task Communication Mechanisms and Selection Principles

1.2.3.1 Semaphore

1.2.3.2 Mutex

1.2.3.3 Message Queue

1.2.3.4 Event Group (Flag)

1.2.4 Synchronization Mechanism Selection Guidelines

1.2.5 Heap Memory

Memory Allocation Architecture

1.3 Interrupt Context Development Constraints

1.3.1 APIs Allowed in ISR

1.3.2 APIs Forbidden in ISR

1.3.3 Typical ISR-to-Task Interaction Patterns

ISR-to-Task Minimal Example

Preemption Scheduling Timing

1.4 Quick Start Guide

1.4.1 Typical Development Flow

1.4.2 Example Usage (Minimal Demo)

2 API Overview

2.1 Tasks

2.2 Memory Management

2.3 Critical Sections

2.4 Semaphores

2.5 Mutexes

2.6 Message Queues

2.7 Timers

2.8 Event Groups

2.9 Others

3 Type Definitions

3.1 LiotOSStatus_t

3.2 liot_task_t

3.3 liot_sem_t

3.4 liot_mutex_t

3.5 liot_queue_t

3.6 liot_timer_t

3.7 liot_wait_e

3.8 liot_timertype_e

3.9 liot_task_state_e

3.10 liot_flag_op_e

3.11 liot_StaticTask_t

4 API Details

4.1 Task APIs

4.1.1 liot_rtos_task_create

4.1.2 liot_rtos_task_delete

4.1.3 liot_rtos_task_yield

4.1.4 liot_rtos_task_get_current_ref

4.1.5 liot_rtos_task_change_priority

4.1.6 liot_rtos_task_get_status

4.1.7 liot_task_status_s

4.1.8 liot_rtos_task_sleep_ms

4.1.9 liot_rtos_task_sleep_s

4.1.10 liot_rtos_task_get_stack_space

4.1.11 liot_rtos_task_suspend

4.1.12 liot_rtos_task_resume

4.1.13 liot_rtos_get_running_time

4.1.14 liot_rtos_get_system_tick

4.1.15 liot_rtos_is_alive

4.1.16 liot_rtos_task_create_static

4.2 Memory Management

4.2.1 liot_rtos_malloc

4.2.2 liot_rtos_free

4.2.3 liot_rtos_realloc

4.2.4 liot_rtos_calloc

4.2.5 liot_xPortGetTotalHeapSize

4.2.6 liot_xPortGetFreeHeapSize

4.2.7 liot_xPortGetMinimumEverFreeHeapSize

4.2.8 liot_xPortGetMaximumFreeBlockSize

4.2.9 liot_psram_xPortGetTotalHeapSize

3.1 `LiotOSStatus_t`

3.2 `liot_task_t`

3.3 `liot_sem_t`

3.4 `liot_mutex_t`

3.5 `liot_queue_t`

3.6 `liot_timer_t`

3.7 `liot_wait_e`

3.8 `liot_timertype_e`

3.9 `liot_task_state_e`

3.10 `liot_flag_op_e`

3.11 `liot_StaticTask_t`

4.1.1 `liot_rtos_task_create`

4.1.2 `liot_rtos_task_delete`

4.1.3 `liot_rtos_task_yield`

4.1.4 `liot_rtos_task_get_current_ref`

4.1.5 `liot_rtos_task_change_priority`

4.1.6 `liot_rtos_task_get_status`

4.1.7 `liot_task_status_s`

4.1.8 `liot_rtos_task_sleep_ms`

4.1.9 `liot_rtos_task_sleep_s`

4.1.10 `liot_rtos_task_get_stack_space`

4.1.11 `liot_rtos_task_suspend`

4.1.12 `liot_rtos_task_resume`

4.1.13 `liot_rtos_get_running_time`

4.1.14 `liot_rtos_get_system_tick`

4.1.15 `liot_rtos_is_alive`

4.1.16 `liot_rtos_task_create_static`

4.2.1 `liot_rtos_malloc`

4.2.2 `liot_rtos_free`

4.2.3 `liot_rtos_realloc`

4.2.4 `liot_rtos_calloc`

4.2.5 `liot_xPortGetTotalHeapSize`

4.2.6 `liot_xPortGetFreeHeapSize`

4.2.7 `liot_xPortGetMinimumEverFreeHeapSize`

4.2.8 `liot_xPortGetMaximumFreeBlockSize`

4.2.9 `liot_psram_xPortGetTotalHeapSize`

4.2.10 `liot_psram_xPortGetFreeHeapSize`

4.2.11 `liot_psram_xPortGetMinimumEverFreeHeapSize`

4.2.12 `liot_psram_xPortGetMaximumFreeBlockSize`

4.3.1 `liot_rtos_enter_critical`

4.3.2 `liot_rtos_enter_critical_from_isr`

4.3.3 `liot_rtos_exit_critical`

4.3.4 `liot_rtos_exit_critical_from_isr`

4.4.1 `liot_rtos_semaphore_create`

4.4.2 `liot_rtos_semaphore_create_ex`

4.4.3 `liot_rtos_semaphore_wait`

4.4.4 `liot_rtos_semaphore_release`

4.4.5 `liot_rtos_semaphore_get_cnt`

4.4.6 `liot_rtos_semaphore_delete`

4.5.1 `liot_rtos_mutex_create`

4.5.2 `liot_rtos_mutex_lock`

4.5.3 `liot_rtos_mutex_try_lock`

4.5.4 `liot_rtos_mutex_unlock`

4.5.5 `liot_rtos_mutex_delete`

4.6.1 `liot_rtos_queue_create`

4.6.2 `liot_rtos_queue_wait`

4.6.3 `liot_rtos_queue_release`

4.6.4 `liot_rtos_queue_get_cnt`

4.6.5 `liot_rtos_queue_delete`

4.6.6 `liot_rtos_queue_reset`

4.6.7 `liot_rtos_queue_get_space`

4.7.1 `liot_rtos_timer_create`

4.7.2 `liot_rtos_timer_start`

4.7.3 `liot_rtos_timer_is_running`

4.7.4 `liot_rtos_timer_stop`

4.7.5 `liot_rtos_timer_delete`

4.7.6 `liot_rtos_timer_stop_isr`

4.8.1 `liot_rtos_flag_create`

4.8.2 `liot_rtos_flag_get`

4.8.3 `liot_rtos_flag_wait`

4.8.4 `liot_rtos_flag_release`

4.8.5 `liot_rtos_flag_clear`

4.8.6 `liot_rtos_flag_delete`

4.9.1 `liot_rtos_rand`

4.9.2 `liot_true_rand`
