Low Power Mode Usage Guide_Rev1.0

中文

Document Revision History

Document Version	Revision Date	Revised By	Reviewed By	Changes
Rev1.0	26-01-21	zlc		Initial release

1 Introduction

This chapter mainly introduces the newly added low power API interfaces and related usage instructions, providing reference for customers when implementing low power functionality using OPENSDK.

Peripheral power-down status in sleep mode

Power Mode		LIOT_SLEEP_MODE_NORMAL	LIOT_SLEEP_MODE_LOW	LIOT_SLEEP_MODE_DEEP_LOW
Description		Normal working mode, milliampere-level power consumption, suitable for scenarios without strict power requirements	Microampere-level power consumption, fast wake-up, suitable for frequent sleep/wake scenarios	Lower power consumption mode, suitable for long-term sleep, while maintaining necessary network connections
CPU Frequency		Normal	Reduced	Sleep
RAM Status		Retained	Retained	Power-off
Peripherals	General GPIO	Available	Not available	Not available
	AON GPIO	Available	Available	Available
	APWM	Available	Available	Available
	Peripheral Status (I2C/SPI/I2S/PWM/ADC/UART/CAN)	Available	Not available	Not available
	VDD_EXT	Output maintained	Output supported on some models	Output supported on some models
Wake-up Methods	wakeup/pwrkey	Available	Available	Available
	Software Timer	Supported	Supported	Not supported
	Low Power Timer	Supported	Supported	Supported
	Low Power UART	Supported	Supported	Supported
	Data, SMS	Supported	Supported	Supported
Data Communication	Application Protocol	FTP(S)/MQTT(S) HTTP(S)/WebSocket LWM2M/COAP TCP/TCP(S)/UDP(S)	FTP(S)/MQTT(S) HTTP(S)/WebSocket LWM2M/COAP TCP/TCP(S)/UDP(S)	LWM2M/COAP TCP/UDP
	Downlink Paging	Supported	Supported	Supported

The approximate current ranges for different power modes are:

Power Mode	Non-paging Current
LIOT_SLEEP_MODE_NORMAL	~4mA
LIOT_SLEEP_MODE_LOW	~60uA
LIOT_SLEEP_MODE_DEEP_LOW	~9.5uA

2 API Function Overview

Function	Description
Liot_SleepSetMode()	Set power mode
Liot_SleepTimerStart()	Start low power timer
Liot_SleepTimerStop()	Stop low power timer
Liot_SleepTimerCheck()	Check if low power timer is running
Liot_SleepTimerGetID()	Get low power timer ID that woke up the system

3 Type Definitions

3.1 liot_sleep_mode_type_e

Power mode type enumeration.

1. Declaration

typedef enum {
    LIOT_SLEEP_MODE_NORMAL,      // normal mode
    LIOT_SLEEP_MODE_LOW,         // sleep mode
    LIOT_SLEEP_MODE_DEEP_LOW,    // deep sleep mode
}liot_sleep_mode_type_e;

2. Parameters

• LIOT_SLEEP_MODE_NORMAL: Normal working mode

• LIOT_SLEEP_MODE_LOW: Low power mode

• LIOT_SLEEP_MODE_DEEP_LOW: Ultra-low power mode

Note:

In LIOT_SLEEP_MODE_LOW and LIOT_SLEEP_MODE_DEEP_LOW modes, peripherals will be powered off. To enter these modes, you need to: 1. Disable software timers, 2. Suspend all non-blocking tasks, 3. Disable peripheral drivers.

In LIOT_SLEEP_MODE_LOW mode, RAM is not powered off. Applications need to suspend all tasks. If timers are created, they will wake up the system after timeout. If tasks are in non-blocking state, they will also wake up the system when timeout occurs. It is recommended to change the wait time to forever.

In LIOT_SLEEP_MODE_DEEP_LOW mode, RAM is powered off. After the system wakes up, the code runs as if restarting. You need to check the wake-up reason at the beginning of the application. If low power timers are used, you can query the specific hardware timer ID that woke up the system using the Liot_SleepTimerGetID() interface. In this mode, 1 TCP and 1 UDP connection can be maintained. The TCP link state will be backed up and restored by the system, so no additional processing is required at the application layer. The heartbeat interval with the server should not be too short, otherwise it will cause frequent system wake-ups. It should also not exceed the IP aging time, generally within 10 minutes. If the aging time expires, the module needs to re-attach to the network, which will cause a power surge.

3.2 LiotSleepModeCfg_t

Power mode configuration structure.

1. Declaration

typedef struct {
    liot_sleep_mode_type_e mode;    //sleep mode
} LiotSleepModeCfg_t;

2. Parameters

Type	Parameter	Description
liot_sleep_mode_type_e	mode	Power mode

3.3 Liot_SleepTimerID_e

Low power timer enumeration options.

1. Declaration

typedef enum {
    LIOT_DEEPSLP_TIMER_ID0 = 0,		// num 0/1: 2 AONTimer, without flash storage, 2.5 hour in 100Hz
	LIOT_DEEPSLP_TIMER_ID1,
	LIOT_DEEPSLP_TIMER_ID2,
	LIOT_DEEPSLP_TIMER_ID3,
	LIOT_DEEPSLP_TIMER_ID4,
	LIOT_DEEPSLP_TIMER_ID5,
    LIOT_DEEPSLP_TIMER_MAX_NUM,
}Liot_SleepTimerID_e;

2. Parameters

• LIOT_DEEPSLP_TIMER_ID0: Low power timer ID 0

• LIOT_DEEPSLP_TIMER_ID1: Low power timer ID 1

• LIOT_DEEPSLP_TIMER_ID2: Low power timer ID 2

• LIOT_DEEPSLP_TIMER_ID3: Low power timer ID 3

• LIOT_DEEPSLP_TIMER_ID4: Low power timer ID 4

• LIOT_DEEPSLP_TIMER_ID5: Low power timer ID 5

3. Description

• LIOT_DEEPSLP_TIMER_ID0 and LIOT_DEEPSLP_TIMER_ID1 are AON timers. These timers become invalid after system reset. Maximum timeout is 2.5 hours, and these 2 timers do NOT write to FLASH.

• LIOT_DEEPSLP_TIMER_ID2 ~ LIOT_DEEPSLP_TIMER_ID5 are deep sleep timers. Maximum timeout is 740 hours, and these timers write to FLASH. Pay attention when using them. These timers perform FLASH erase/write operations, and Flash has an erase/write lifecycle. If developers frequently start/stop these timers in loops, the module may be damaged within months. High-frequency (such as second-level) cyclic calls are strictly prohibited. They should only be used for long-period wake-up tasks.

3.4 liot_sleep_errcode_e

Low power interface error code enumeration options.

1. Declaration

typedef enum{
  LIOT_SLEEP_SUCCESS             = LIOT_SUCCESS,
  LIOT_SLEEP_INVALID_PARAM       = (LIOT_COMPONENT_PM_SLEEP << 16) | 1000,
  LIOT_SLEEP_LOCK_CREATE_FAIL    = (LIOT_COMPONENT_PM_SLEEP << 16) | 1001,
  LIOT_SLEEP_LOCK_DELETE_FAIL    = (LIOT_COMPONENT_PM_SLEEP << 16) | 1002,
  LIOT_SLEEP_LOCK_LOCK_FAIL      = (LIOT_COMPONENT_PM_SLEEP << 16) | 1003,
  LIOT_SLEEP_LOCK_UNLOCK_FAIL    = (LIOT_COMPONENT_PM_SLEEP << 16) | 1004,
  LIOT_SLEEP_LOCK_AUTOSLEEP_FAIL = (LIOT_COMPONENT_PM_SLEEP << 16) | 1005,
  LIOT_SLEEP_PARAM_SAVE_FAIL     = (LIOT_COMPONENT_PM_SLEEP << 16) | 1006,
} liot_sleep_errcode_e;

2. Parameters

• LIOT_SLEEP_SUCCESS: Execution successful

• LIOT_SLEEP_INVALID_PARAM: Invalid parameter

• LIOT_SLEEP_LOCK_CREATE_FAIL: Sleep handle creation failed

• LIOT_SLEEP_LOCK_DELETE_FAIL: Sleep handle deletion failed

• LIOT_SLEEP_LOCK_LOCK_FAIL: Sleep handle vote failed

• LIOT_SLEEP_LOCK_UNLOCK_FAIL: Sleep handle unvote failed

• LIOT_SLEEP_LOCK_AUTOSLEEP_FAIL: Setting automatic entry into sleep mode failed

• LIOT_SLEEP_PARAM_SAVE_FAIL: Saving parameters to NV failed

4 Detailed API Functions

4.1 DeepSlpTimerCb_Func

Low power function timeout callback function. Note: Time-consuming operations cannot be performed in this function.

1. Declaration

typedef void (*DeepSlpTimerCb_Func)(Liot_SleepTimerID_e timeid);

2. Parameters

• timeid: [In] Low power timer ID, please refer to Section 3.3.

3. Return Value

• void

4.2 Liot_SleepSetMode

This function is used to set the device sleep mode. After setting the sleep mode, it will not immediately enter low power mode. The system will internally perform a voting check, and only enters low power mode when all votes “allow”. The setting becomes invalid after system reset.

1. Declaration

liot_sleep_errcode_e Liot_SleepSetMode(LiotSleepModeCfg_t *cfg);

2. Parameters

• cfg: [In] Sleep mode configuration.

3. Return Value

• liot_sleep_errcode_e: Execution result code, please refer to Section 3.4.

4.3 Liot_SleepTimerStart

This function is used to start the low power timer.

1. Declaration

liot_sleep_errcode_e Liot_SleepTimerStart(Liot_SleepTimerID_e timeid, uint32_t timeout, DeepSlpTimerCb_Func cb);

2. Parameters

• timeid: [In] Low power timer ID, please refer to Section 3.3. If customers frequently call timers that write to Flash (ID2-5), it will cause hardware damage.

• timeout: [In] Low power timer timeout value. Different timer IDs have different maximum times that can be set. Please choose according to your business requirements, please refer to Section 3.3.

• cb: [In] Low power timer timeout callback function, please refer to Section 4.1.

3. Return Value

• liot_sleep_errcode_e: Execution result code, please refer to Section 3.4.

4.4 Liot_SleepTimerStop

This function is used to stop the low power timer.

The low power timer will automatically delete after timeout. To restart it, you need to call Start again.

1. Declaration

liot_sleep_errcode_e Liot_SleepTimerStop(Liot_SleepTimerID_e timeid);

2. Parameters

• timeid: [In] Low power timer ID, please refer to Section 3.3.

3. Return Value

• liot_sleep_errcode_e: Execution result code, please refer to Section 3.4.

4.5 Liot_SleepTimerCheck

This function is used to check if the low power timer is running.

1. Declaration

bool Liot_SleepTimerCheck(Liot_SleepTimerID_e timeid);

2. Parameters

• timeid: [In] Low power timer ID, please refer to Section 3.3.

3. Return Value

• bool: true - Low power timer is running, false - Low power timer is not running.

4.6 Liot_SleepTimerGetID

This function is used to get the timer ID that woke up the system.

Mainly used in LIOT_SLEEP_MODE_DEEP_LOW sleep mode to query the low power timer ID that woke up the system after wake-up. It has no effect in normal mode.

1. Declaration

Liot_SleepTimerID_e Liot_SleepTimerGetID(void);

2. Parameters

• void

3. Return Value

• Liot_SleepTimerID_e: Timer ID that woke up the system.

5 Code Examples

Example code reference: LSDK/example/src/demo_sleepex.c.

Running Results:

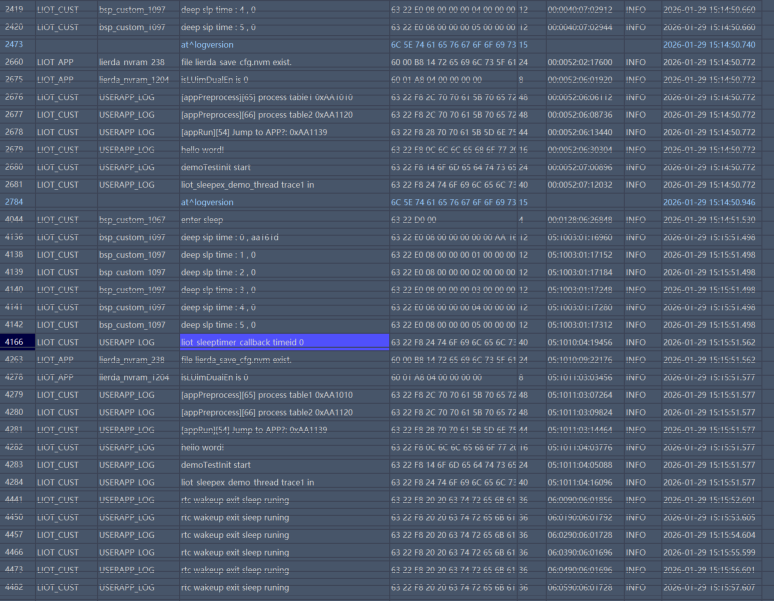

Test log for entering LIOT_SLEEP_MODE_LOW

According to the demo, first enter LIOT_SLEEP_MODE_LOW low power mode, then start a 1-minute low power timer. After wake-up, the system checks if it was woken up by the low power timer, then exits the sleep low power mode.

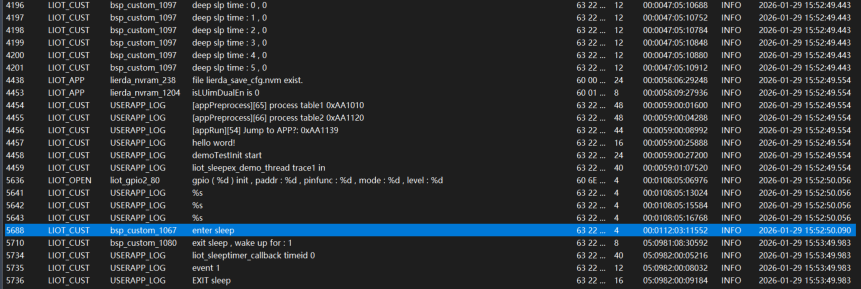

Test log for entering LIOT_SLEEP_MODE_DEEP_LOW

According to the demo, first enter LIOT_SLEEP_MODE_DEEP_LOW low power mode, then start a 1-minute low power timer. After wake-up, the system checks if it was woken up by the low power timer, then exits the sleep low power mode.

6 FAQ

• For LIOT_SLEEP_MODE_DEEP_LOW mode, when the system enters this mode, RAM will be powered off, and global variables will be cleared to zero after system wake-up. If you need to save critical data, it is recommended to use the file system for storage, and restore the variables after system wake-up.
